Low Engine Oil Level Indicator Always On

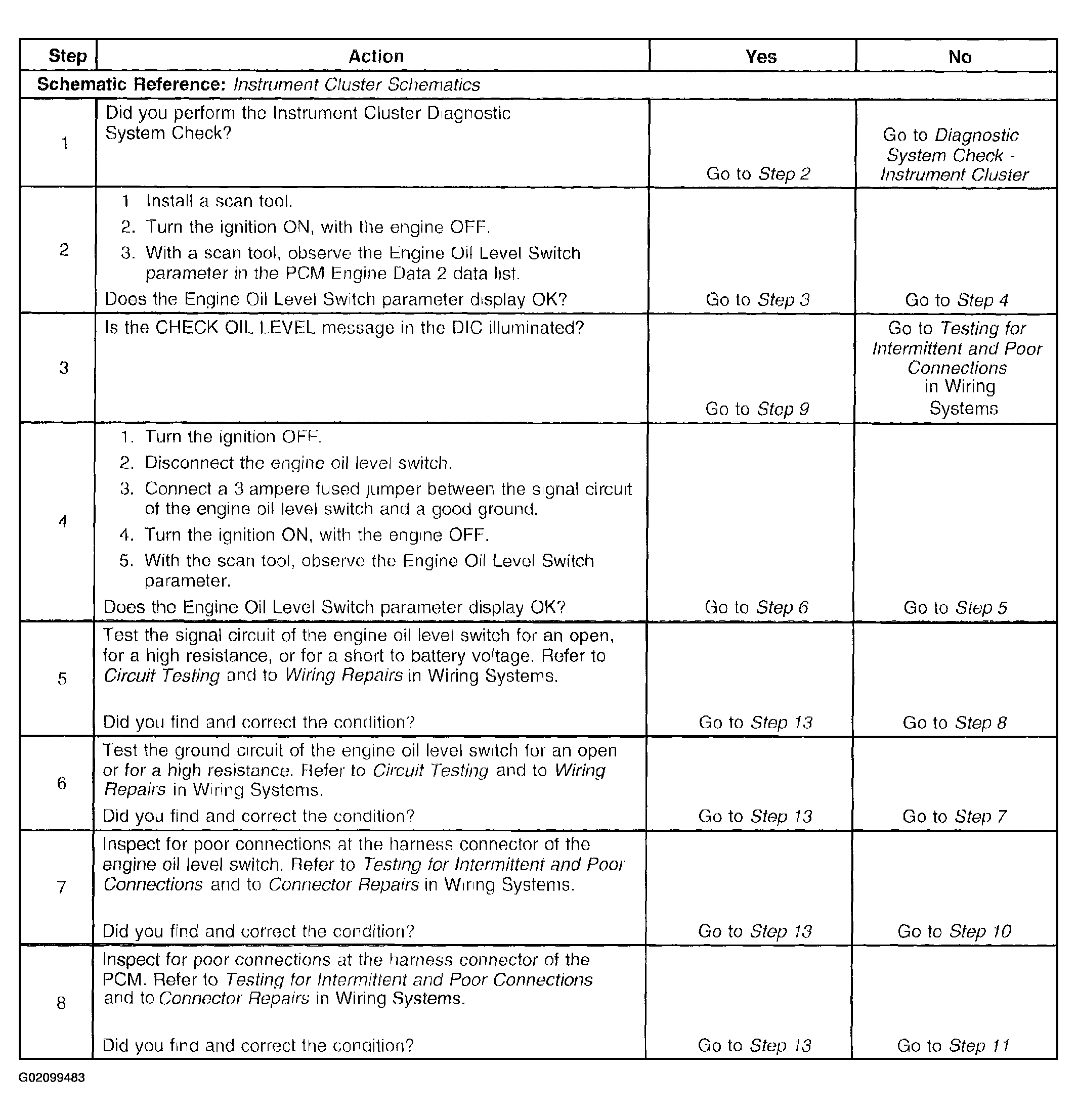

Fig 1: Diagnosis Procedure - Low Engine Oil Level Indicator Always On (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

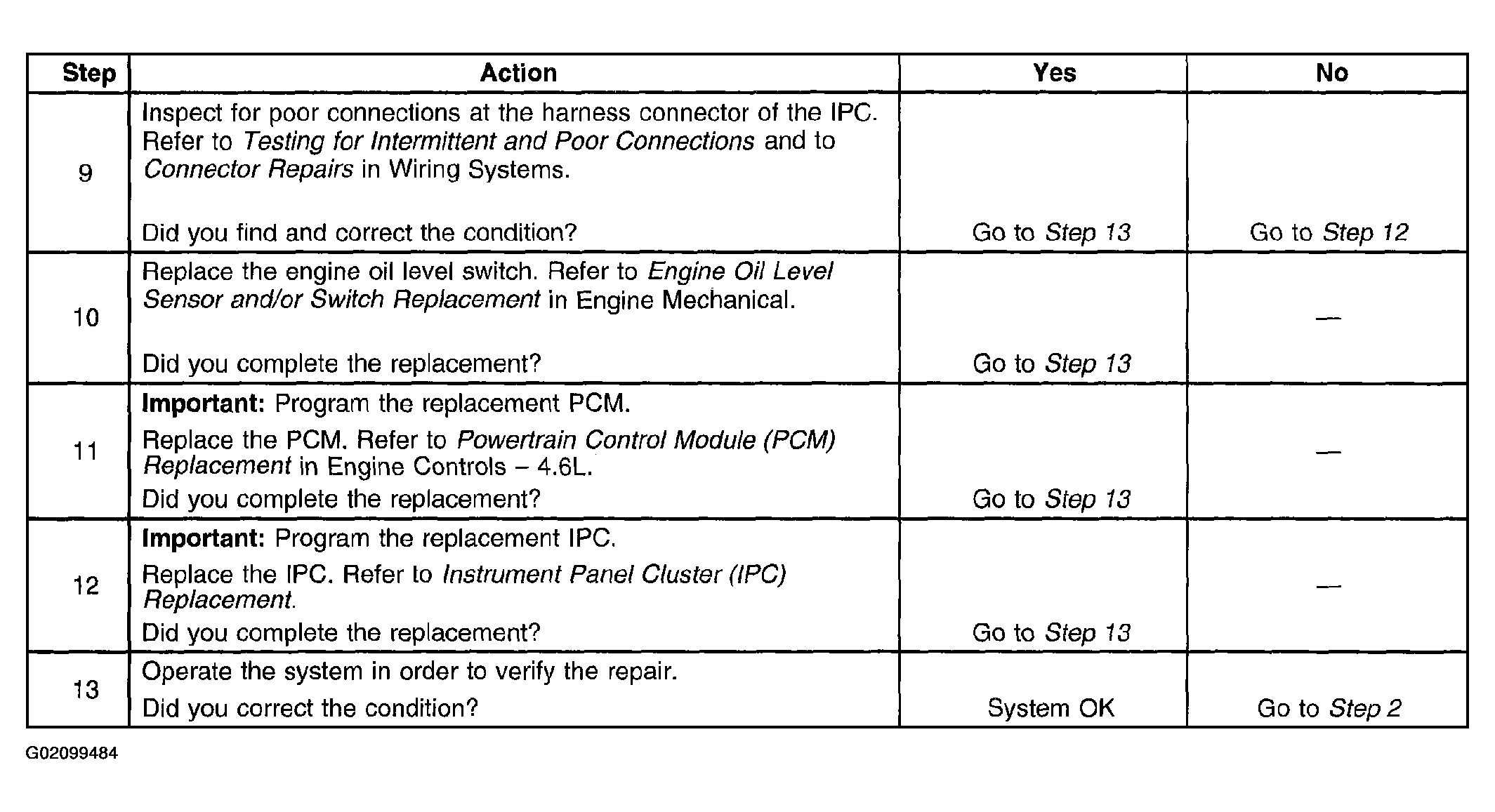

Fig 2: Diagnosis Procedure - Low Engine Oil Level Indicator Always On (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
