Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 3.   This step tests for a high resistance in the signal circuit and the low reference circuit of the fuel level sensor.
2. 13.  DTCs will set in the PCM when you perform this diagnostic table.

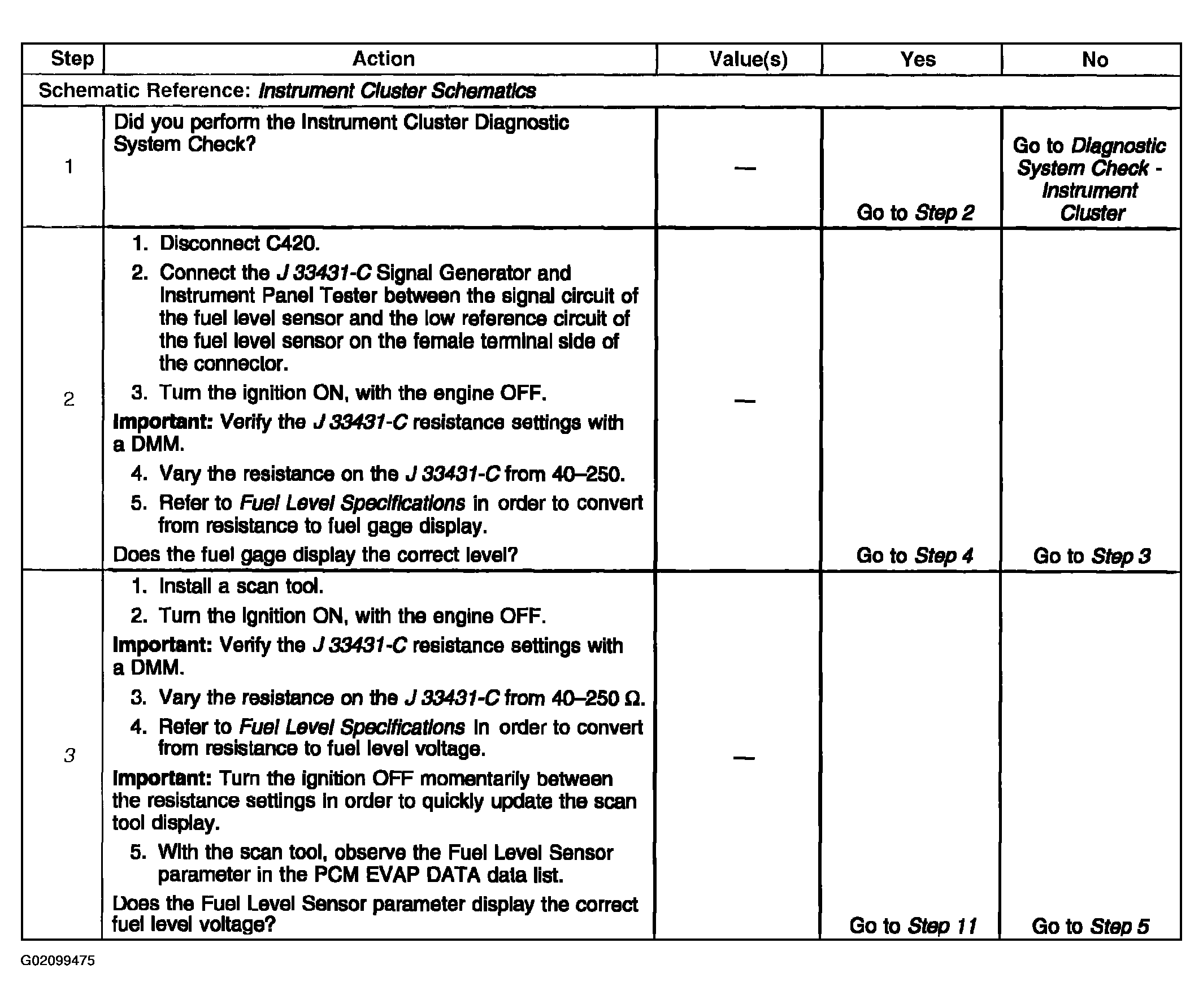

Fig 1: Diagnosis Procedure - Fuel Gage Inaccurate Or Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

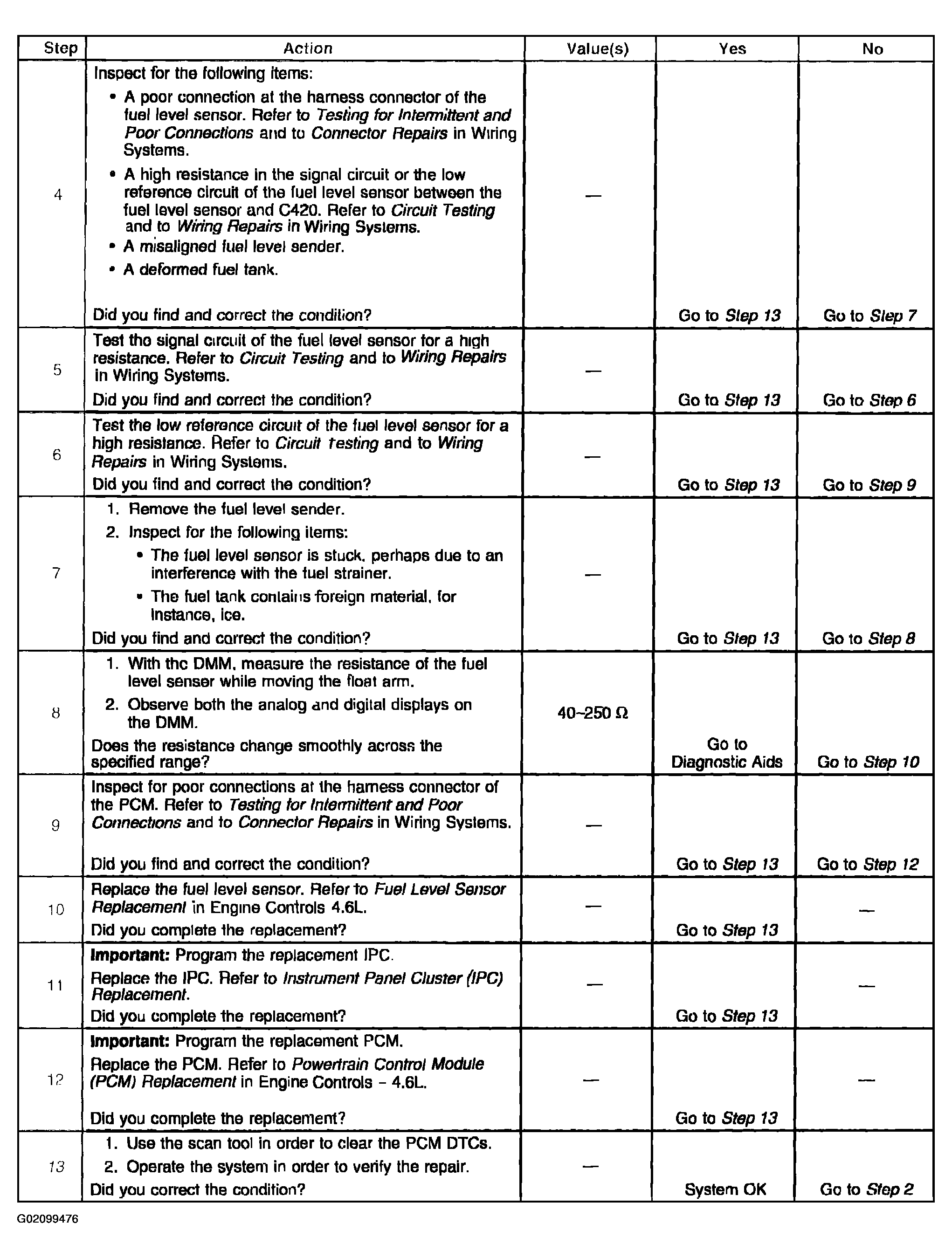

Fig 2: Diagnosis Procedure - Fuel Gage Inaccurate Or Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
