Engine Coolant Temperature Gage Inaccurate or Inoperative

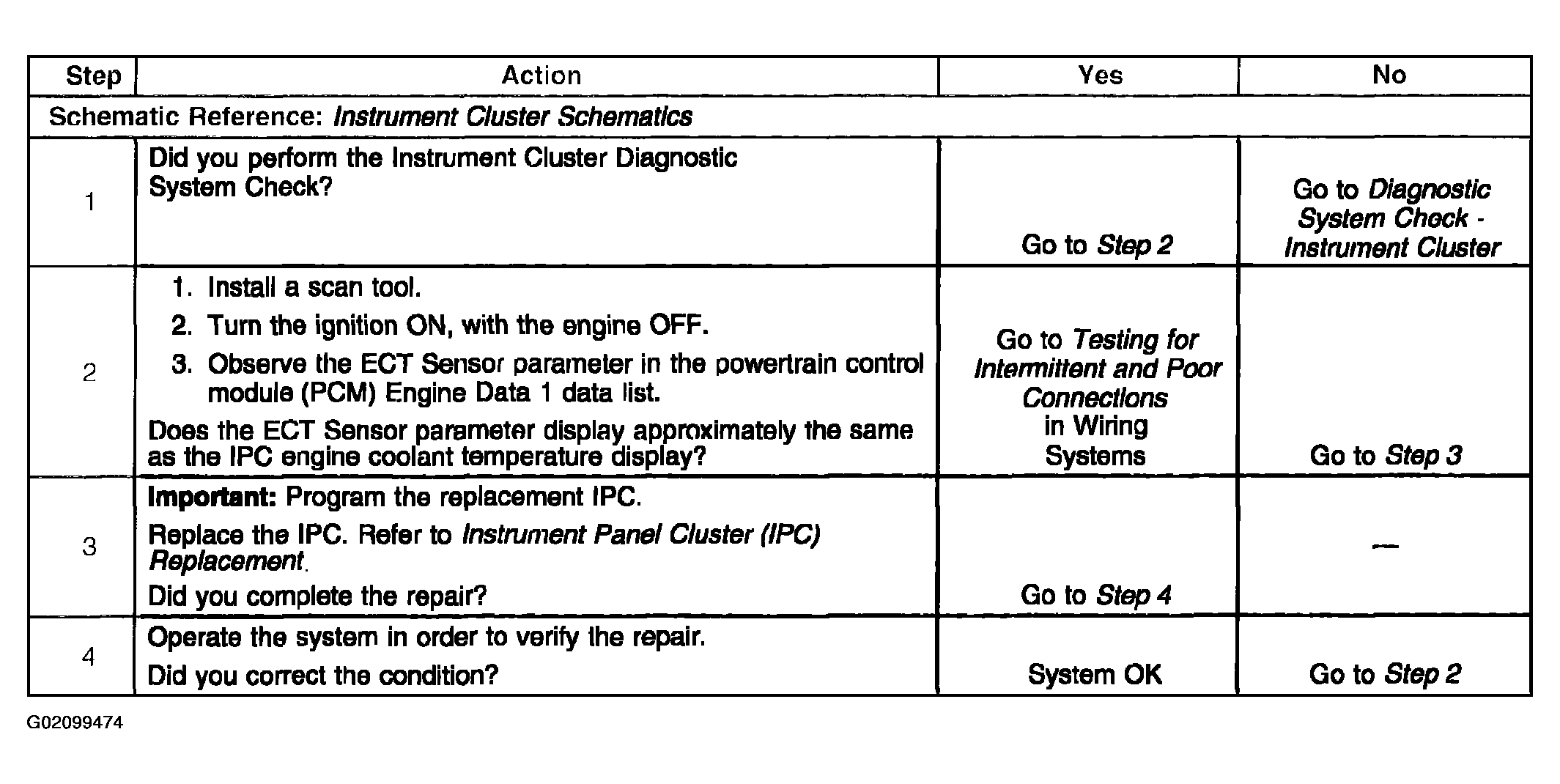

Fig 1: Engine Coolant Temperature Gage Inaccurate Or Inoperative

G02099474

Courtesy of GENERAL MOTORS CORP.
