Driver Information Center (DIC) Switch(es) Inoperative

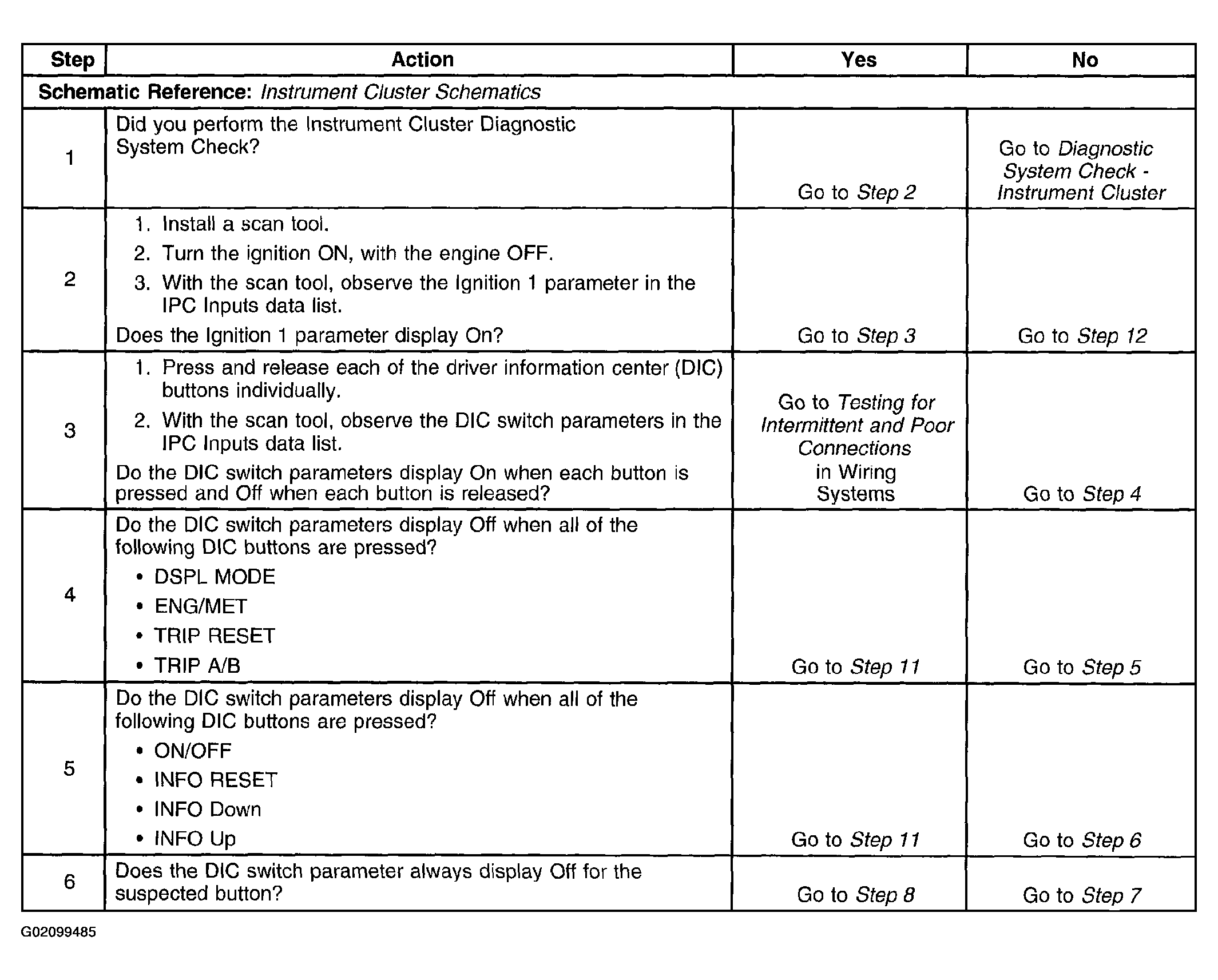

Fig 1: Diagnosis Procedure - Driver Information Center Switch(es) Inoperative (1 Of 2)
G02099485Courtesy of GENERAL MOTORS CORP.

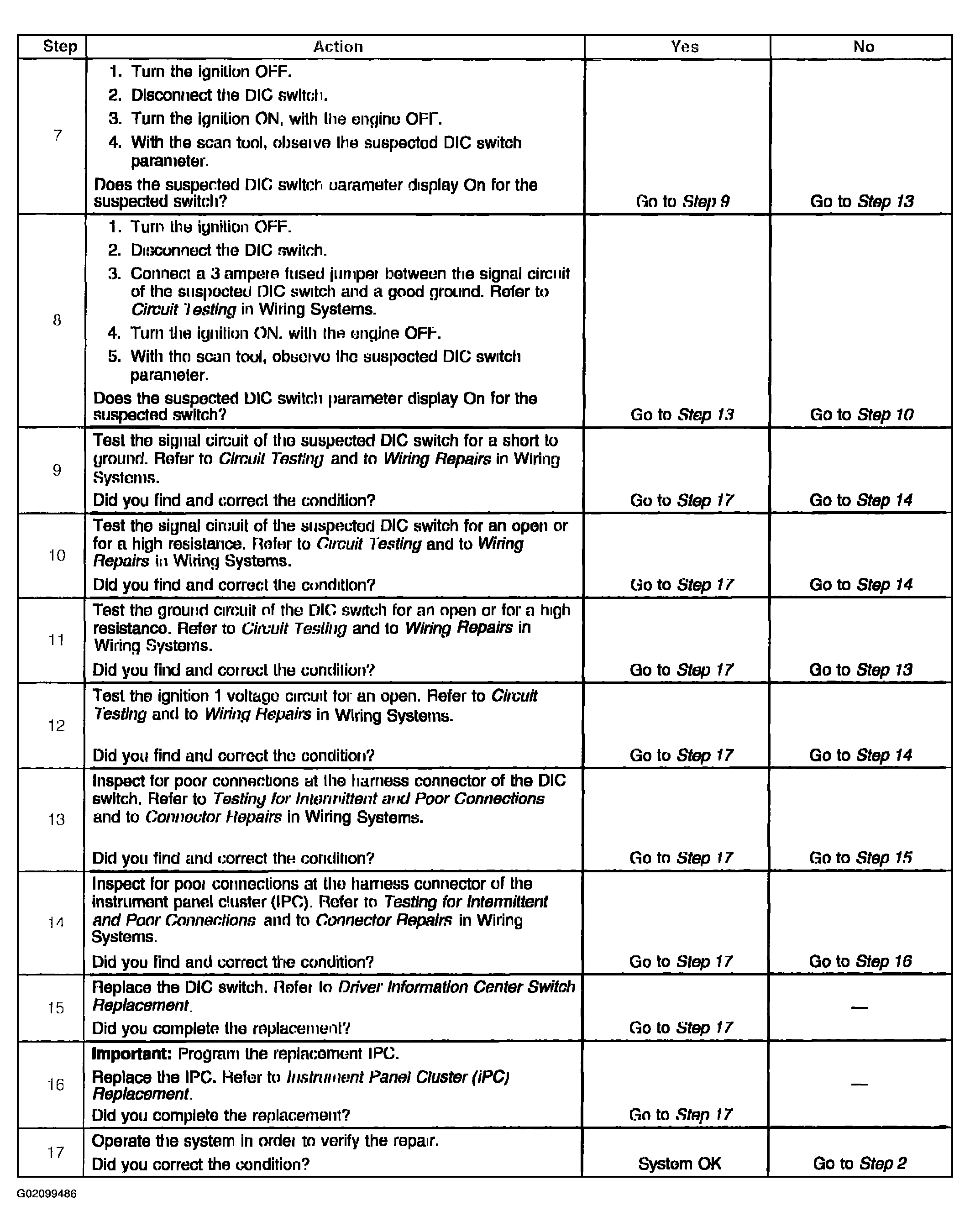

Fig 2: Diagnosis Procedure - Driver Information Center Switch(es) Inoperative (2 Of 2)
G02099486Courtesy of GENERAL MOTORS CORP.
