Home >> Cadillac >> 2003 >> DeVille Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Gages, And Console >> Diagnostic Information and Procedures >> DTC P0462: Fuel Level Sensor Signal Low >> Test Description

Test Description

The number below refers to the step number on the diagnostic table.

  1. 4.   Tests for the proper operation of the circuit in the high voltage range.

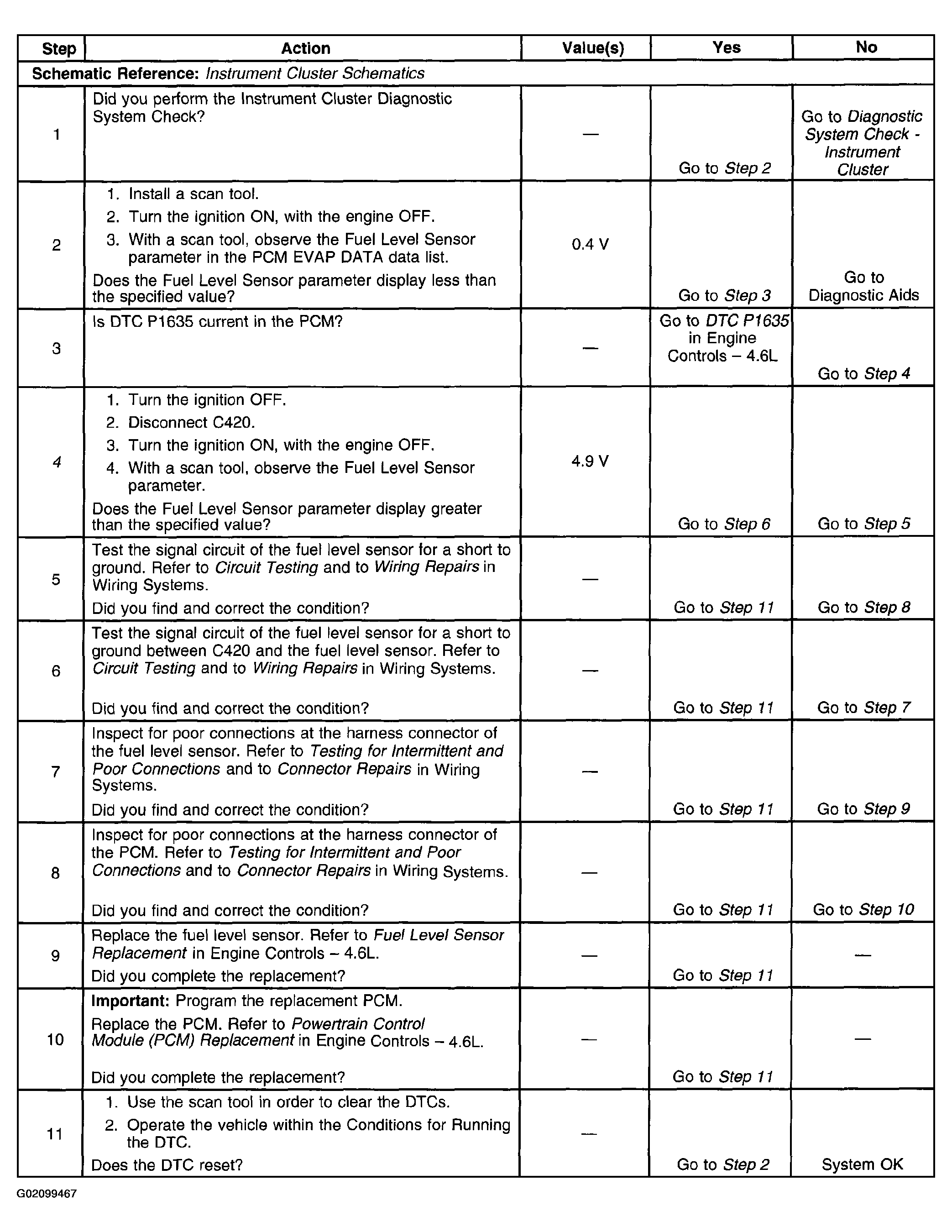

Fig 1: DTC P0462 Diagnosis Procedure
G02099467Courtesy of GENERAL MOTORS CORP.
