Chime Inoperative
Chime Inoperative

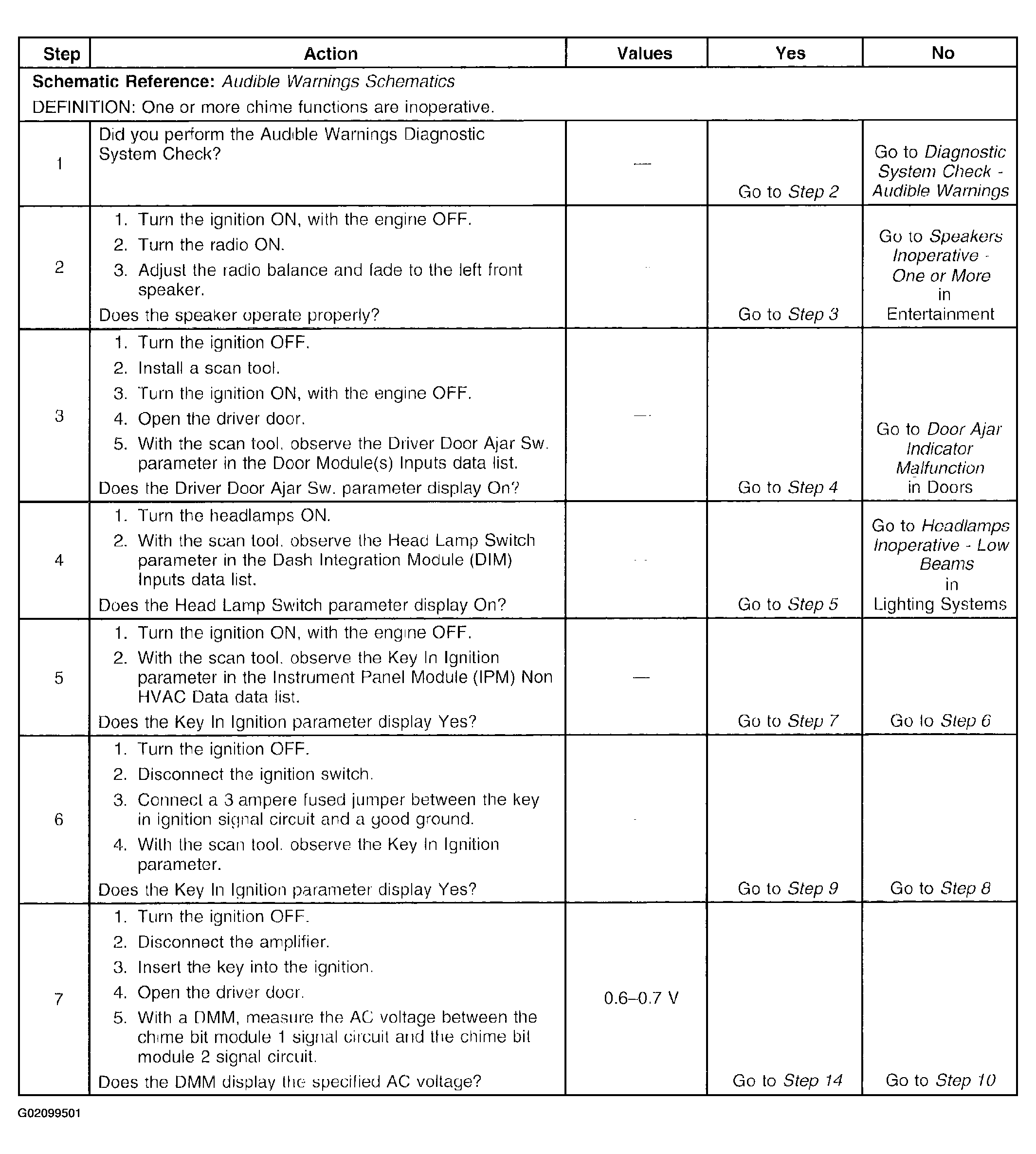

Fig 1: Diagnosis Procedure - Chime Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

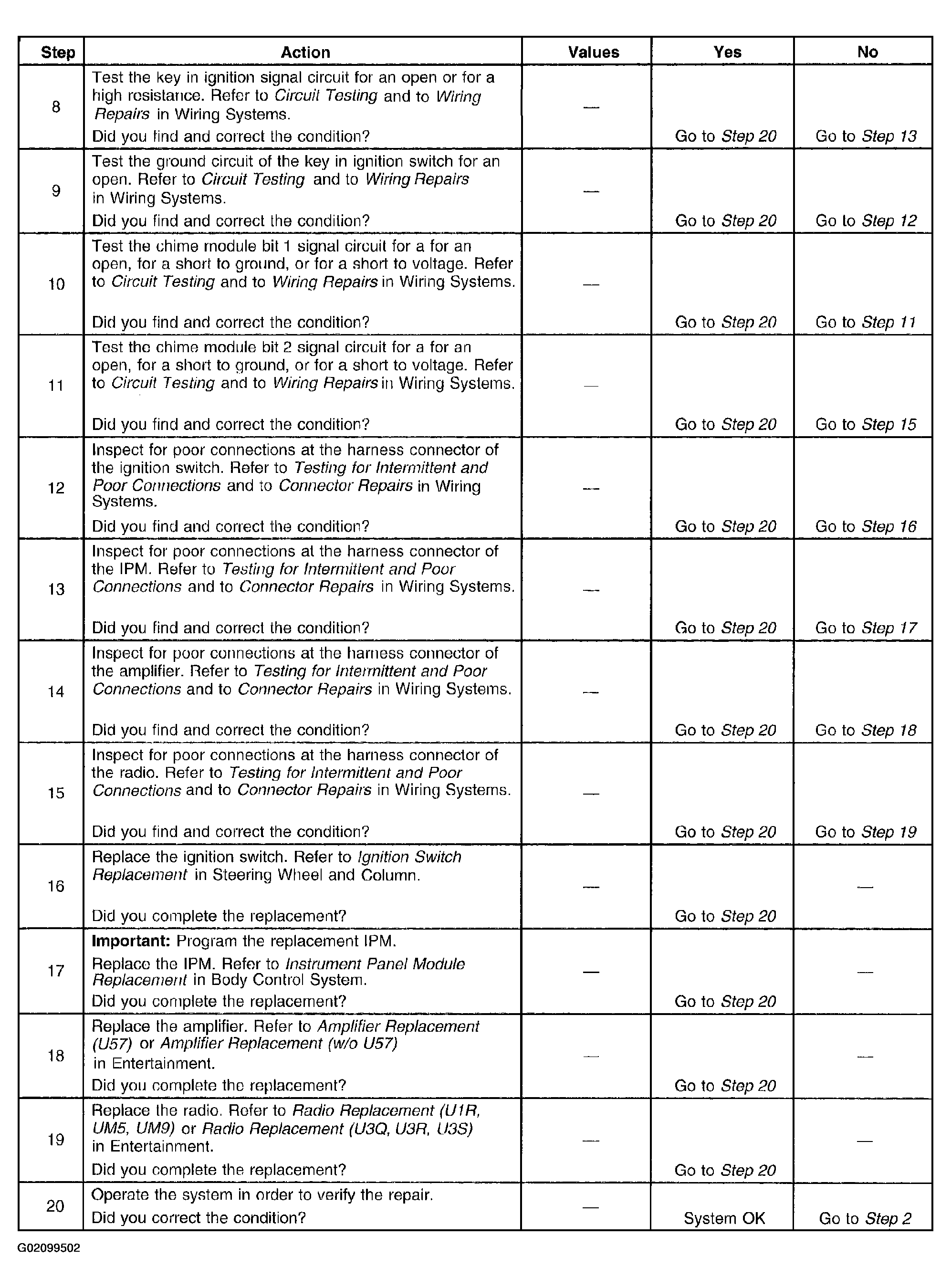

Fig 2: Diagnosis Procedure - Chime Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
