Chime Always On

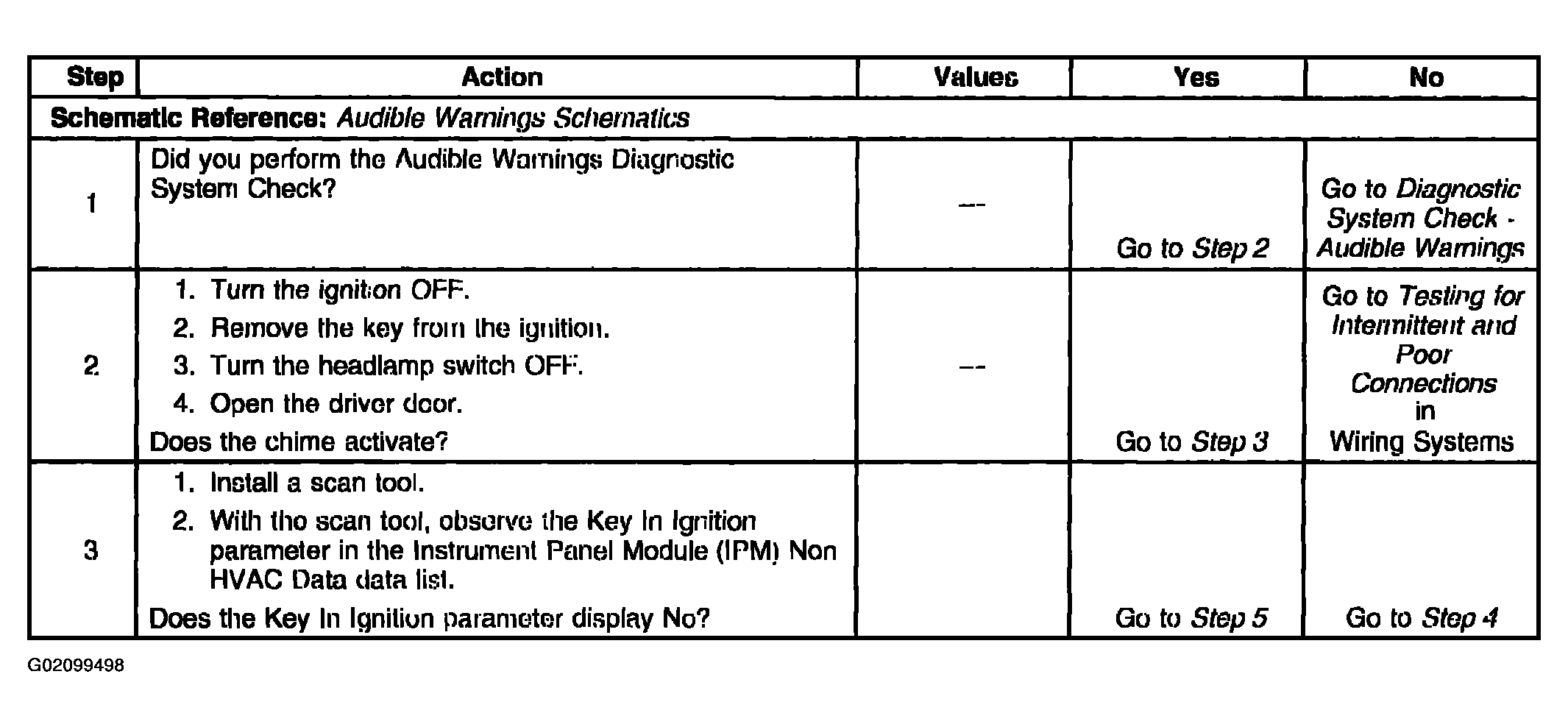

Fig 1: Diagnosis Procedure - Chime Always On (1 Of 3)
G02099498Courtesy of GENERAL MOTORS CORP.

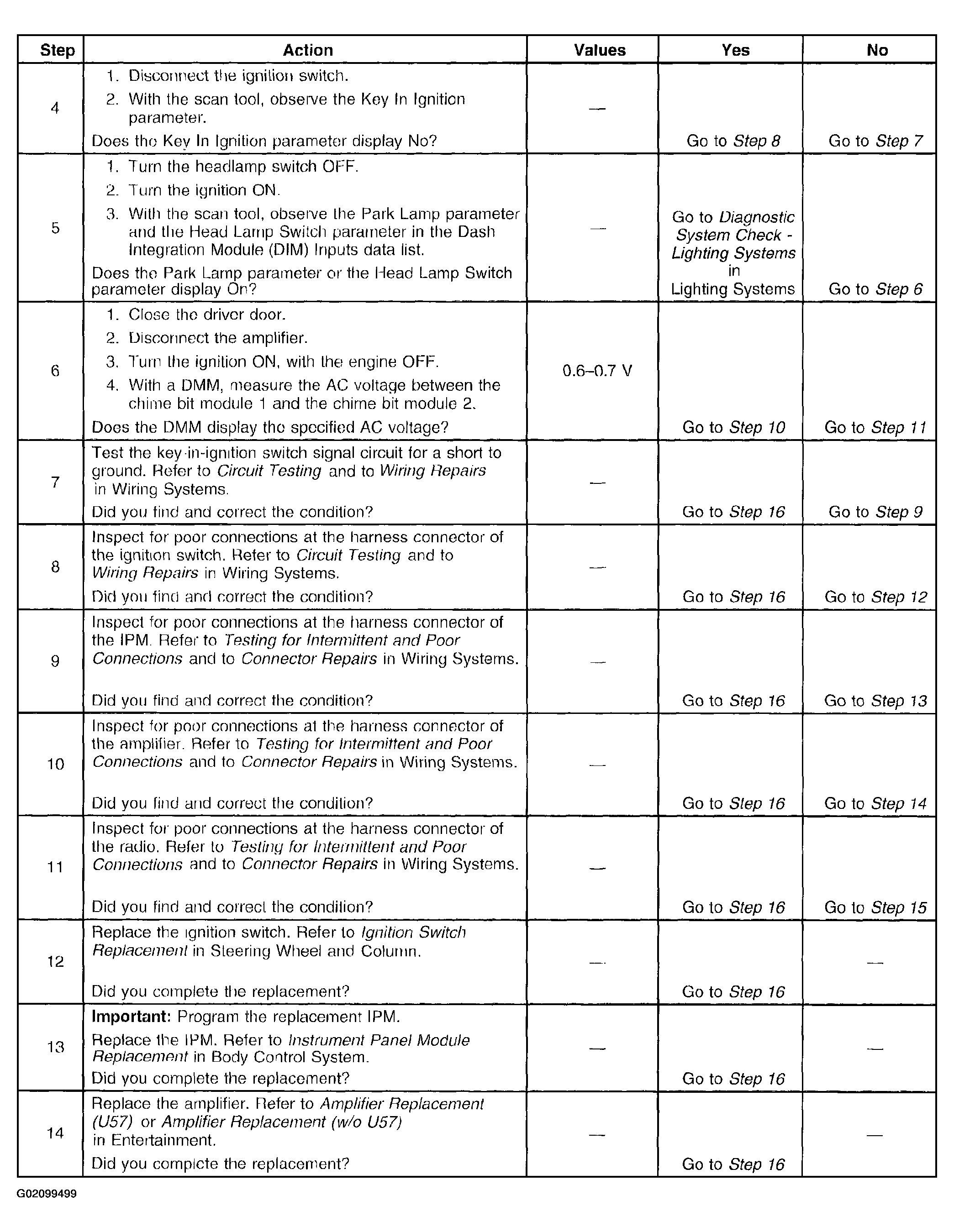

Fig 2: Diagnosis Procedure - Chime Always On (2 Of 3)
G02099499Courtesy of GENERAL MOTORS CORP.

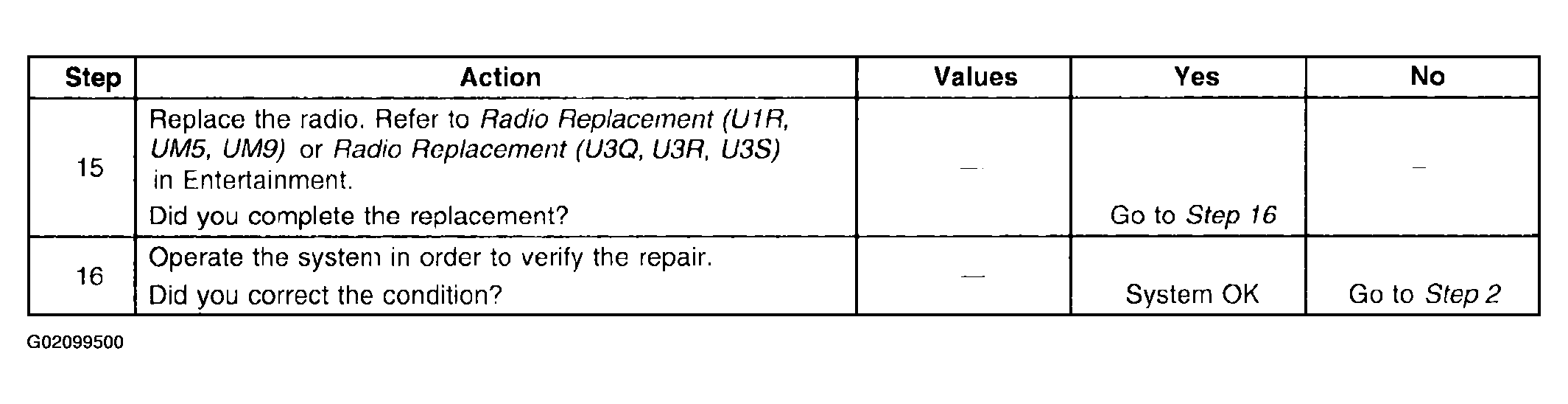

Fig 3: Diagnosis Procedure - Chime Always On (3 Of 3)
G02099500Courtesy of GENERAL MOTORS CORP.
