Instrument Panel, Gages, and Console Connector End Views

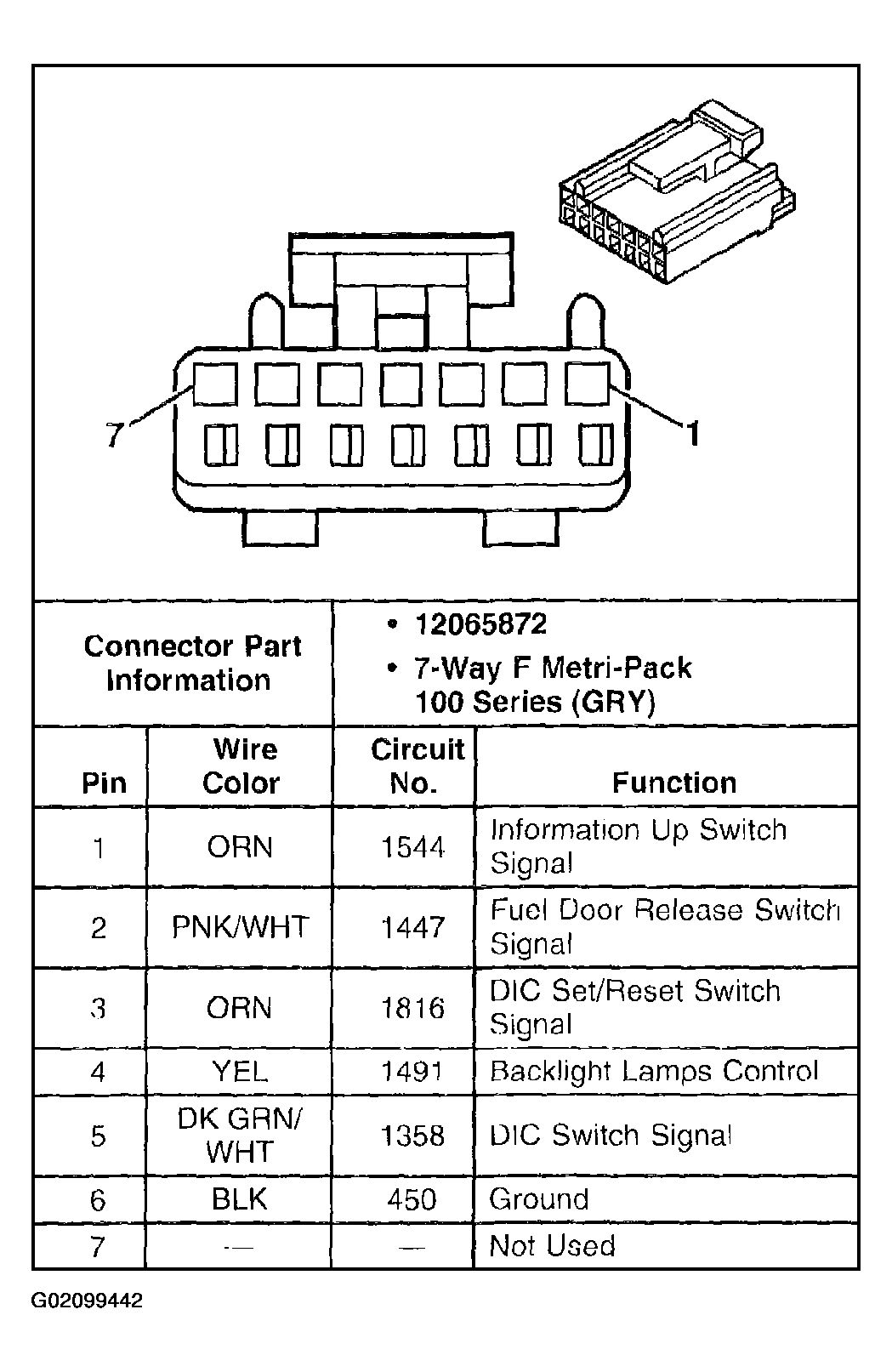

Fig 1: Identifying Driver Information Center Switch Connectors - Right

Courtesy of GENERAL MOTORS CORP.

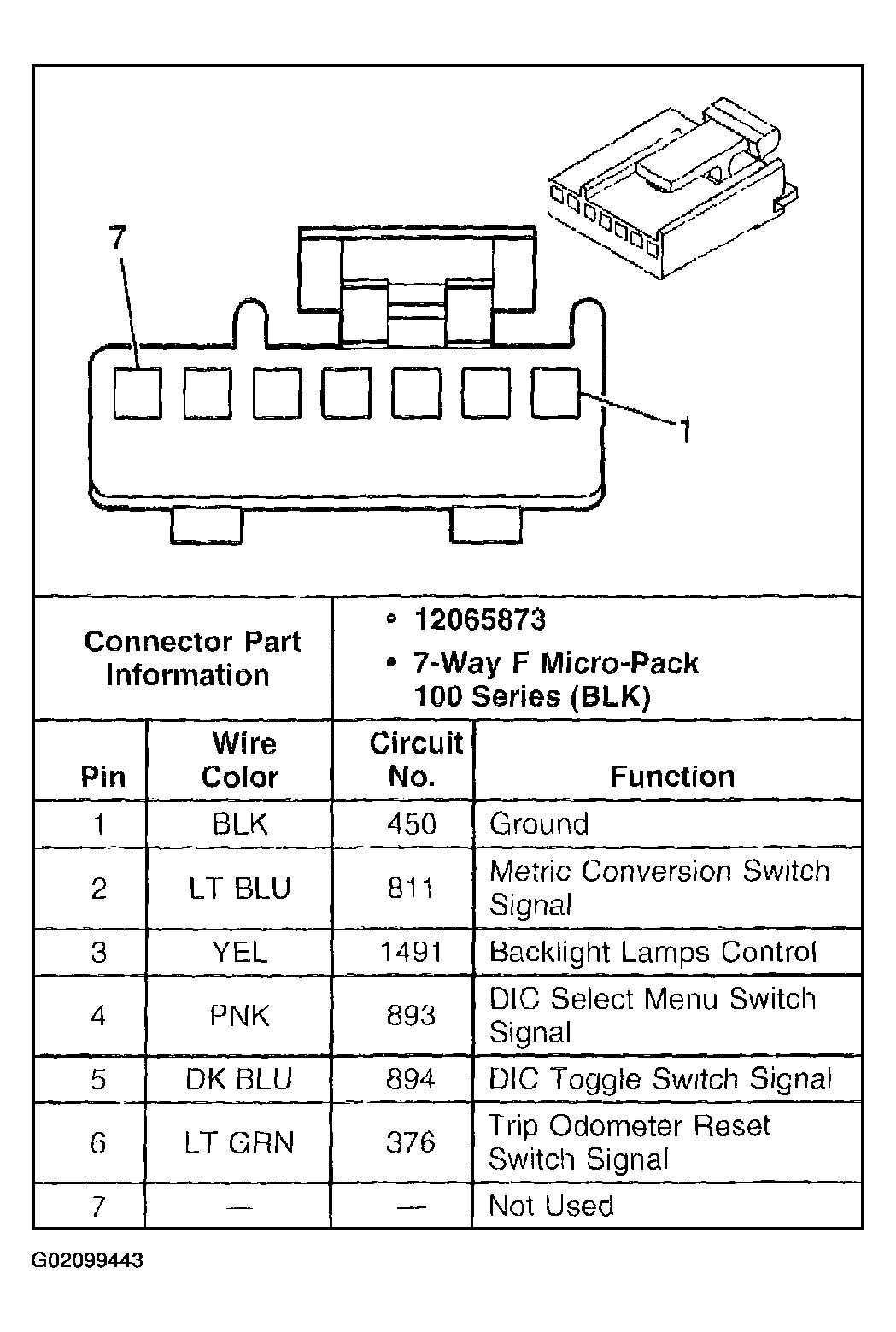

Fig 2: Identifying Driver Information Center Switch Connectors - Left

Courtesy of GENERAL MOTORS CORP.

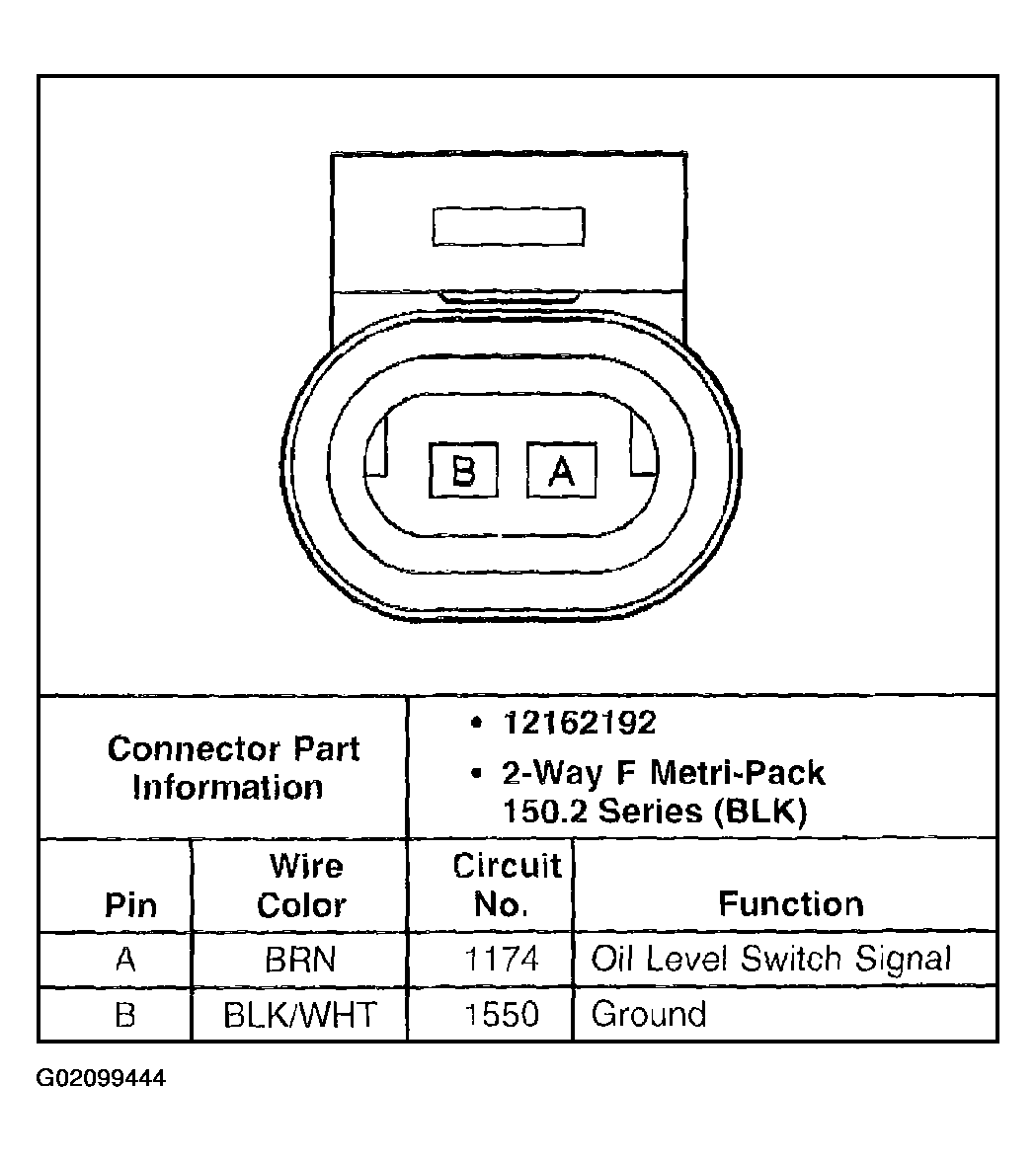

Fig 3: Identifying Engine Oil Level Switch Connectors

Courtesy of GENERAL MOTORS CORP.

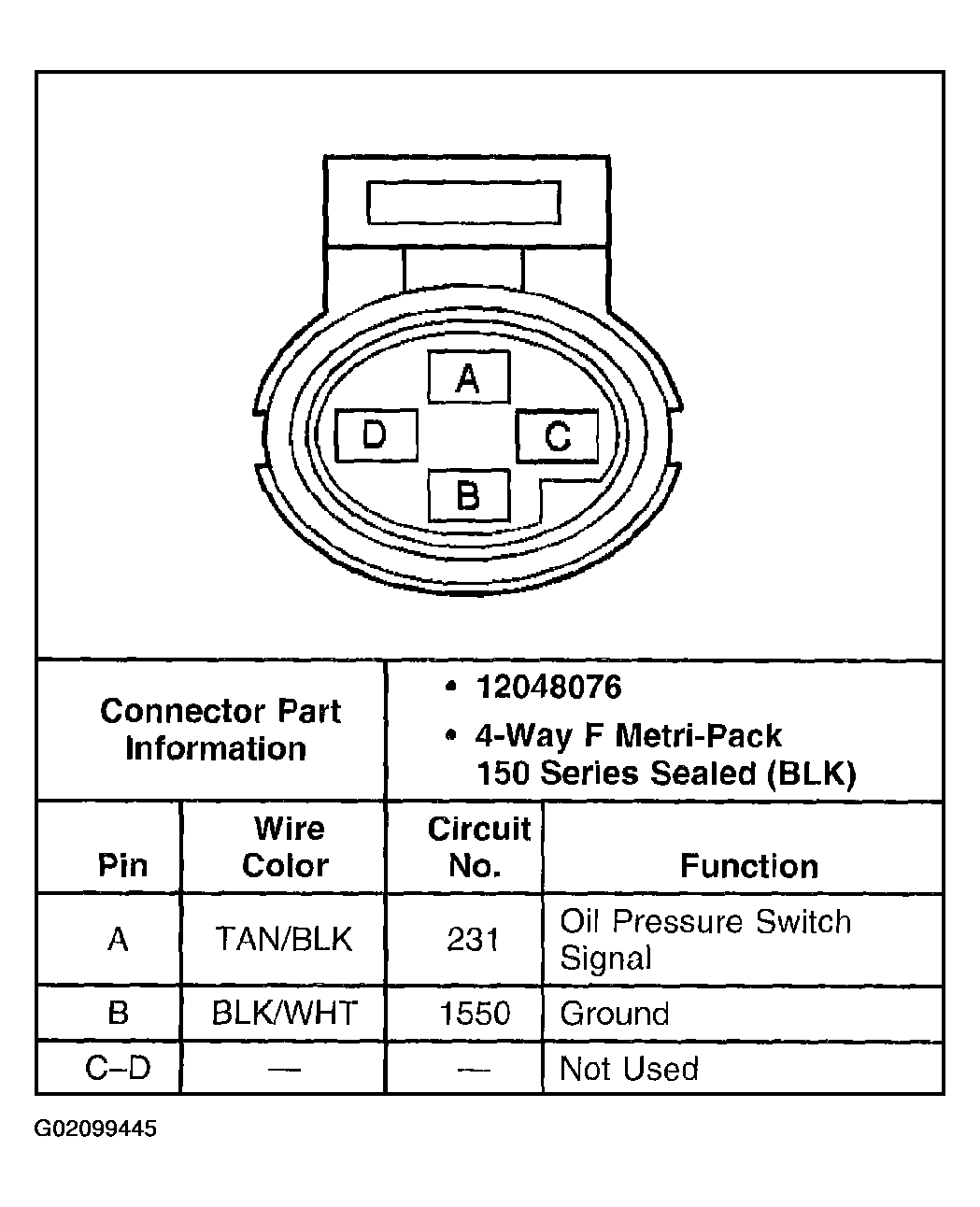

Fig 4: Identifying Engine Oil Pressure (EOP) Switch Connectors

Courtesy of GENERAL MOTORS CORP.

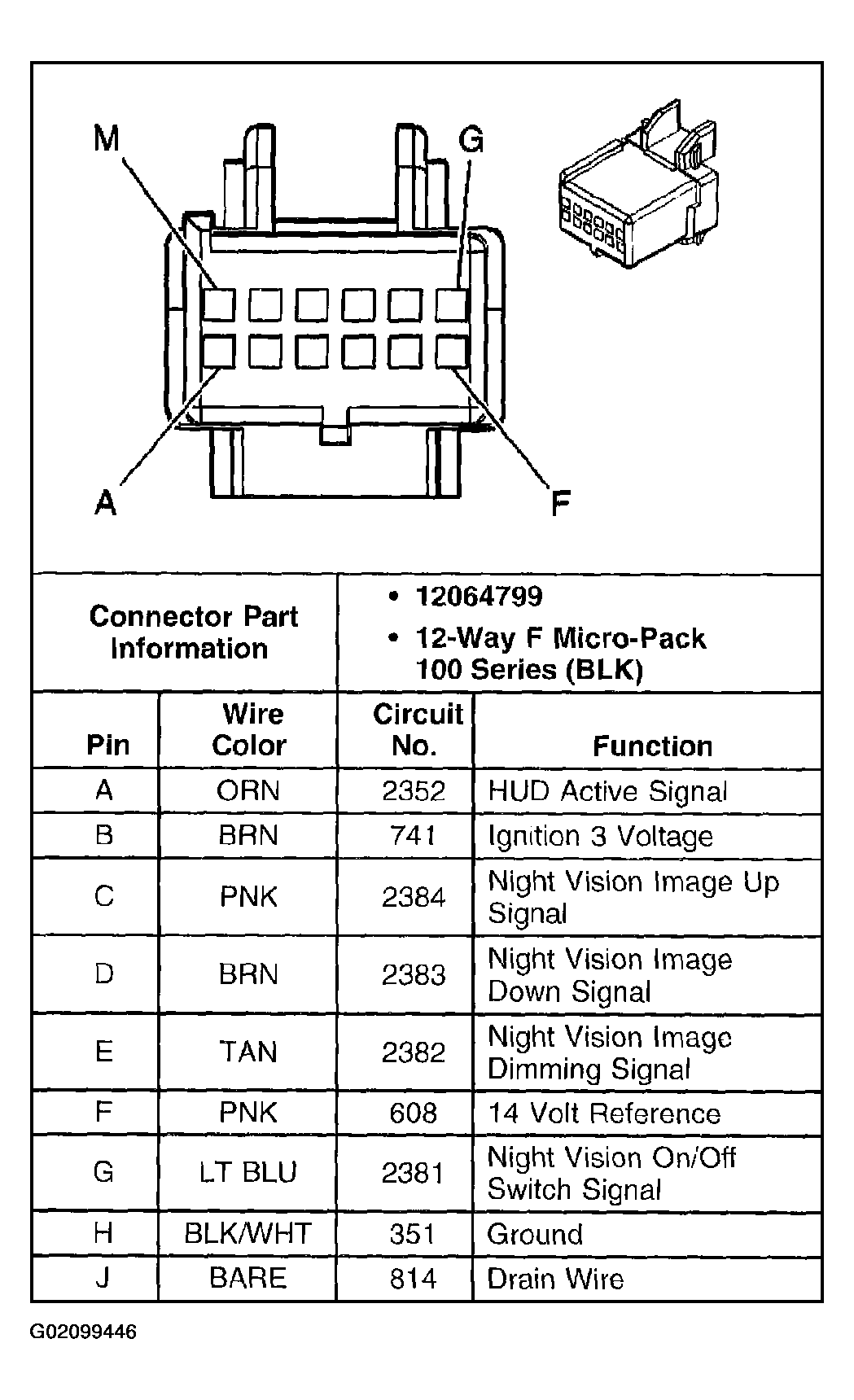

Fig 5: Identifying Head Up Display Connectors (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

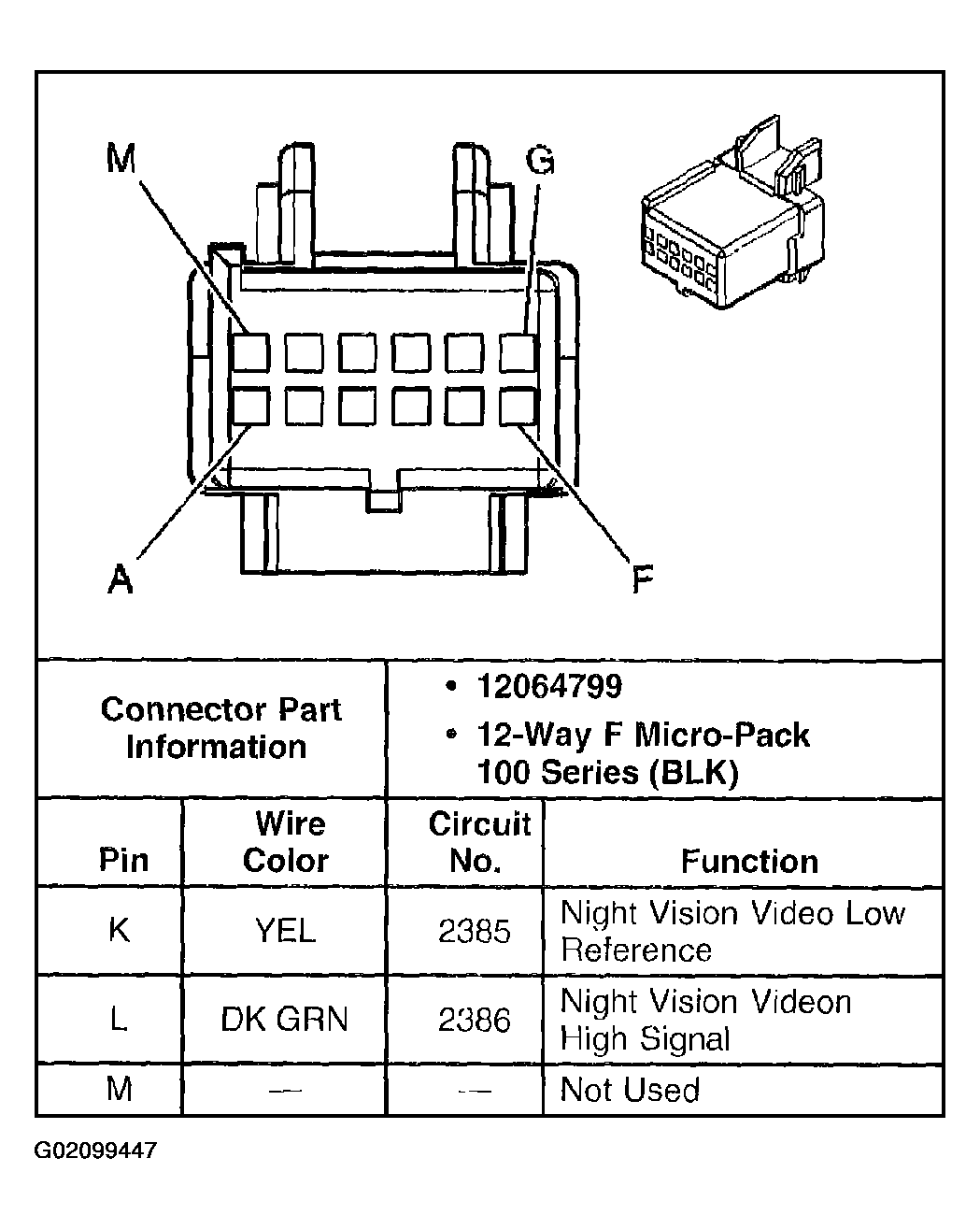

Fig 6: Identifying Head Up Display Connectors (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

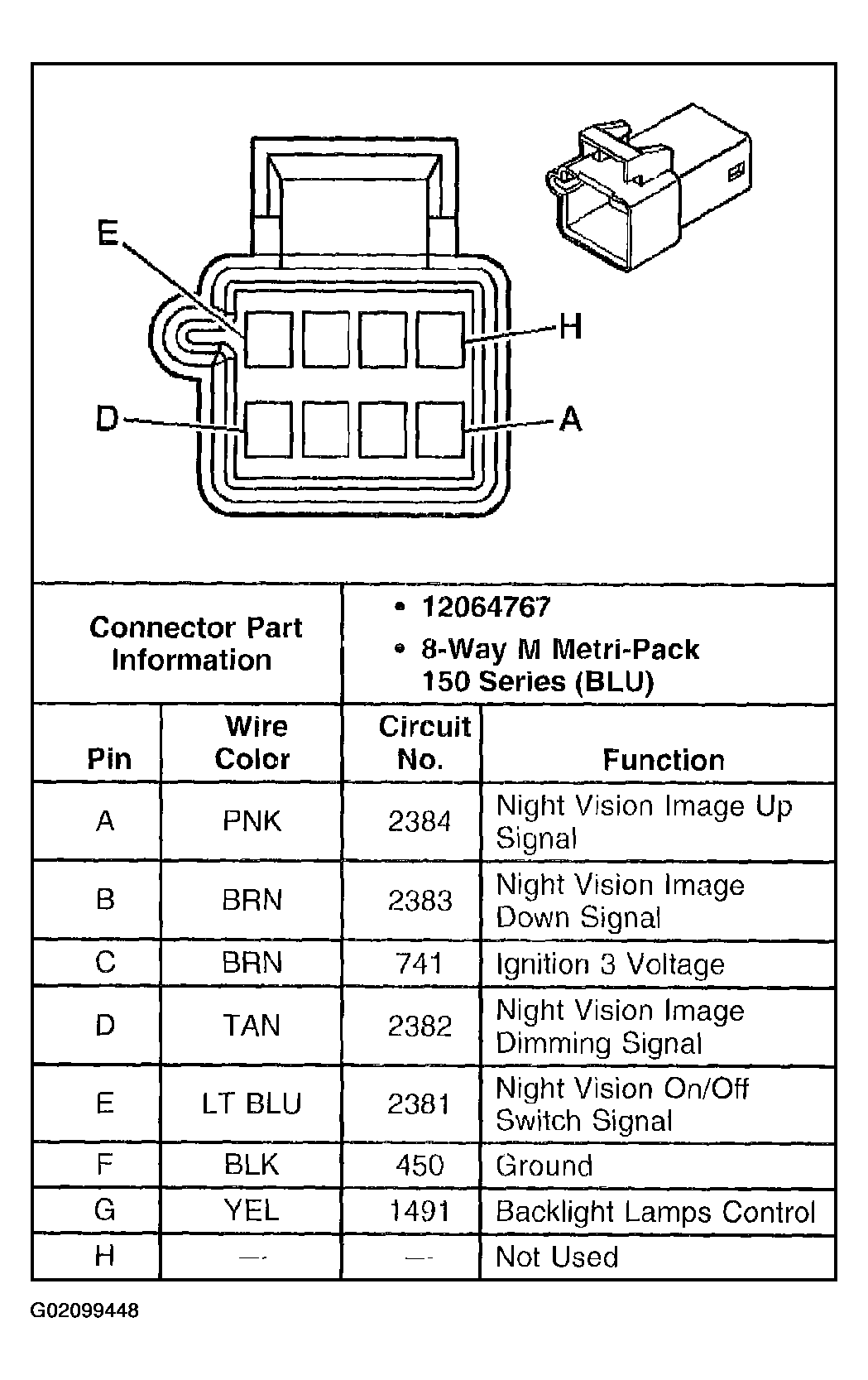

Fig 7: Identifying Head Up Display Switch Connectors

Courtesy of GENERAL MOTORS CORP.

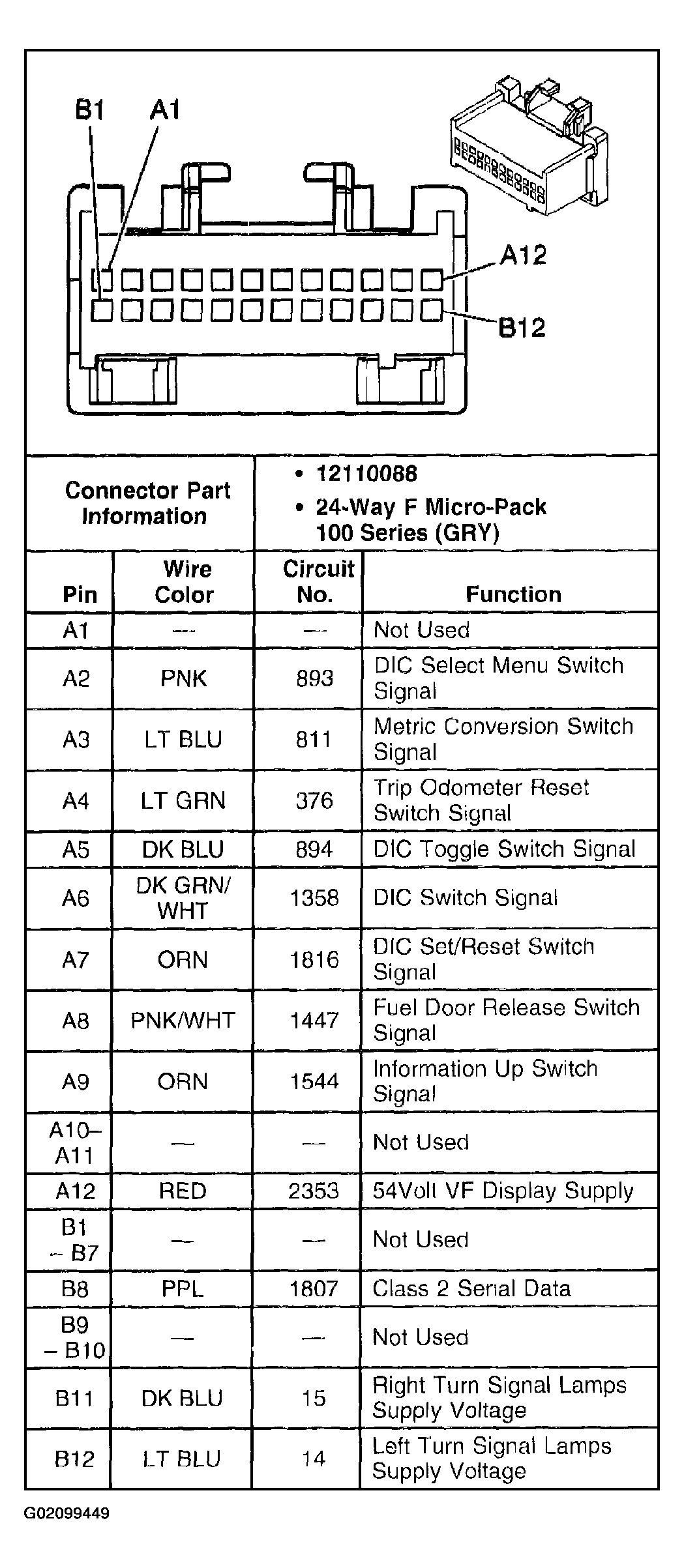

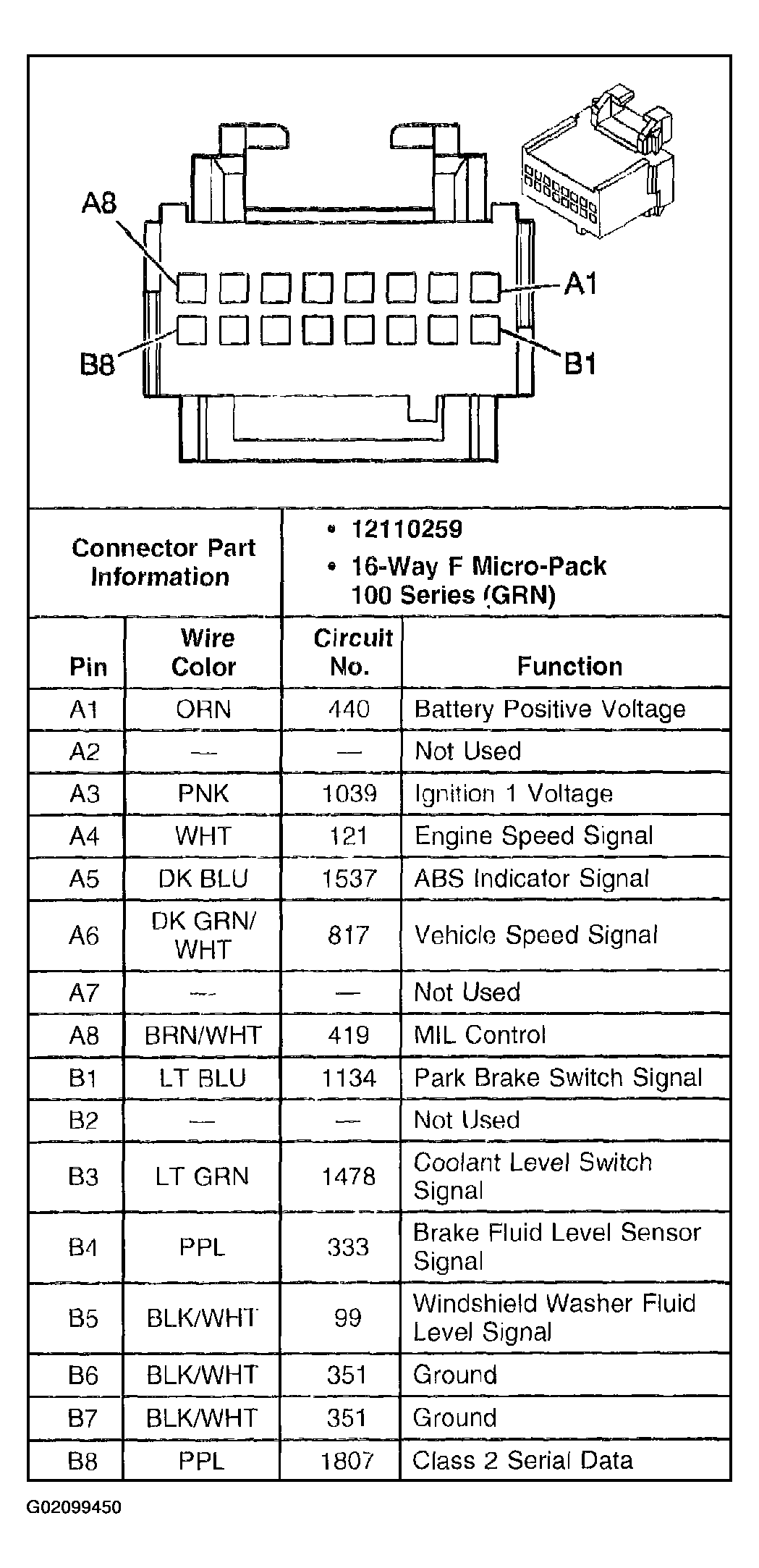

Fig 8: Identifying Instrument Panel Cluster C1 Connectors

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Instrument Panel Cluster C2 Connectors

Courtesy of GENERAL MOTORS CORP.

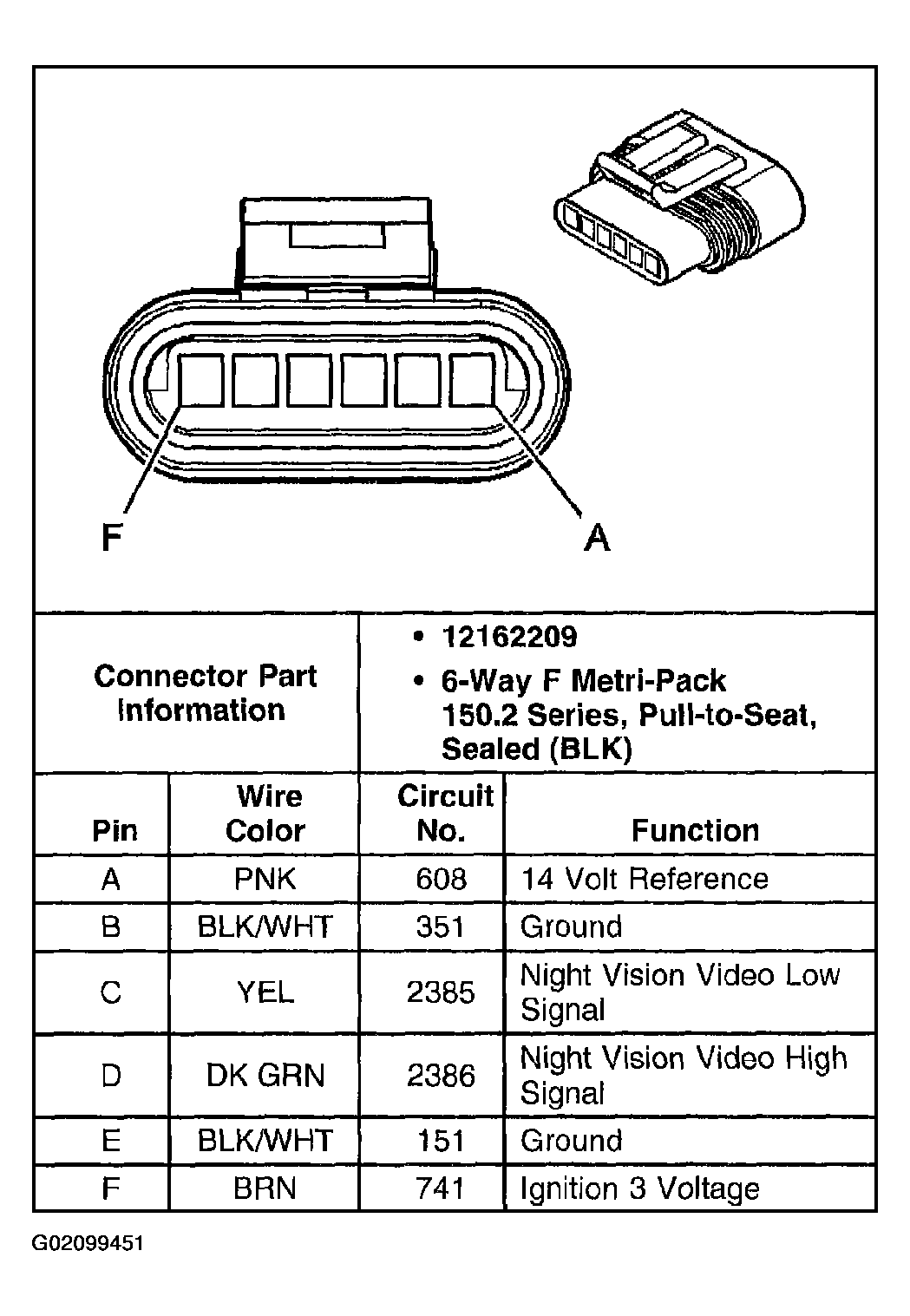

Fig 10: Identifying Night Vision Camera (Design 1) Connectors

Courtesy of GENERAL MOTORS CORP.

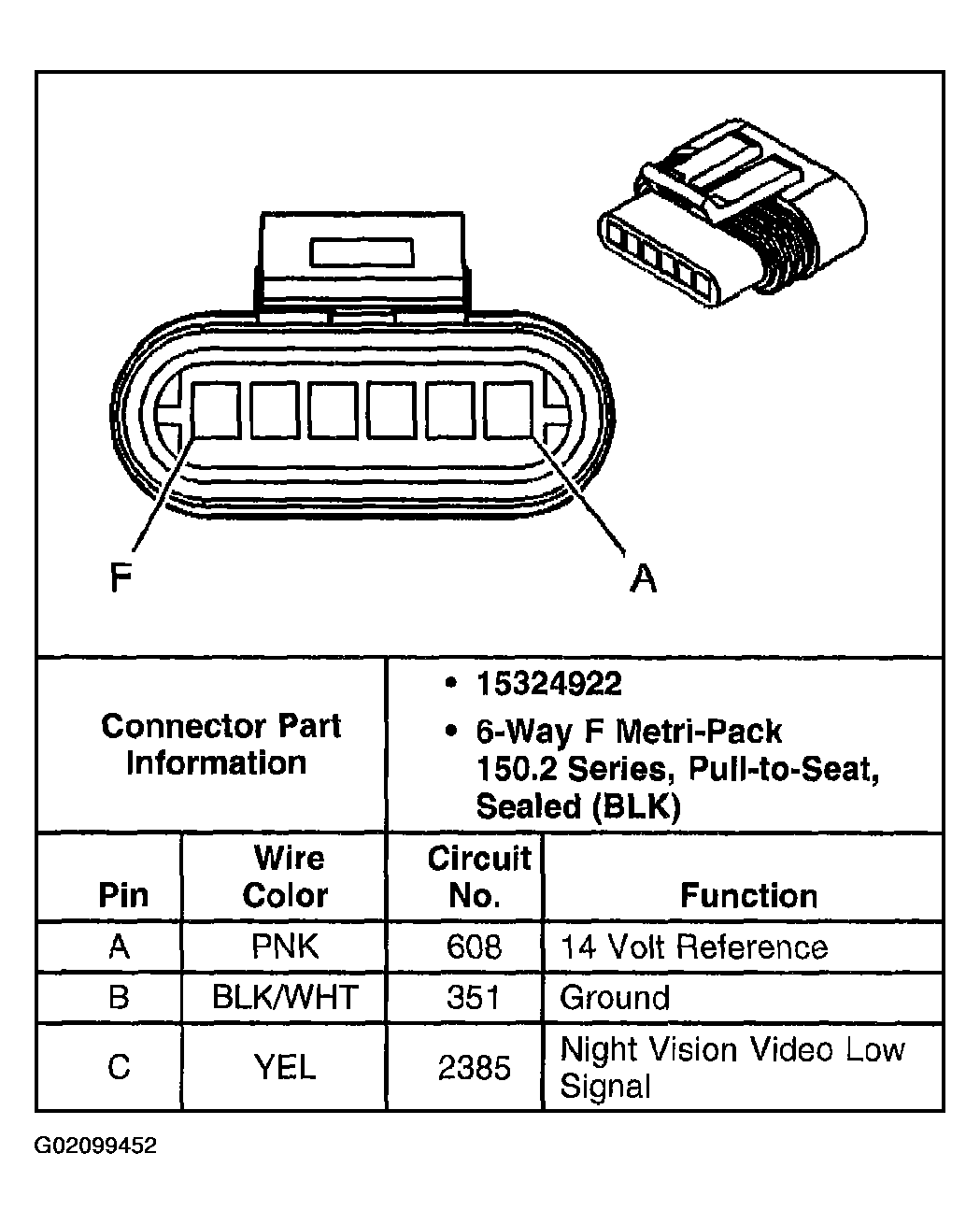

Fig 11: Identifying Night Vision Camera C1 (Design 2) Connectors (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

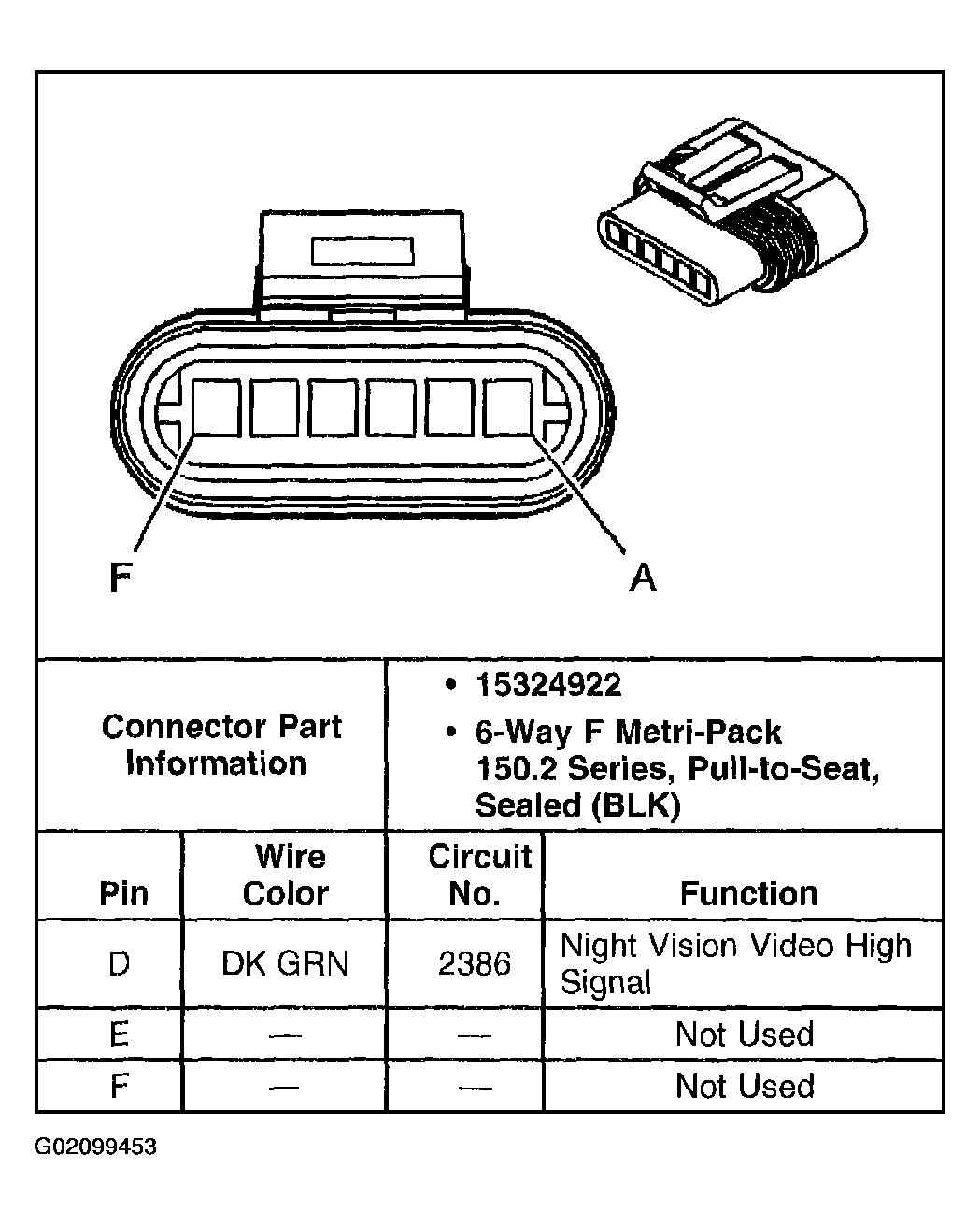

Fig 12: Identifying Night Vision Camera C1 (Design 2) Connectors (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

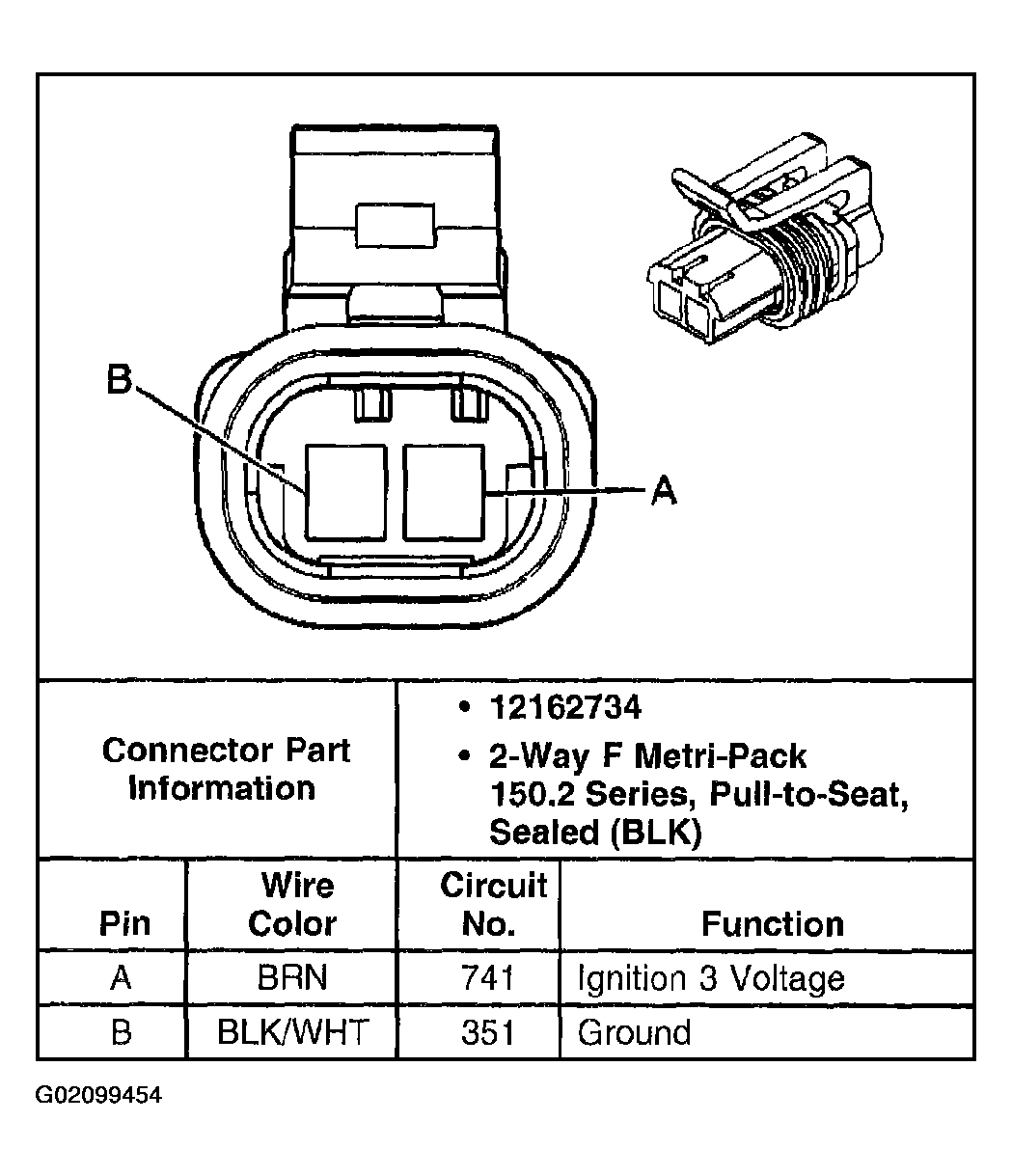

Fig 13: Identifying Night Vision Camera C2 (Design 2) Connectors

Courtesy of GENERAL MOTORS CORP.
