Instrument Panel, Gages, and Console Component Views

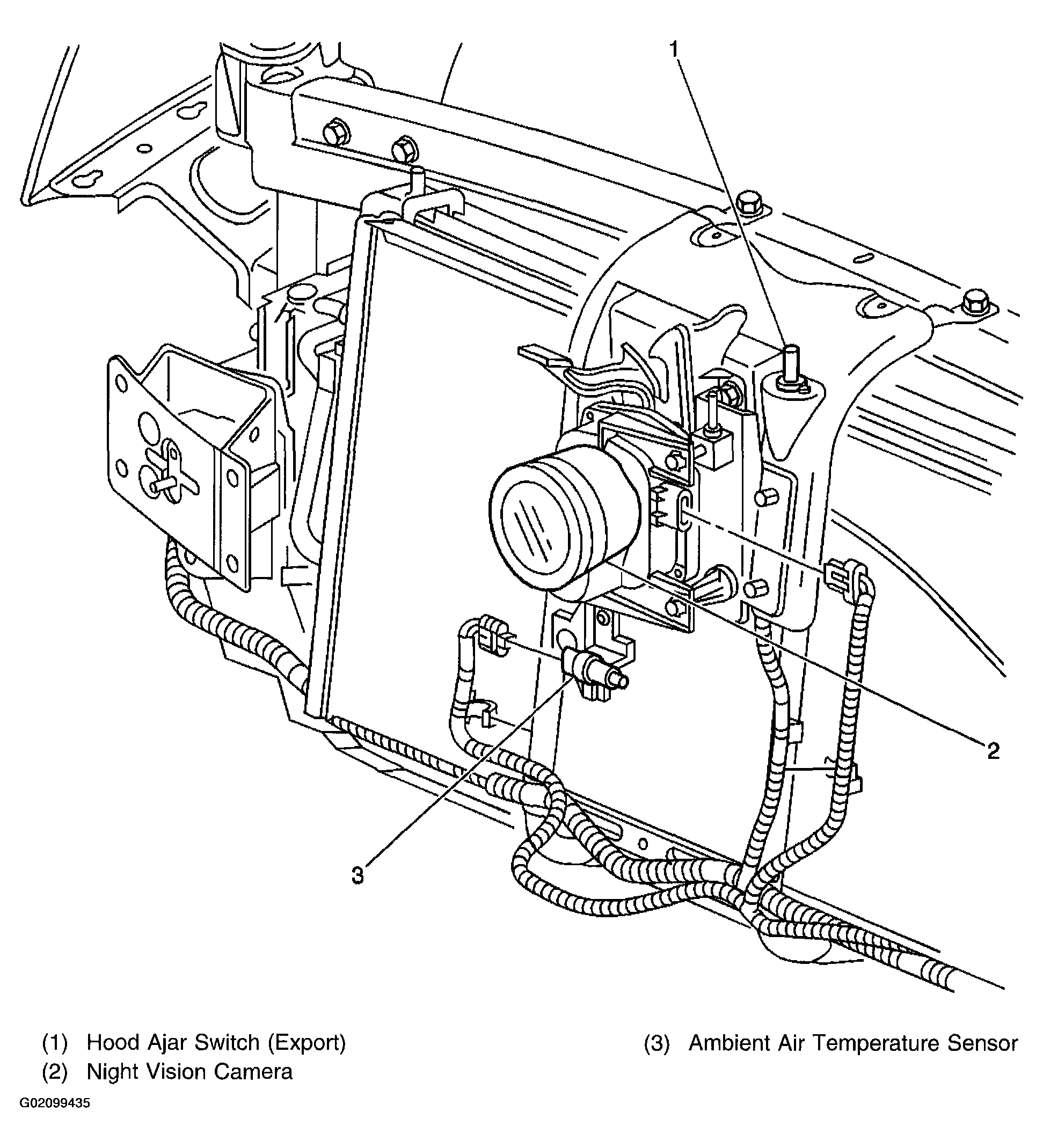

Fig 1: Component Location - Behind Front Grille, At Center Of Radiator Core Support

Courtesy of GENERAL MOTORS CORP.

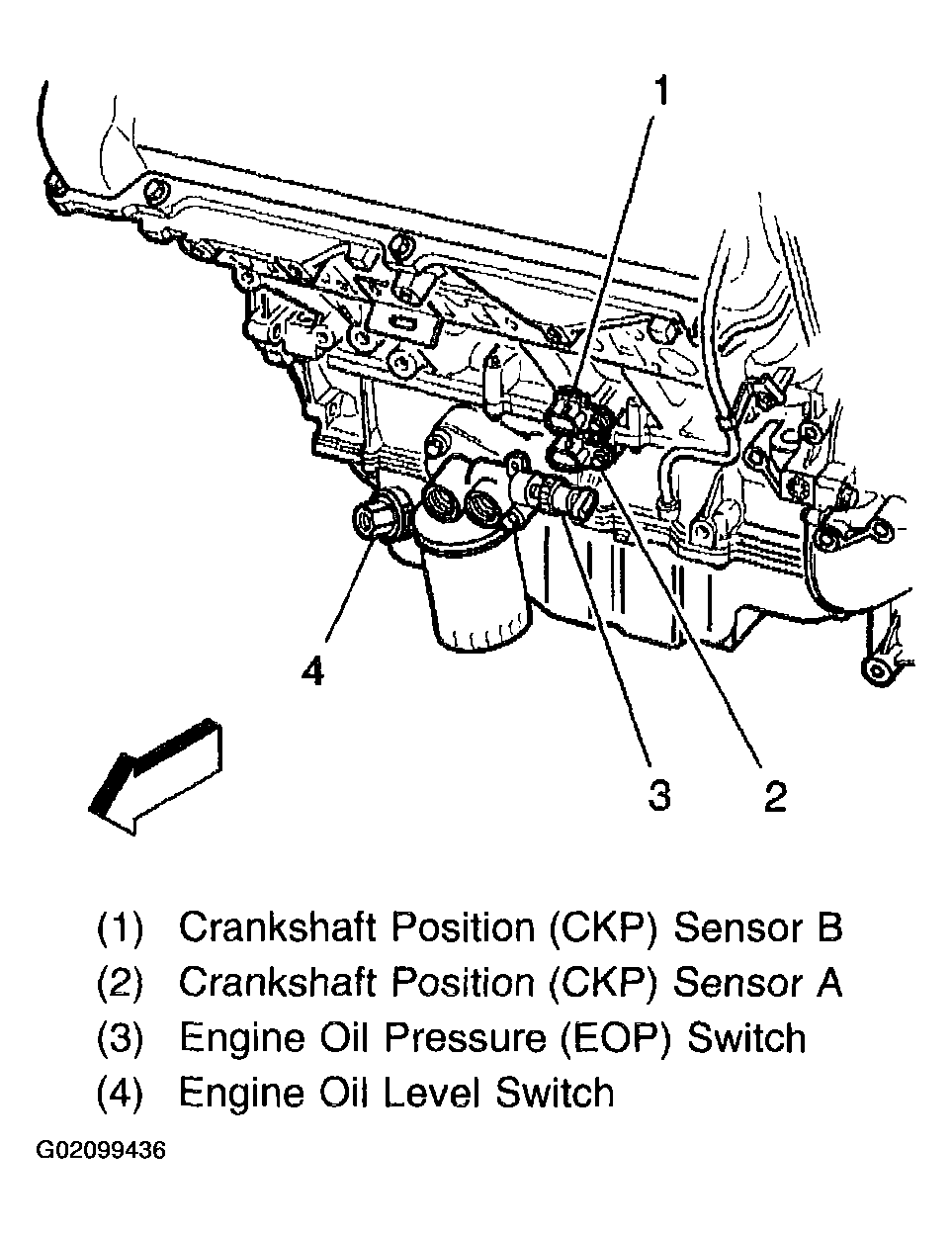

Fig 2: Component Location - CKP B, CKP A, Engine Oil Pressure Switch, And Engine Oil Level Switch

Courtesy of GENERAL MOTORS CORP.

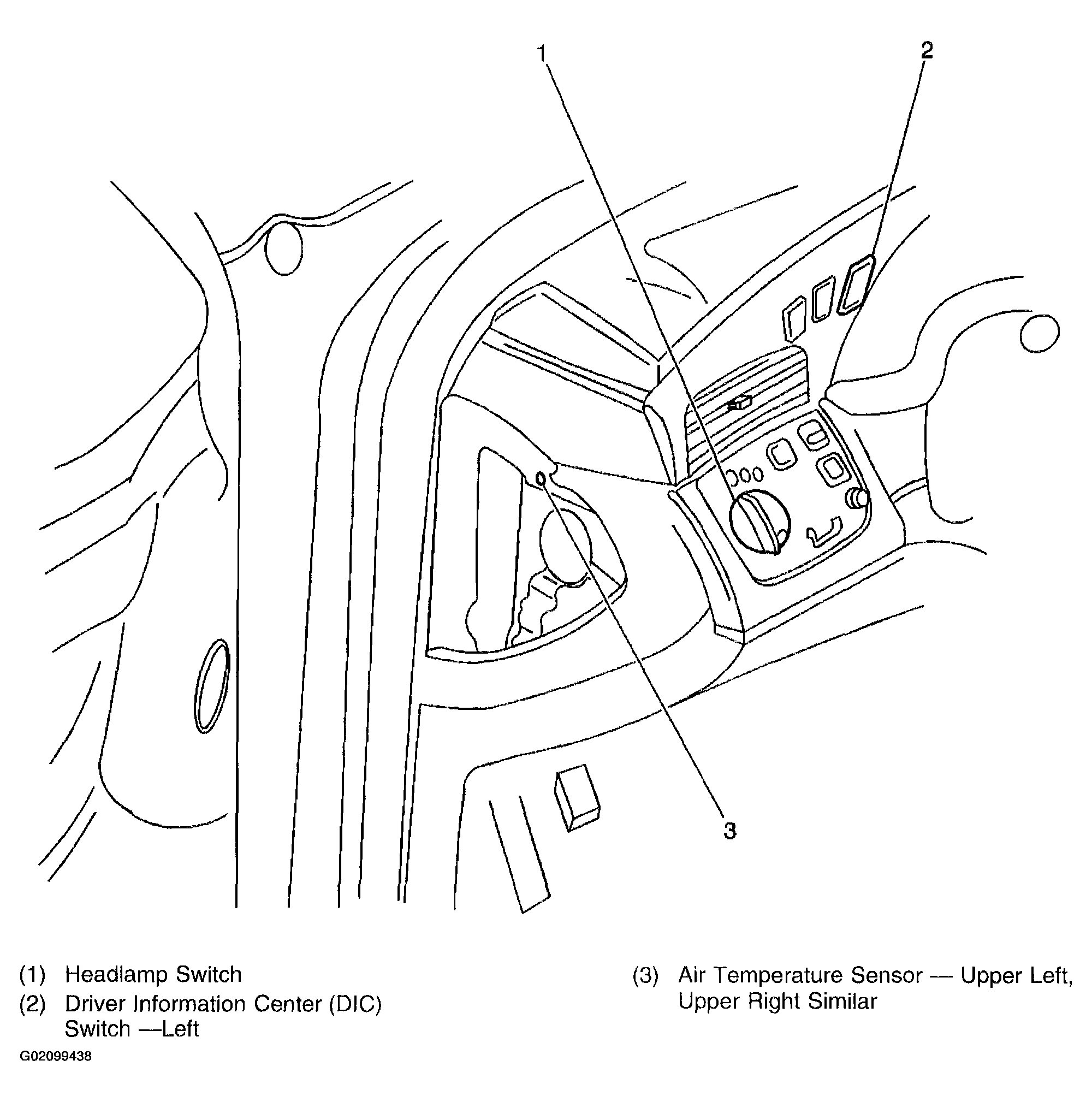

Fig 3: Component Location - Passenger Compartment, Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

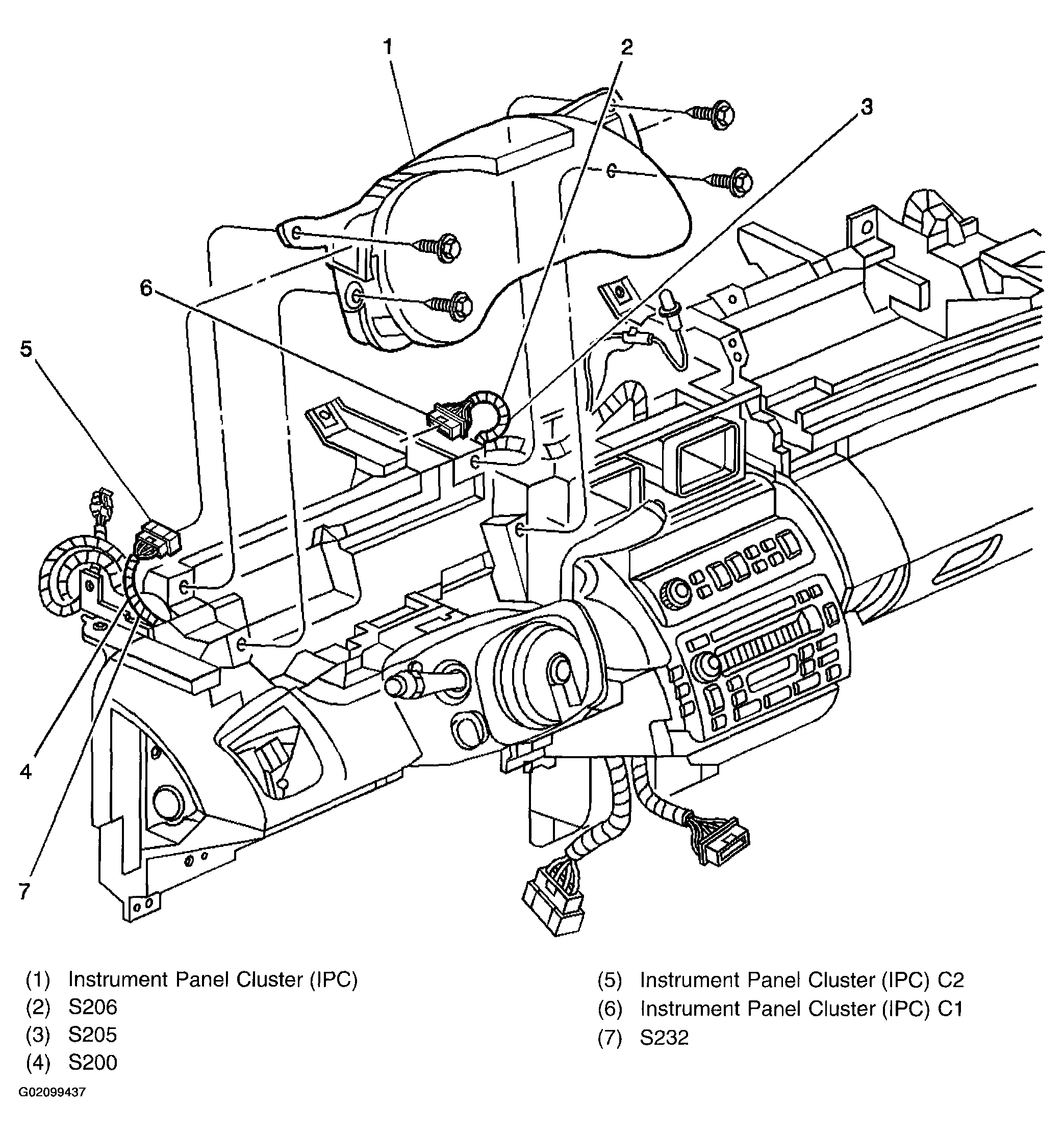

Fig 4: Component Location - Left Side Of Instrument Panel, Near Instrument Cluster

Courtesy of GENERAL MOTORS CORP.

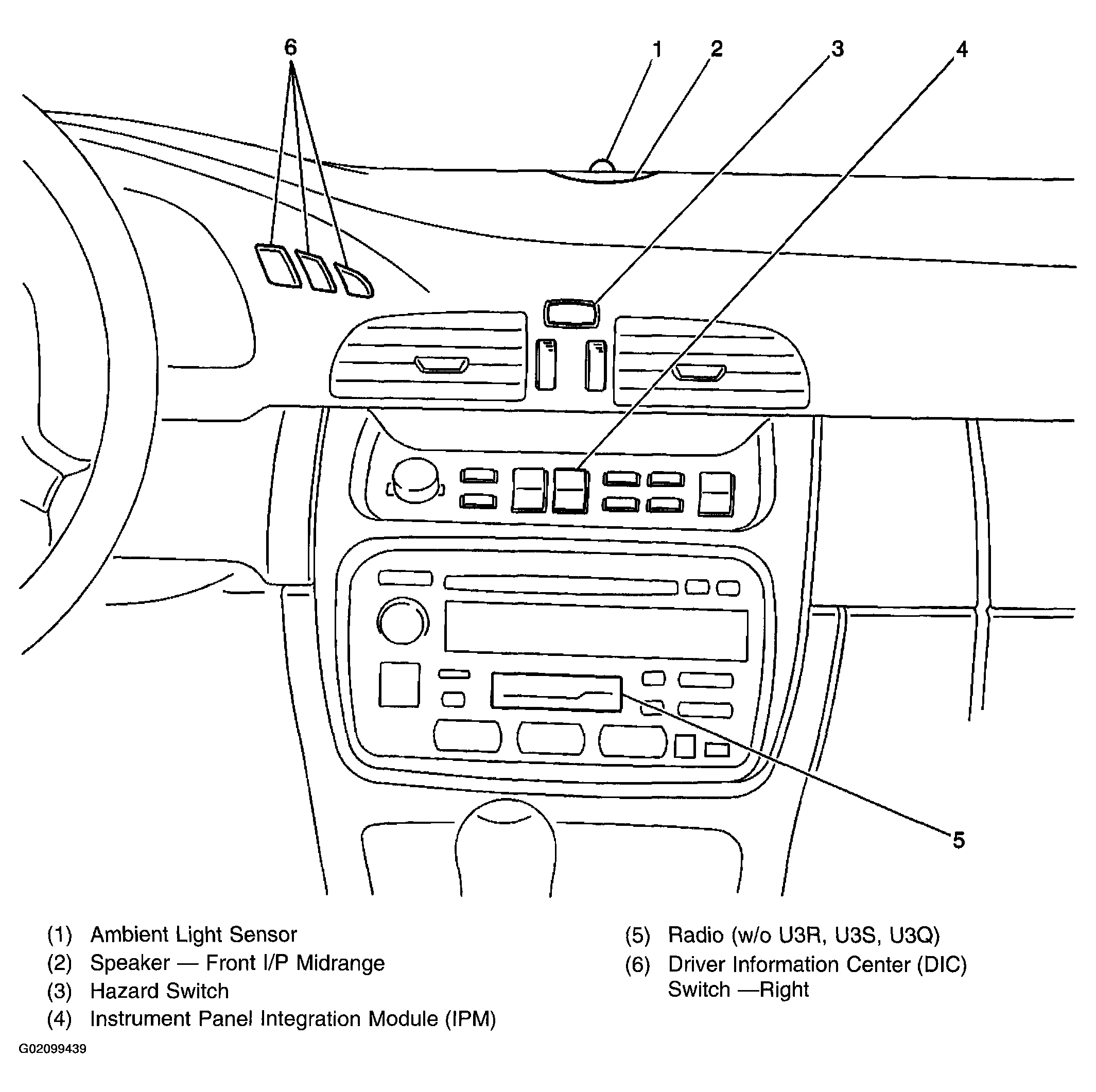

Fig 5: Component Location - Passenger Compartment, Center Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

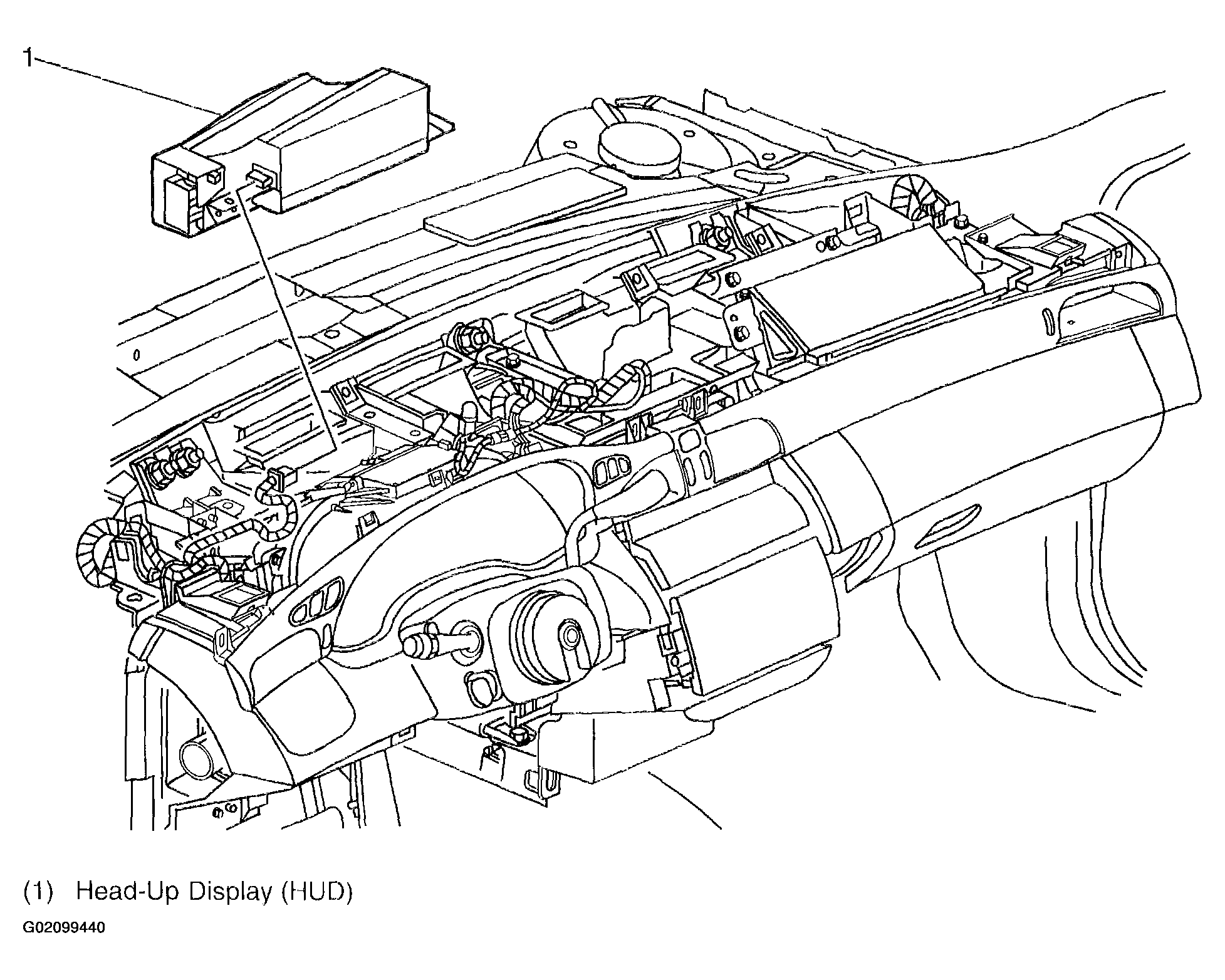

Fig 6: Component Location - Left Side Of Instrument Panel, Under Dash Pad

Courtesy of GENERAL MOTORS CORP.

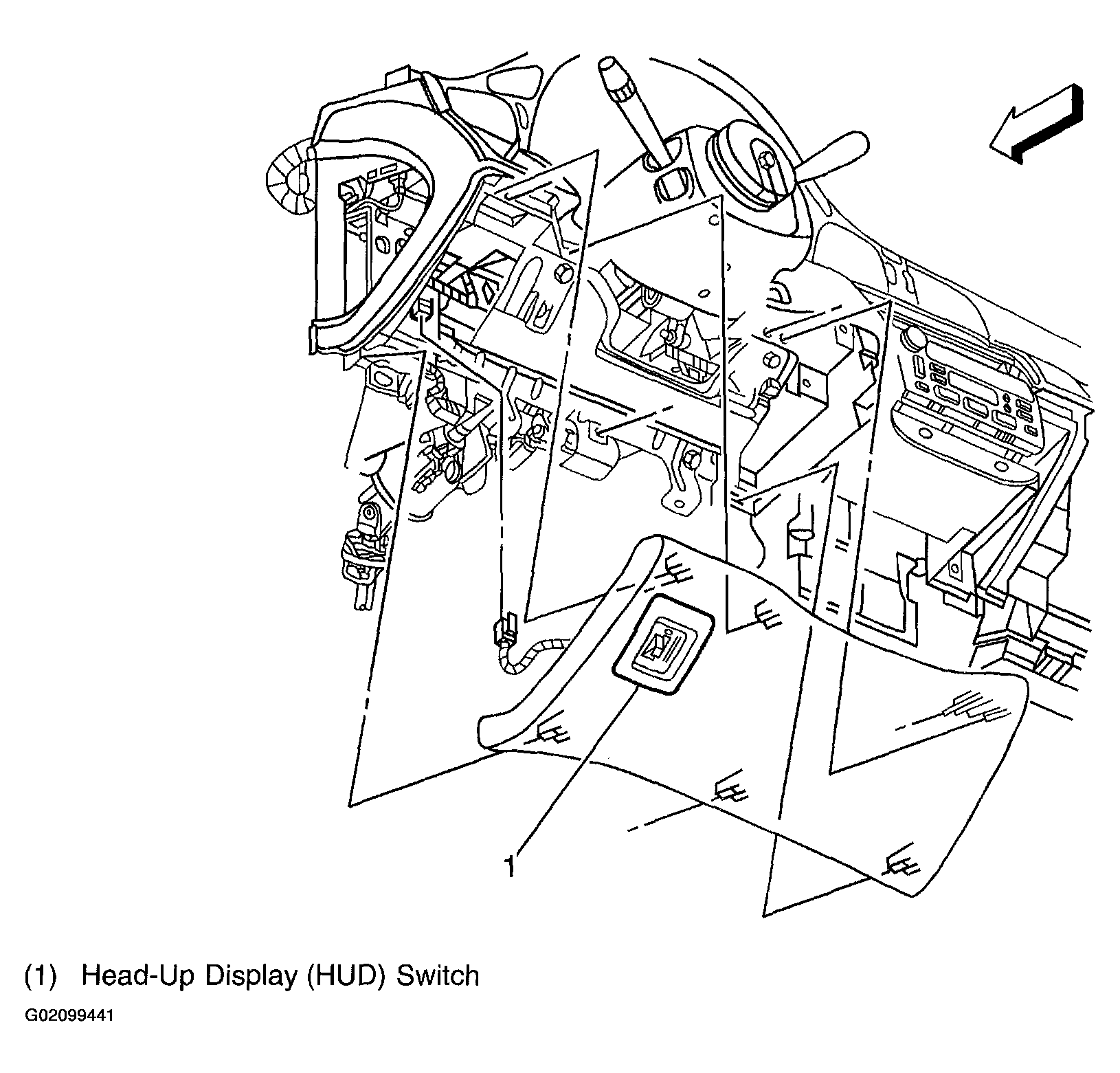

Fig 7: Component Location - Lower Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.
