Low Engine Coolant Indicator Always On

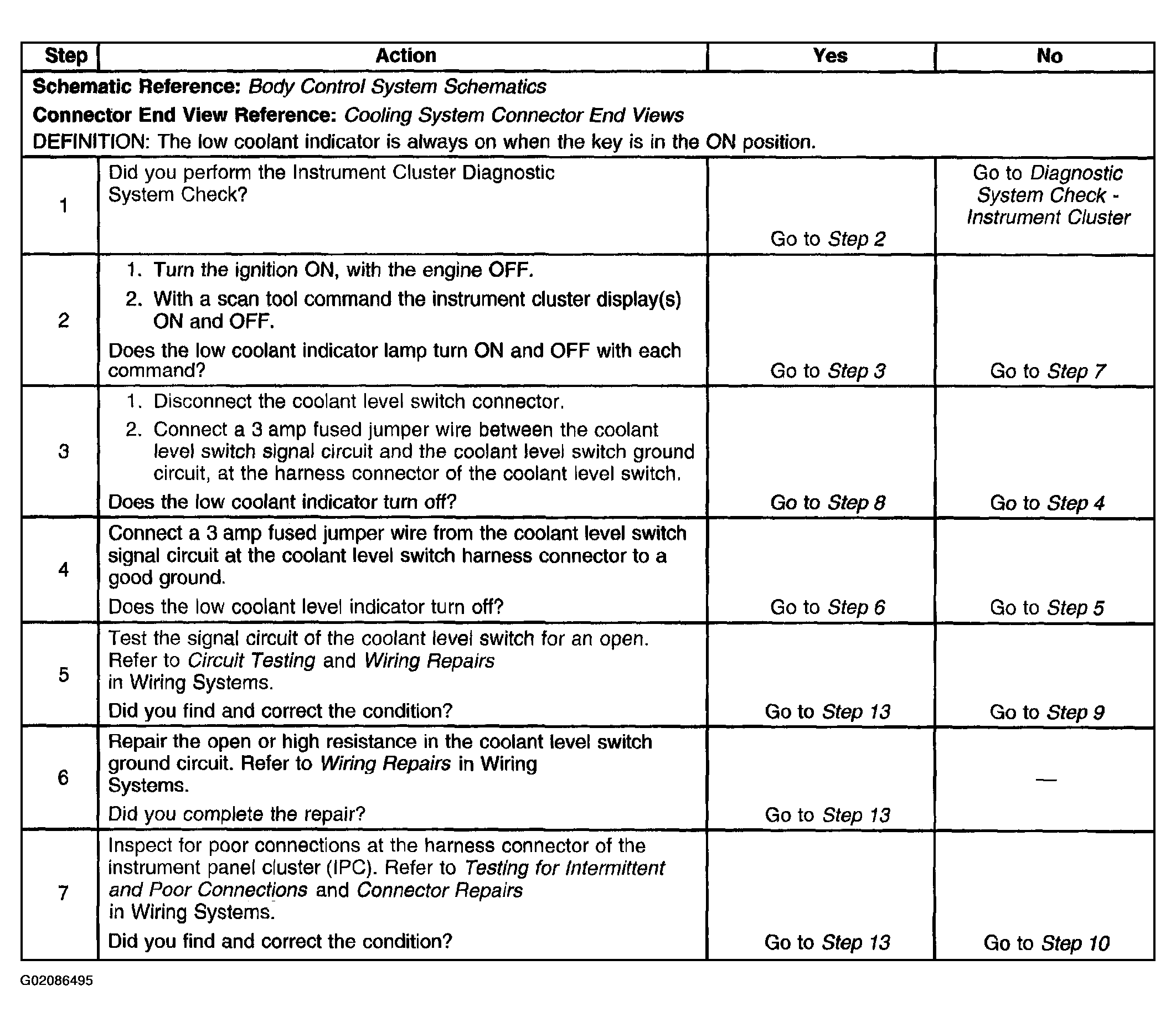

Fig 1: Low Engine Coolant Indicator Always On (Steps 1-7)

Courtesy of GENERAL MOTORS CORP.

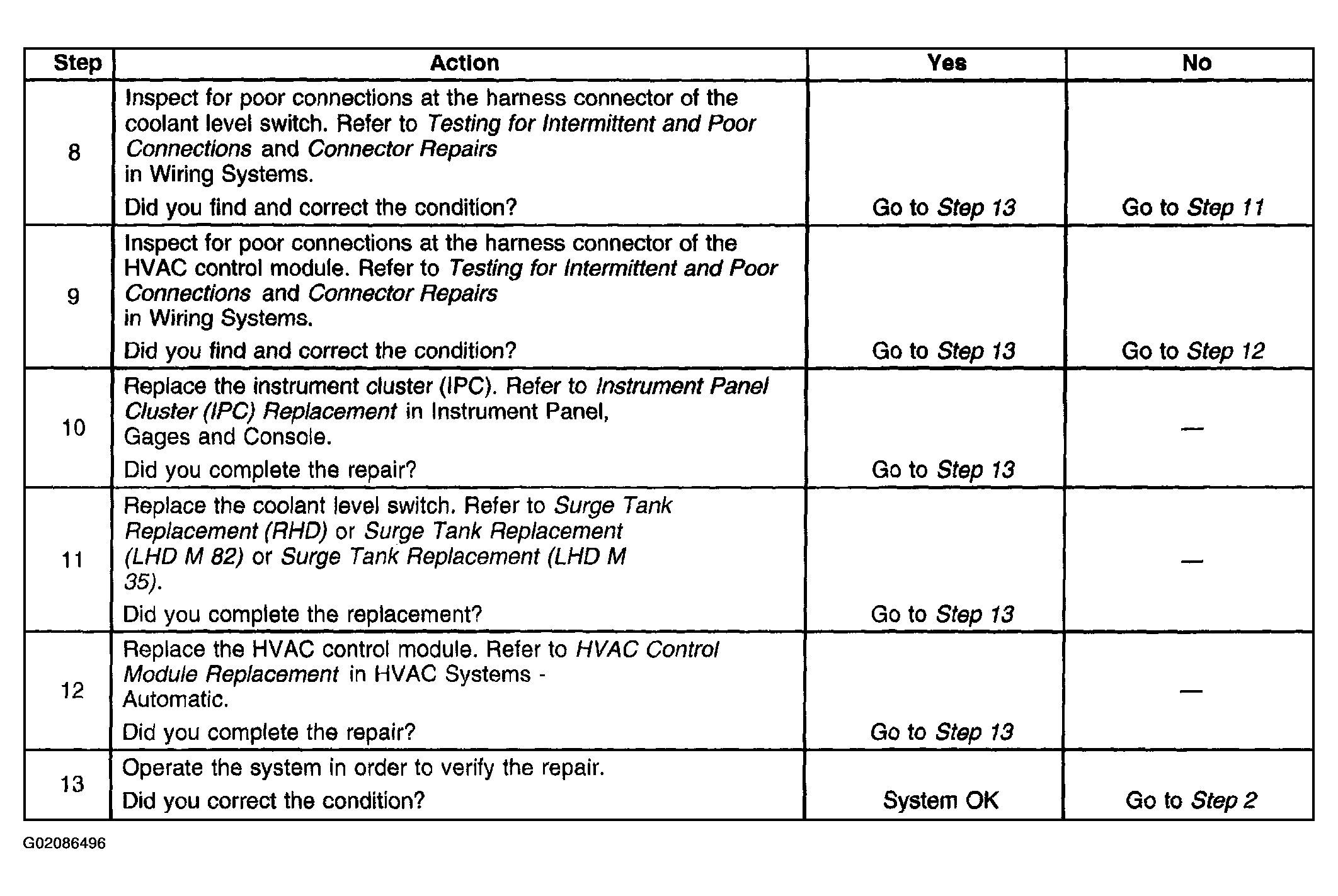

Fig 2: Low Engine Coolant Indicator Always On (Steps 8-13)

Courtesy of GENERAL MOTORS CORP.
