Door Ajar Indicator Malfunction

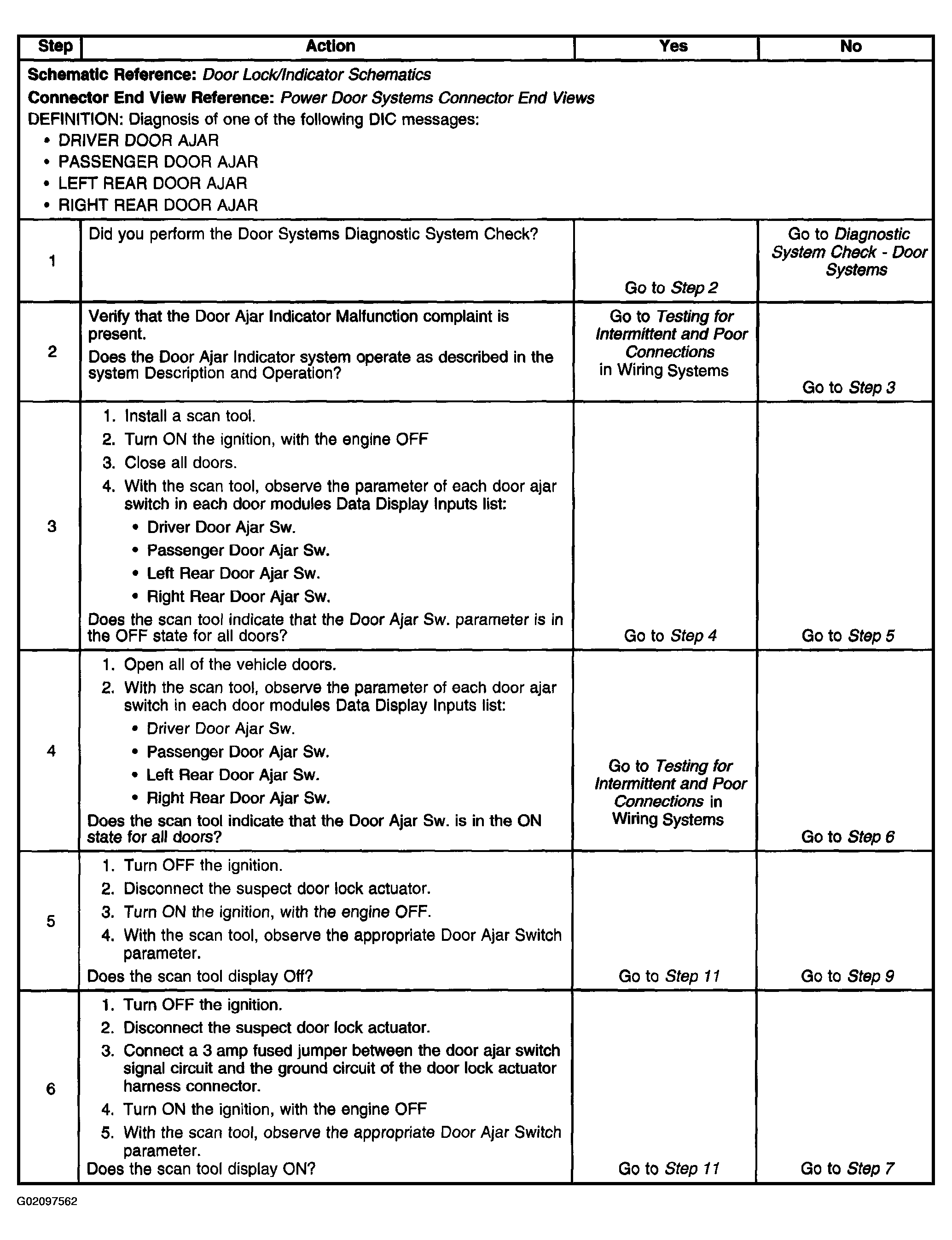

Fig 1: Door Ajar Indicator Malfunction Symptom Diagnostic Procedure Chart (1 Of 2)
G02097562Courtesy of GENERAL MOTORS CORP.

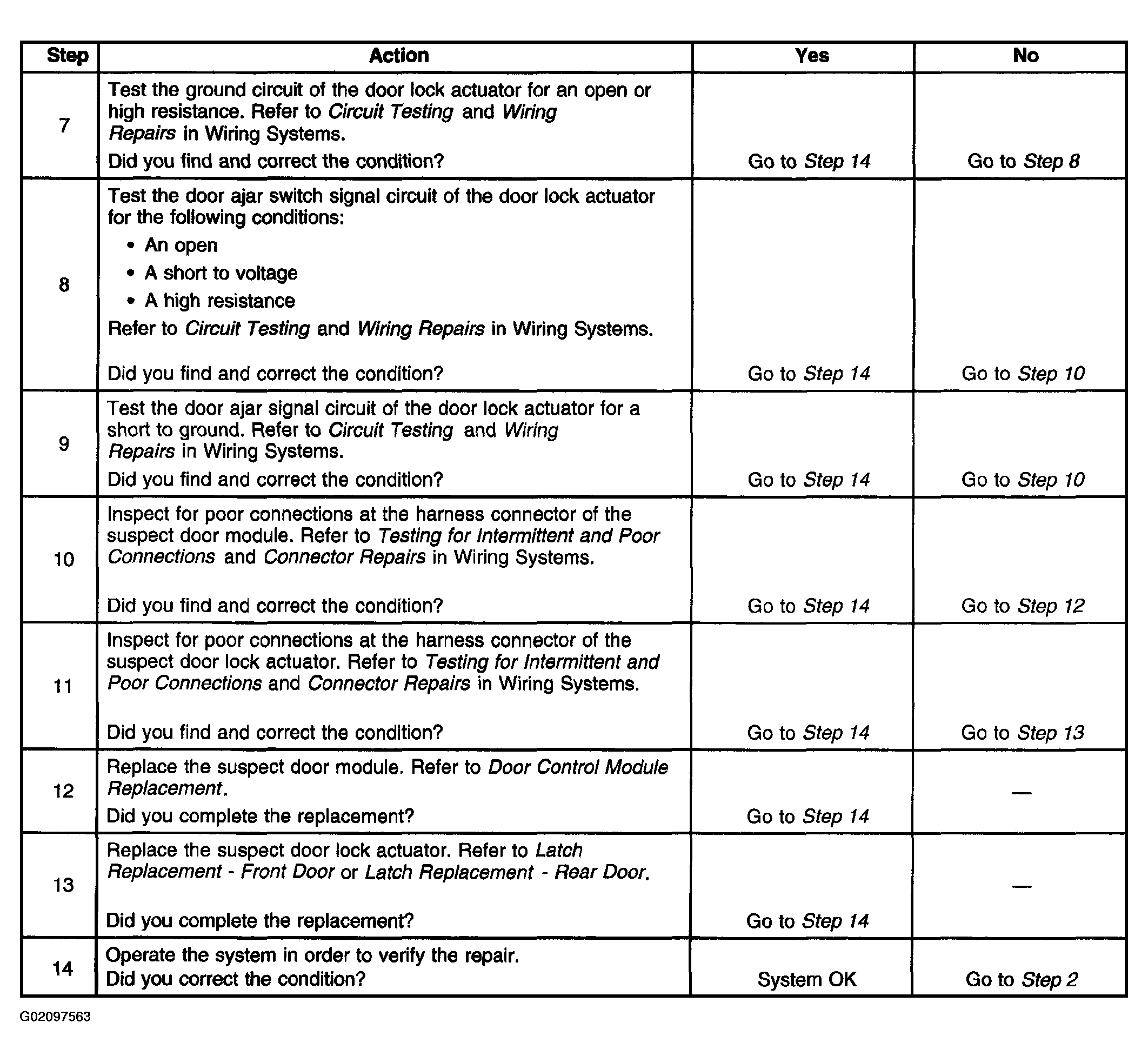

Fig 2: Door Ajar Indicator Malfunction Symptom Diagnostic Procedure Chart (2 Of 2)
G02097563Courtesy of GENERAL MOTORS CORP.
