Turn Signal Lamps And/Or Indicators Inoperative

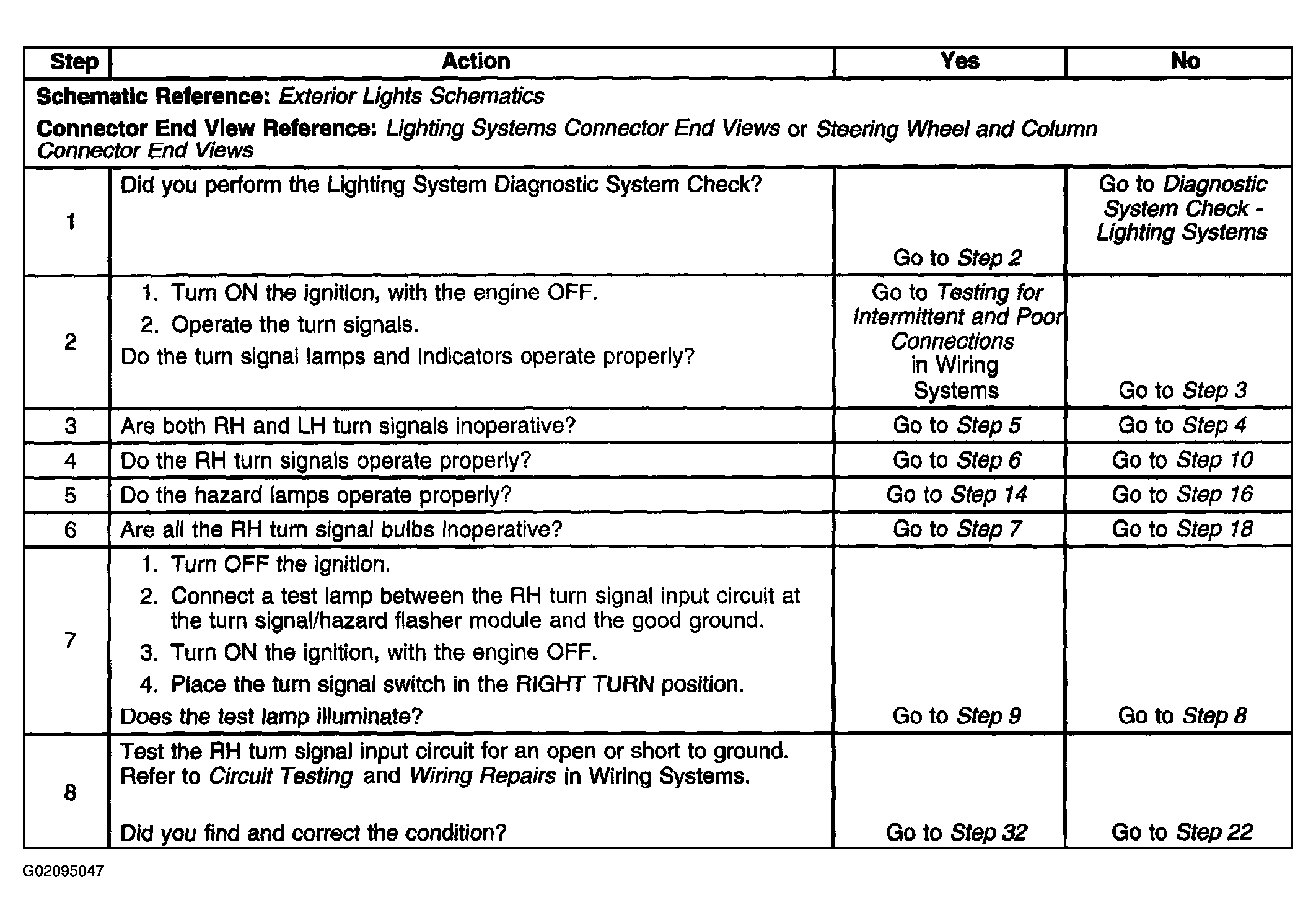

Fig 1: Turn Signal Lamps And/Or Indicators Inoperative (Steps 1 - 8)

Courtesy of GENERAL MOTORS CORP.

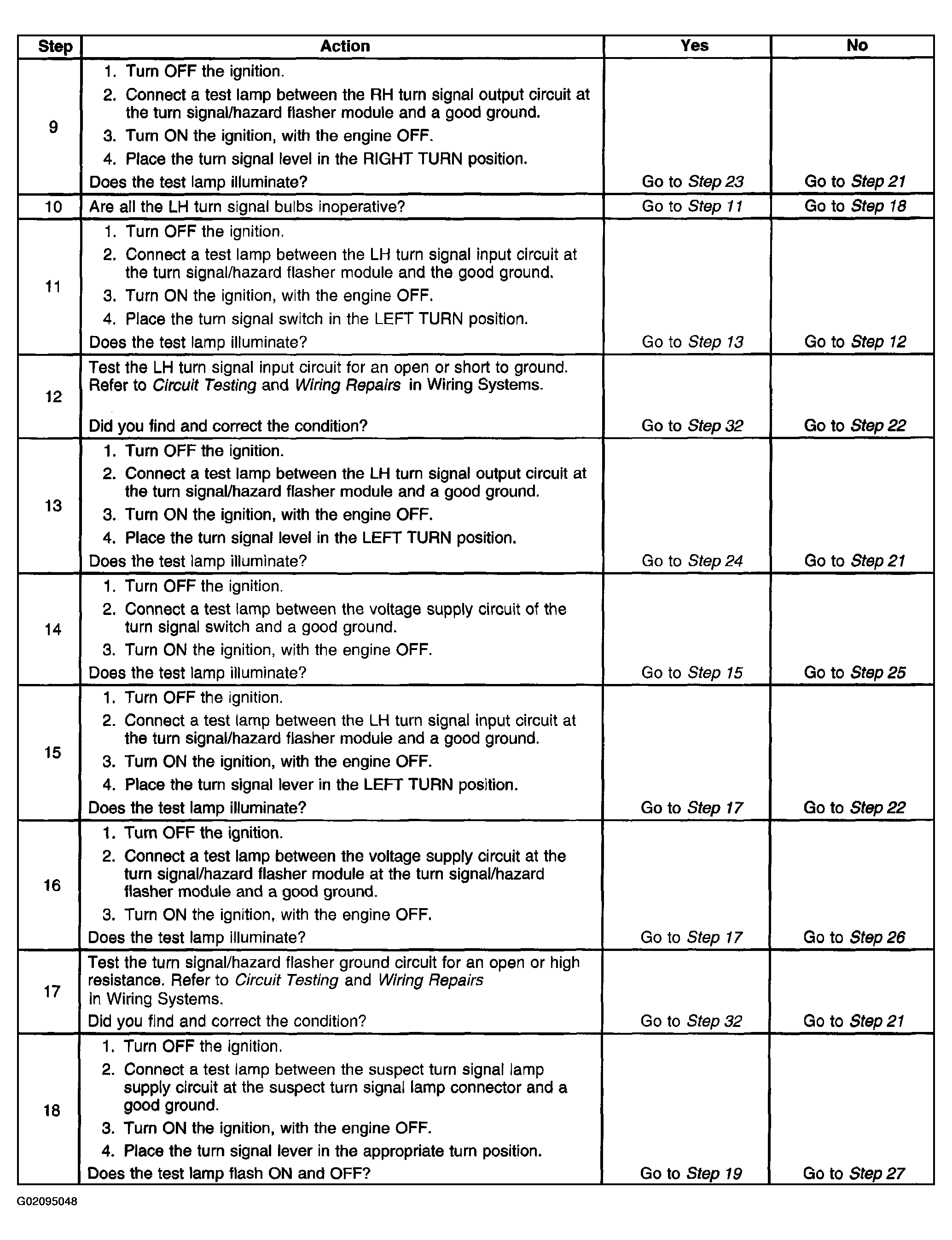

Fig 2: Turn Signal Lamps And/Or Indicators Inoperative (Steps 9 - 18)

Courtesy of GENERAL MOTORS CORP.

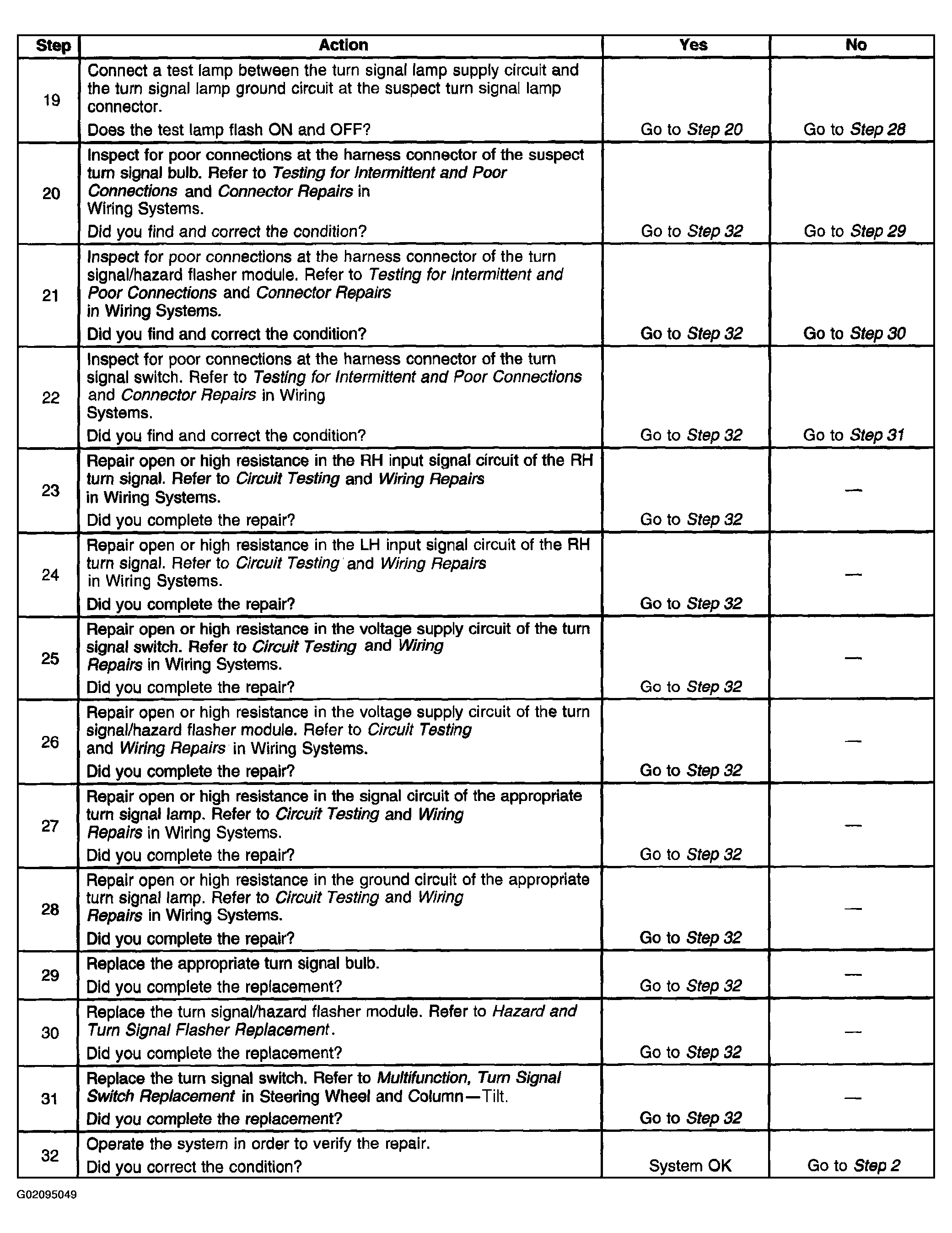

Fig 3: Turn Signal Lamps And/Or Indicators Inoperative (Steps 19 - 32)

Courtesy of GENERAL MOTORS CORP.
