Turn Signal Lamps And/Or Indicators Always On Or Flashing

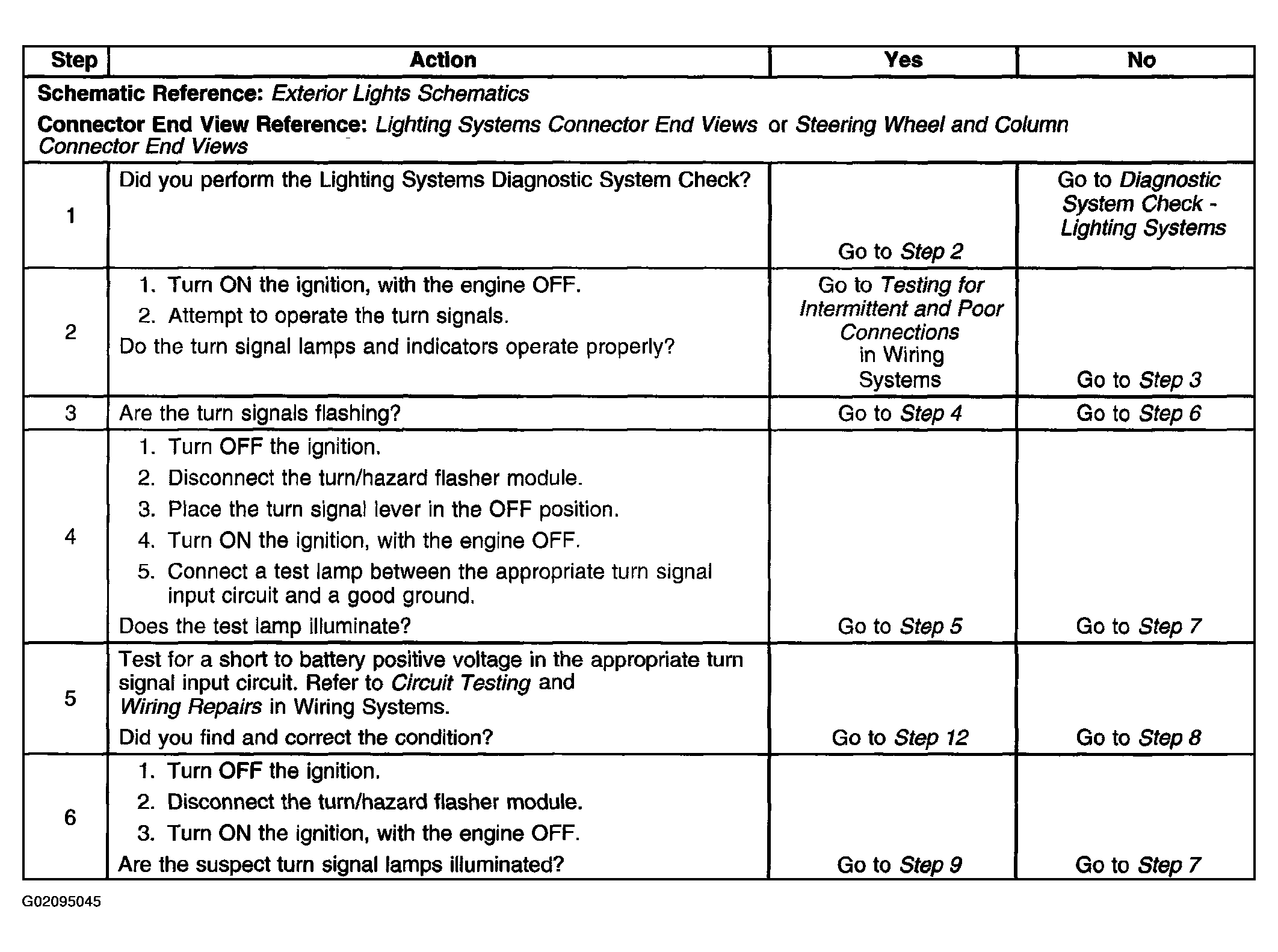

Fig 1: Turn Signal Lamps And/Or Indicators Always On Or Flashing (Steps 1 - 6)
G02095045Courtesy of GENERAL MOTORS CORP.

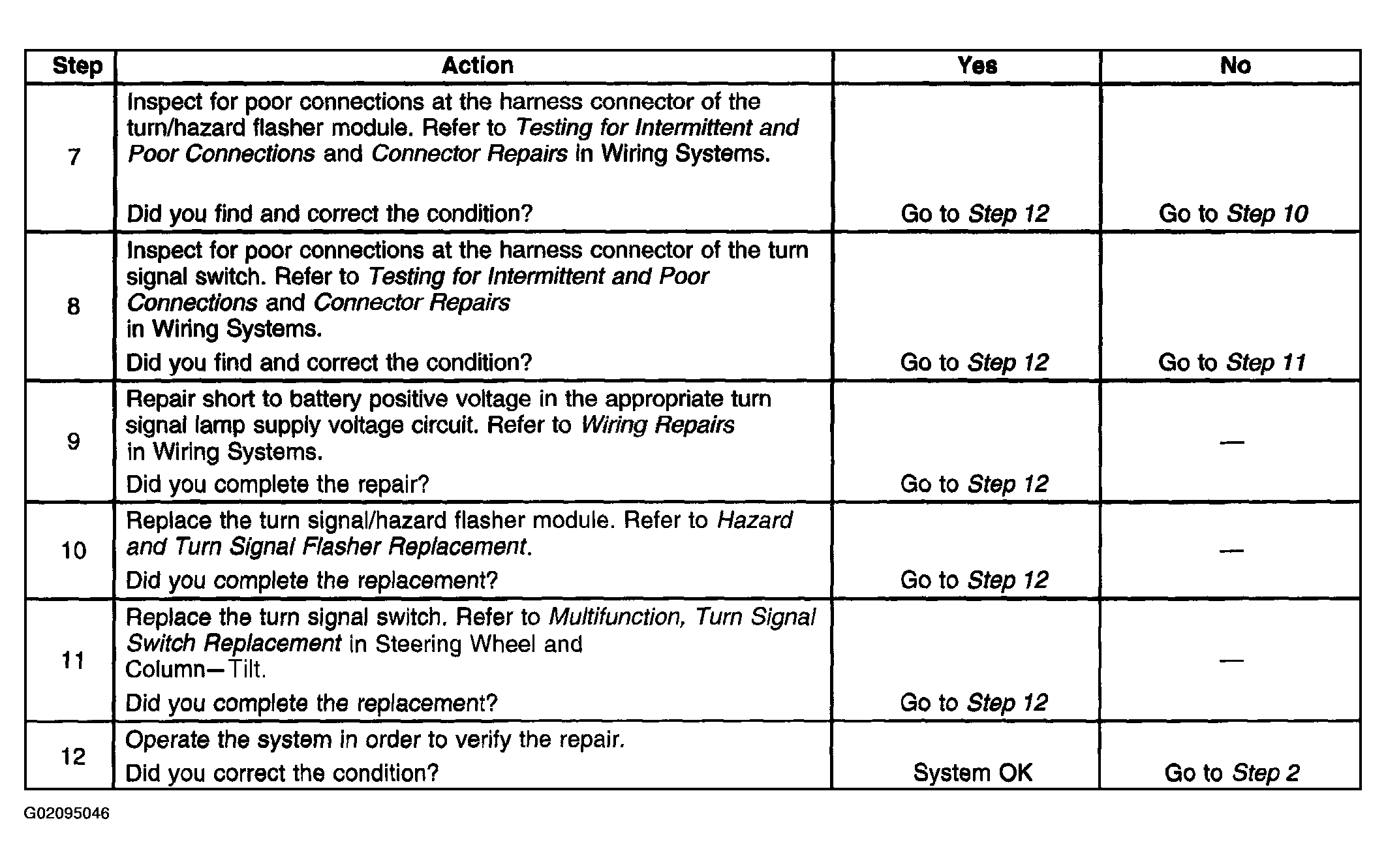

Fig 2: Turn Signal Lamps And/Or Indicators Always On Or Flashing (Steps 7 - 12)
G02095046Courtesy of GENERAL MOTORS CORP.
