Rear Fog Lamp Indicator Always On

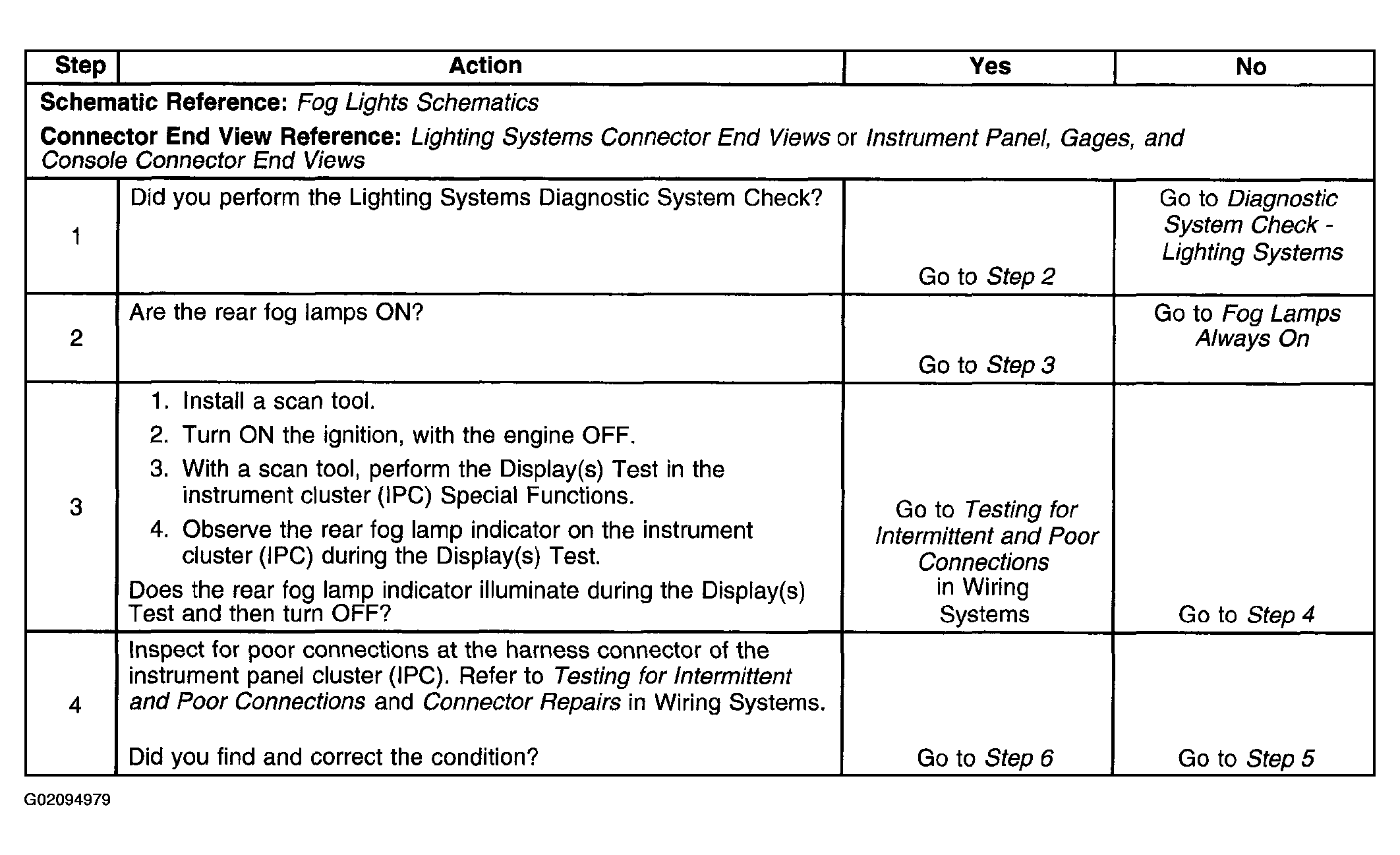

Fig 1: Rear Fog Lamp Indicator Always On (Steps 1 - 4)
G02094979Courtesy of GENERAL MOTORS CORP.

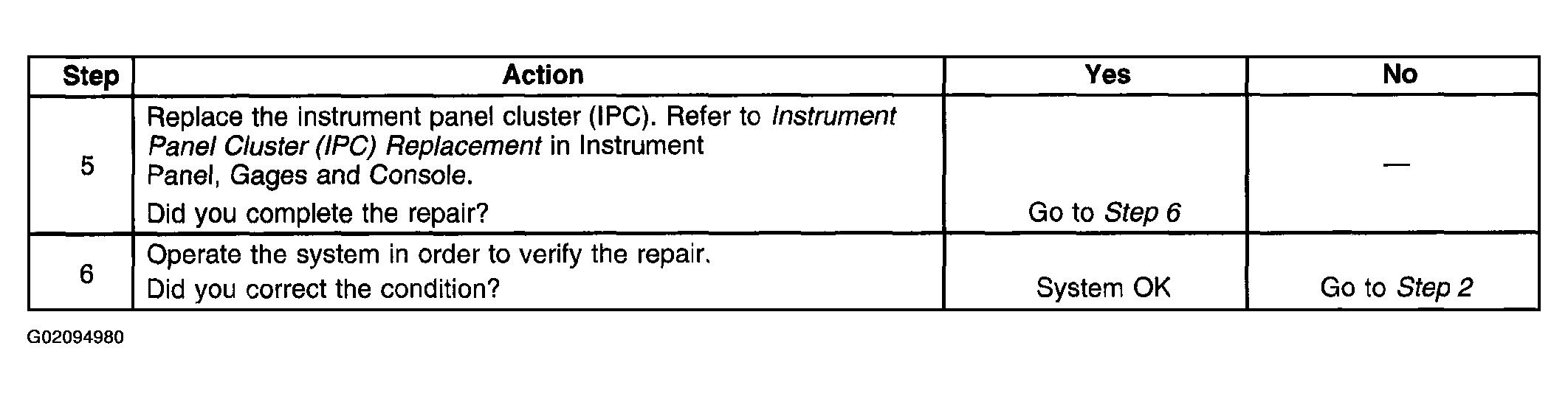

Fig 2: Rear Fog Lamp Indicator Always On (Steps 5 - 6)
G02094980Courtesy of GENERAL MOTORS CORP.
