Fog Lamp Indicator Inoperative (Front Fog Lamps)

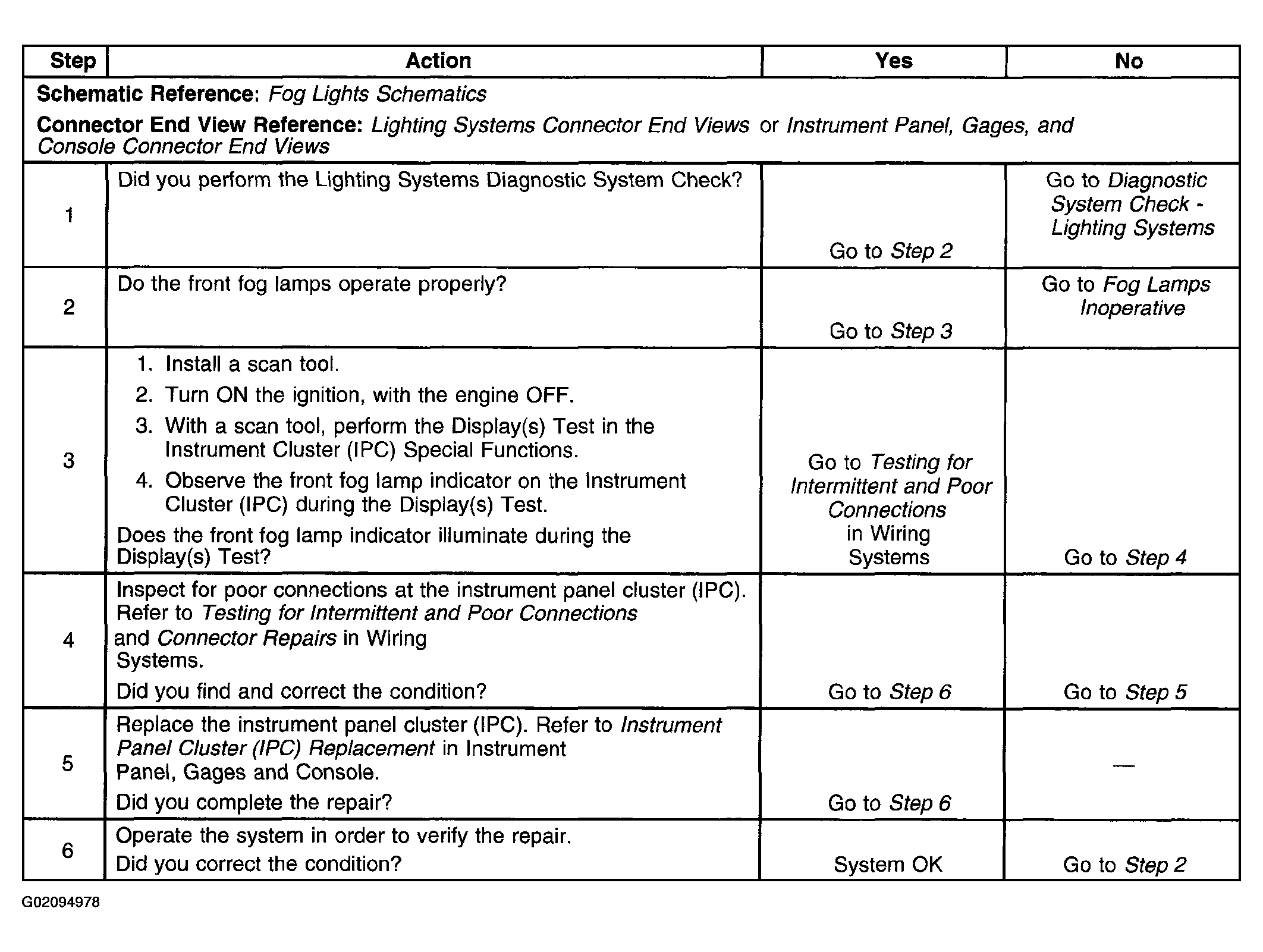

Fig 1: Fog Lamp Indicator Inoperative (Front Fog Lamps)

G02094978

Courtesy of GENERAL MOTORS CORP.
