Schematic and Routing Diagrams

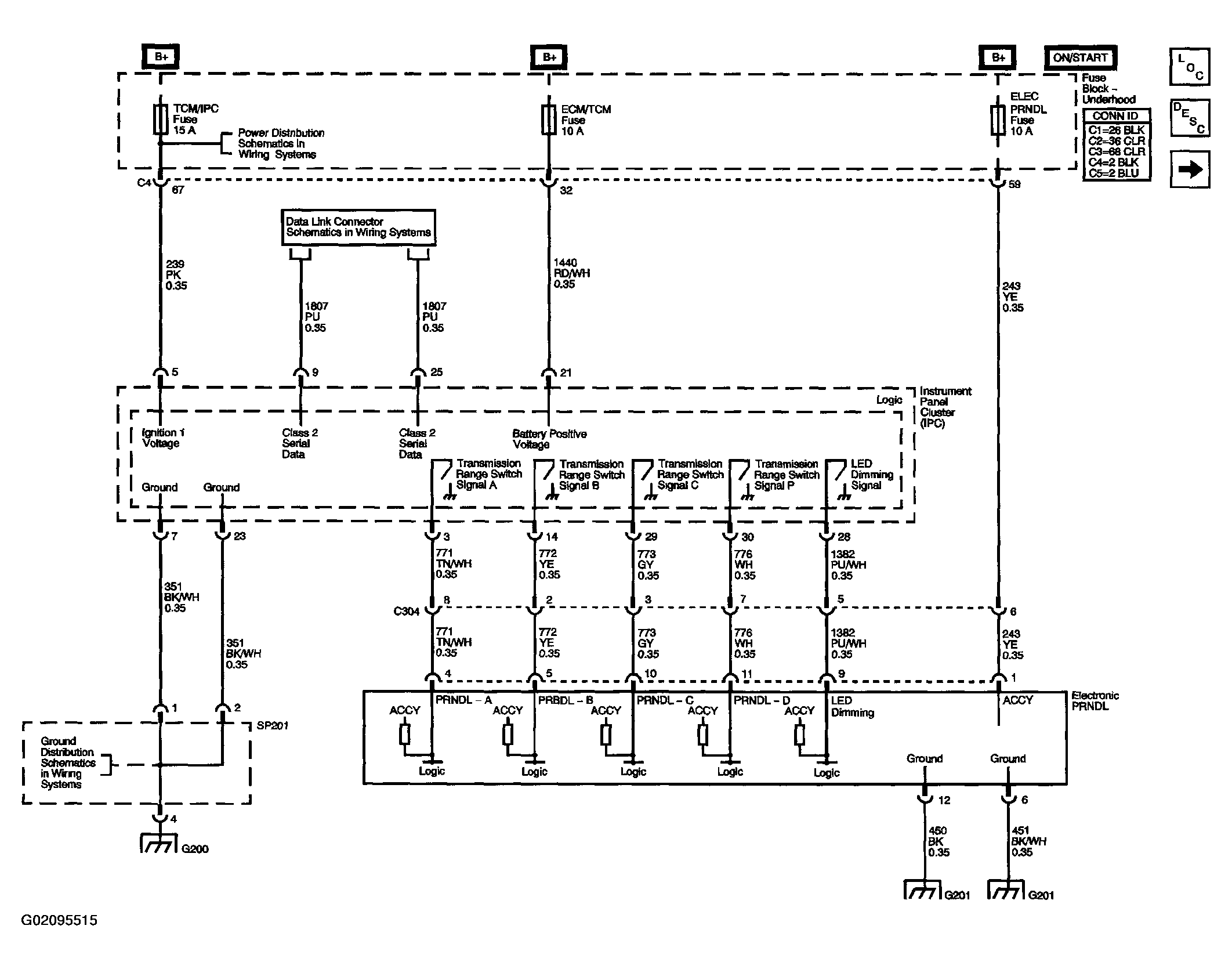

Fig 1: Instrument Cluster Schematics Diagram
G02095515Courtesy of GENERAL MOTORS CORP.

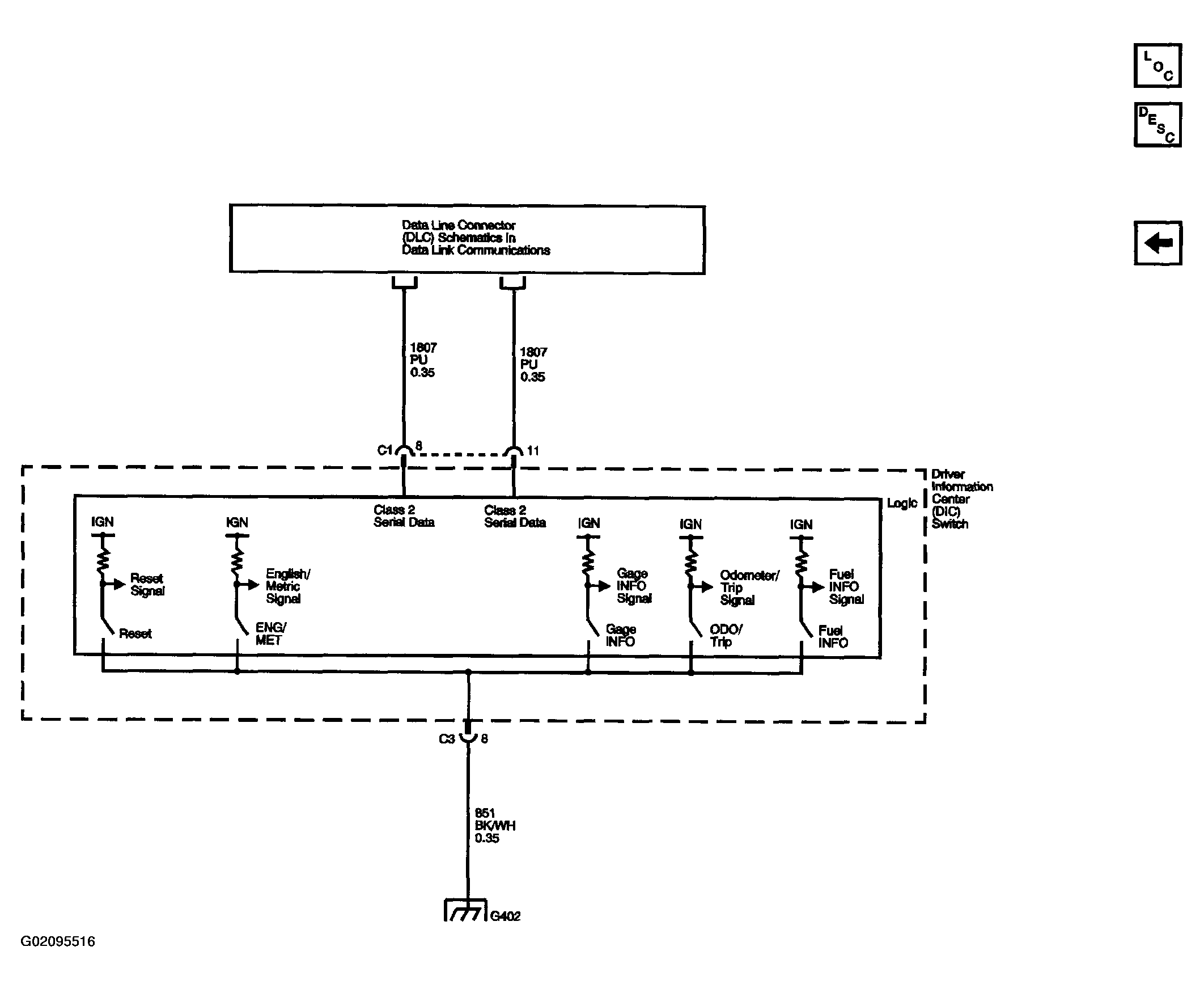

Fig 2: Driver Information System Schematics Diagram
G02095516Courtesy of GENERAL MOTORS CORP.

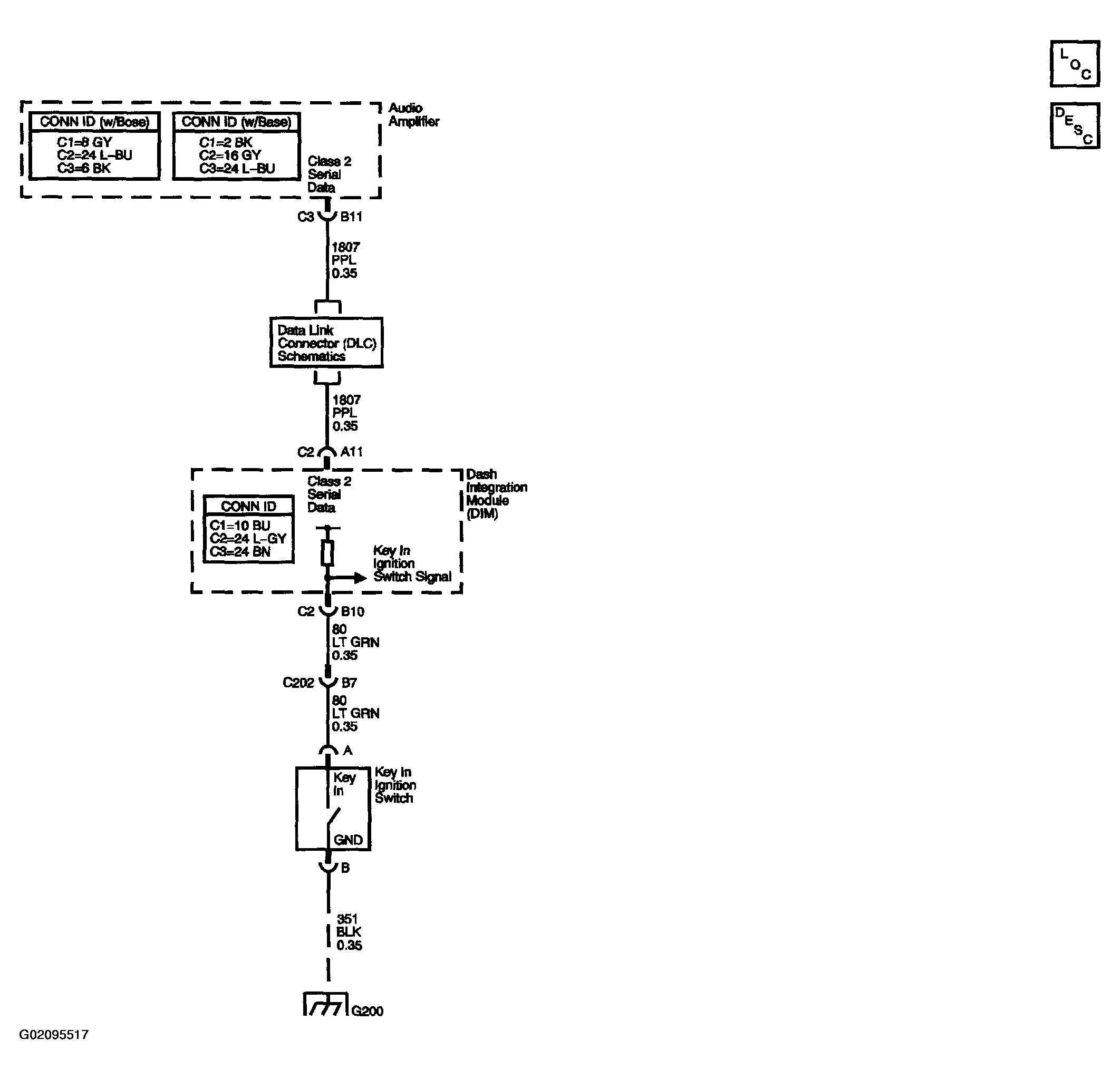

Fig 3: Audible Warnings Schematics Diagram
G02095517Courtesy of GENERAL MOTORS CORP.
