Removal Procedure

  1. Pry the rear of the shifter trim plate (1) up with a blunt tool to release the trim from the console.
  2. Pull upward on the trim plate (1).

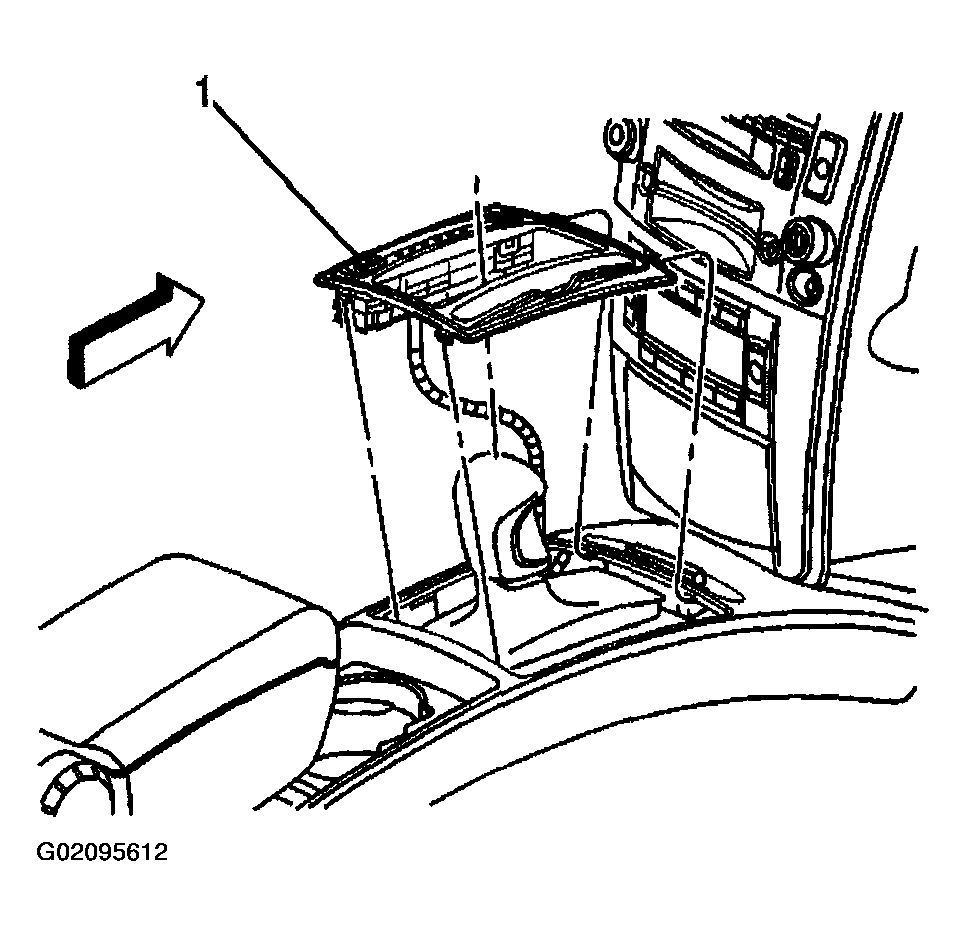

    Fig 1: Pulling Console Trim Plate
    G02095612Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the shift indicator electrical connector (2).
  4. Remove the trim plate (1).

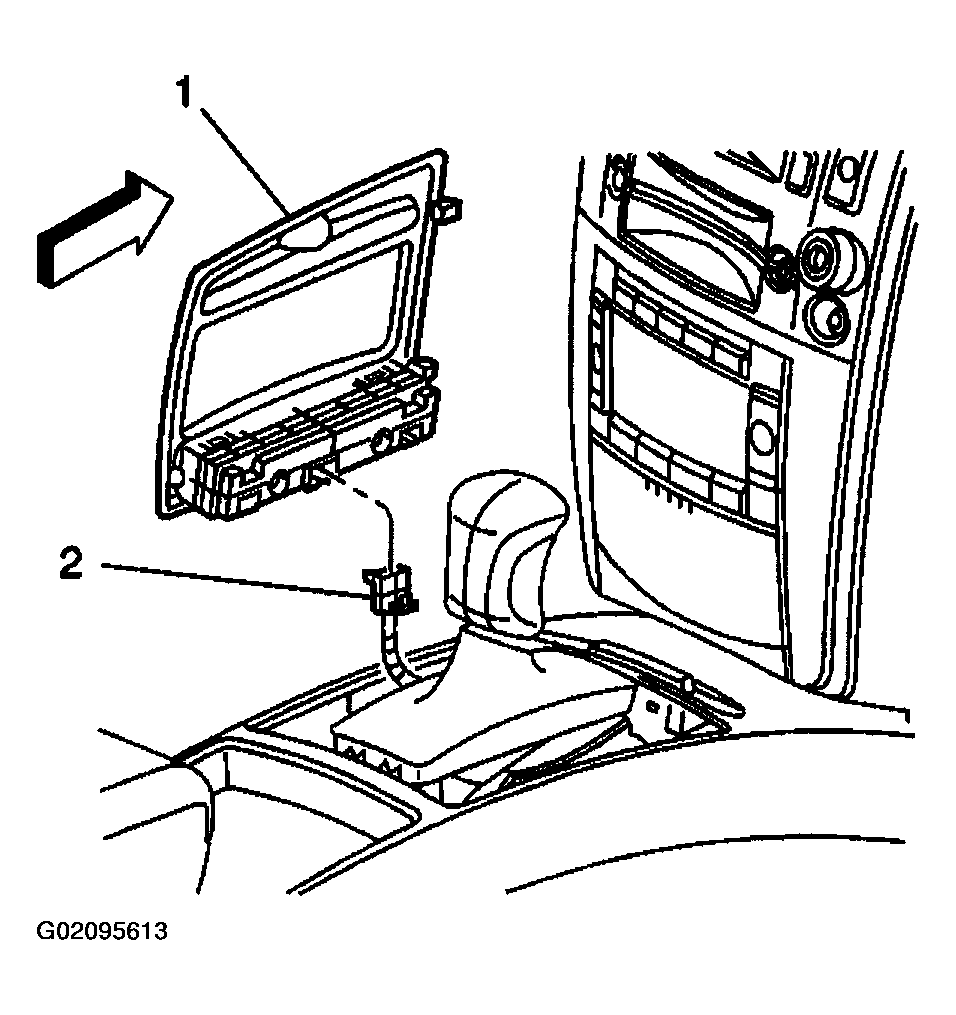

    Fig 2: Disconnecting Shift Indicator Electrical Connector
    G02095613Courtesy of GENERAL MOTORS CORP.
