Installation Procedure

  1. Connect the shift indicator electrical connector (2).

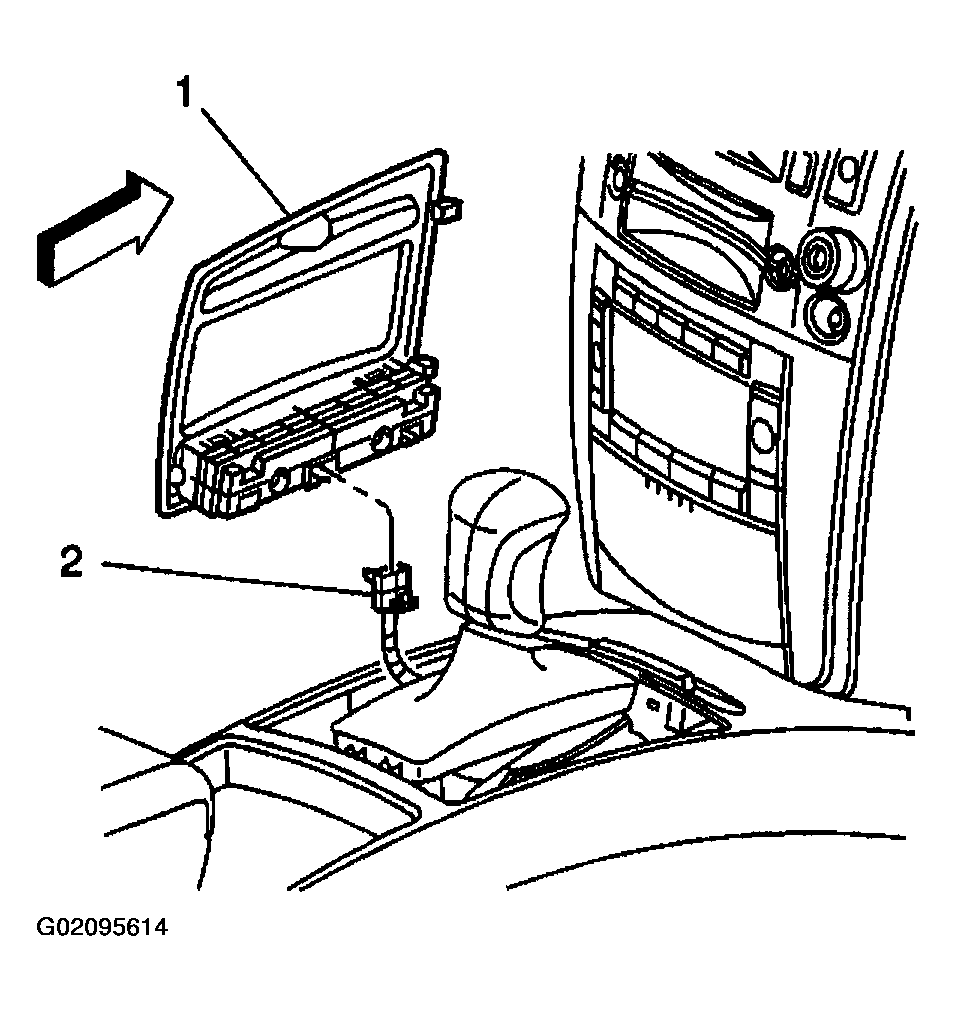

    Fig 1: Connecting Shift Indicator Electrical Connector
    G02095614Courtesy of GENERAL MOTORS CORP.
  2. Install the trim plate (1) to the console with the front tabs.
  3. Push down on the rear of the trim plate to lock it onto the console.

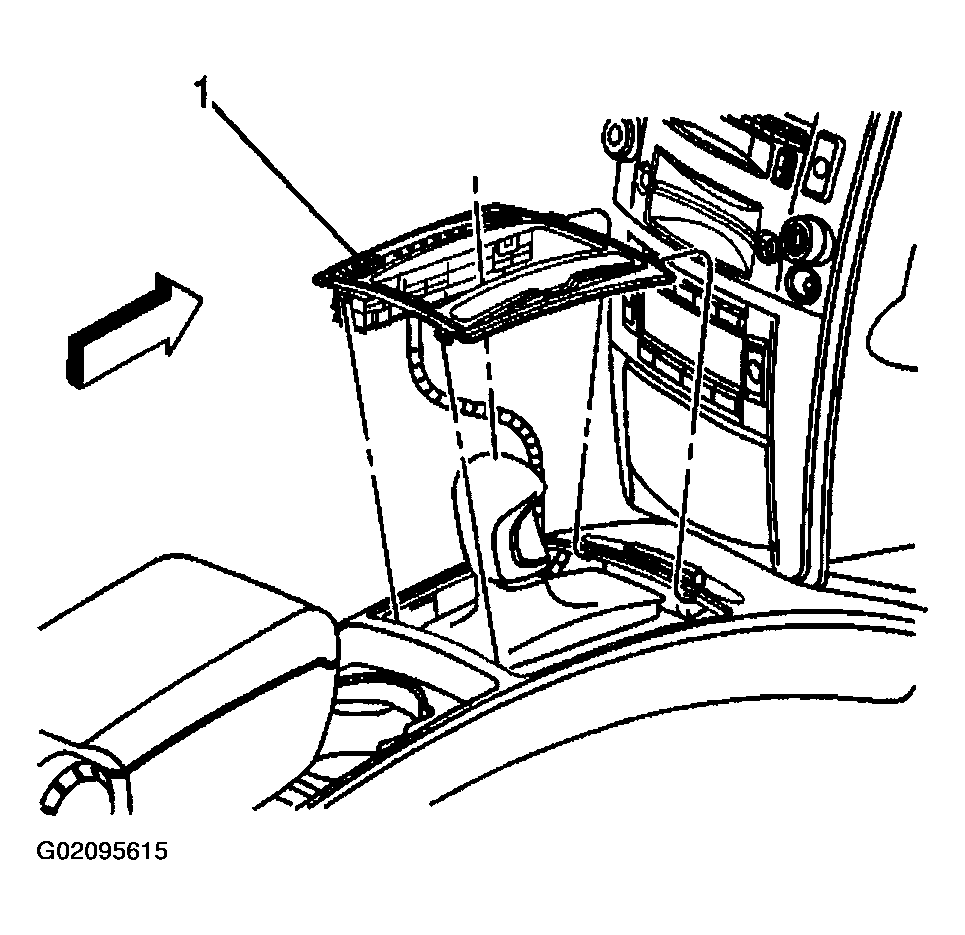

    Fig 2: Installing Trim Plate To Console
    G02095615Courtesy of GENERAL MOTORS CORP.
