Removal Procedure

  1. Tilt the steering column to the lowest position.
  2. Using a small flat bladed tool, pry up on the I/P cluster trim.
  3. Remove the trim cover from the vehicle.

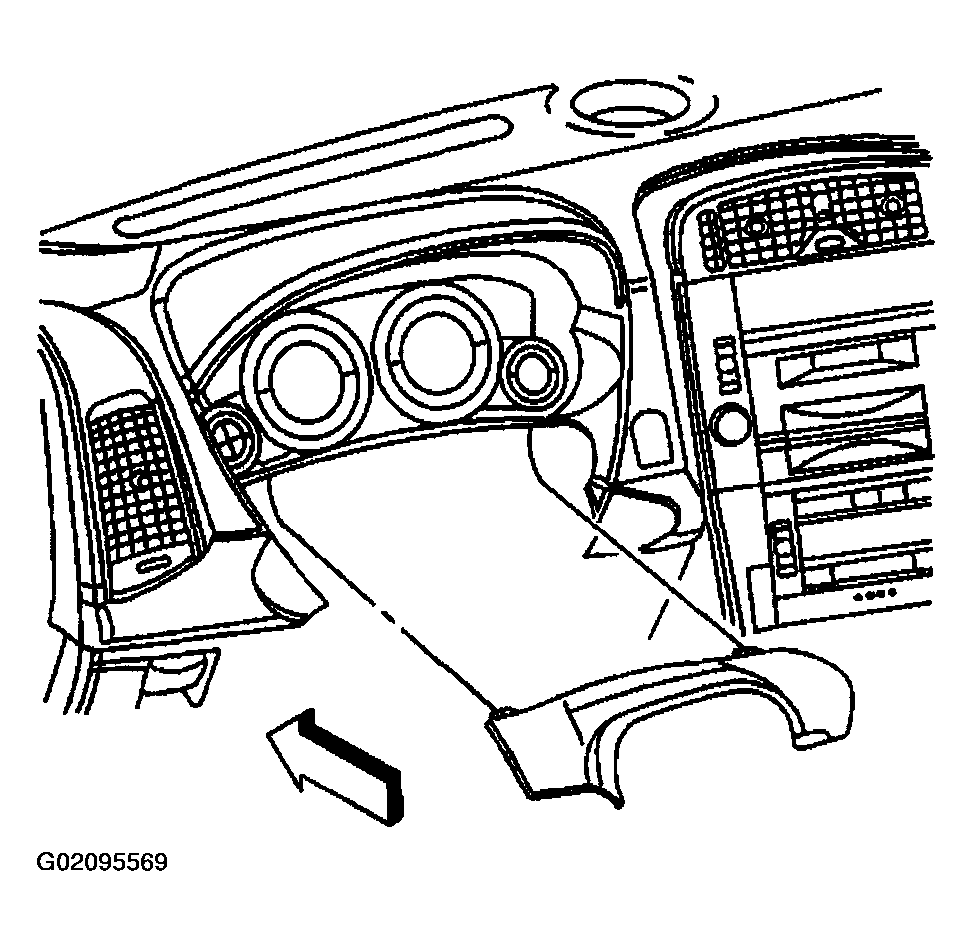

    Fig 1: Removing Instrument Panel Cluster Trim Panel
    G02095569Courtesy of GENERAL MOTORS CORP.
