Removal Procedure

  1. Remove the radio. Refer to RADIO REPLACEMENT Entertainment.
  2. Remove the HVAC control. Refer to HVAC CONTROL MODULE REPLACEMENT HVAC Systems with A/C - Automatic (Includes Electronic and Dual Zone).
  3. Remove the center HVAC air outlet. Refer to DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - CENTER .
  4. Remove the screws securing the I/P center trim panel.

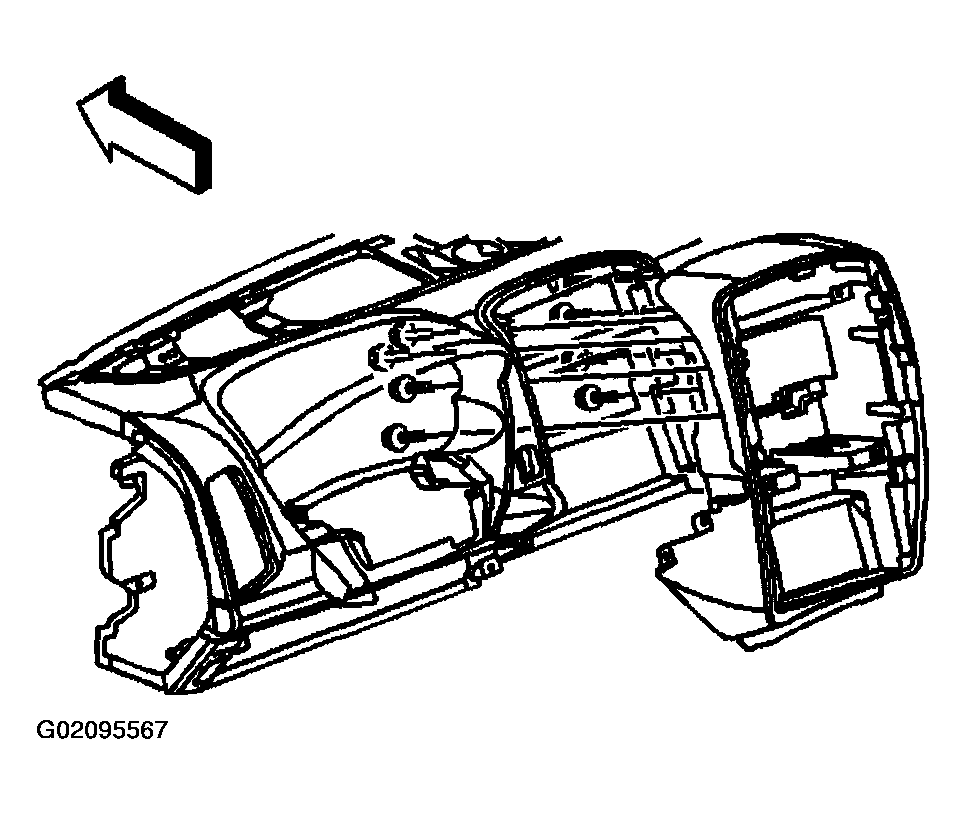

    Fig 1: Removing Screws And Instrument Panel Center Trim Panel
    G02095567Courtesy of GENERAL MOTORS CORP.
