Installation Procedure

  1. Position the center trim panel to the I/P.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws securing the I/P center trim panel.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the center HVAC air outlet. Refer to DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - CENTER .
  4. Install the HVAC control. Refer to HVAC CONTROL MODULE REPLACEMENT HVAC Systems with A/C - Automatic (Includes Electronic and Dual Zone).
  5. Install the radio. Refer to RADIO REPLACEMENT Entertainment.

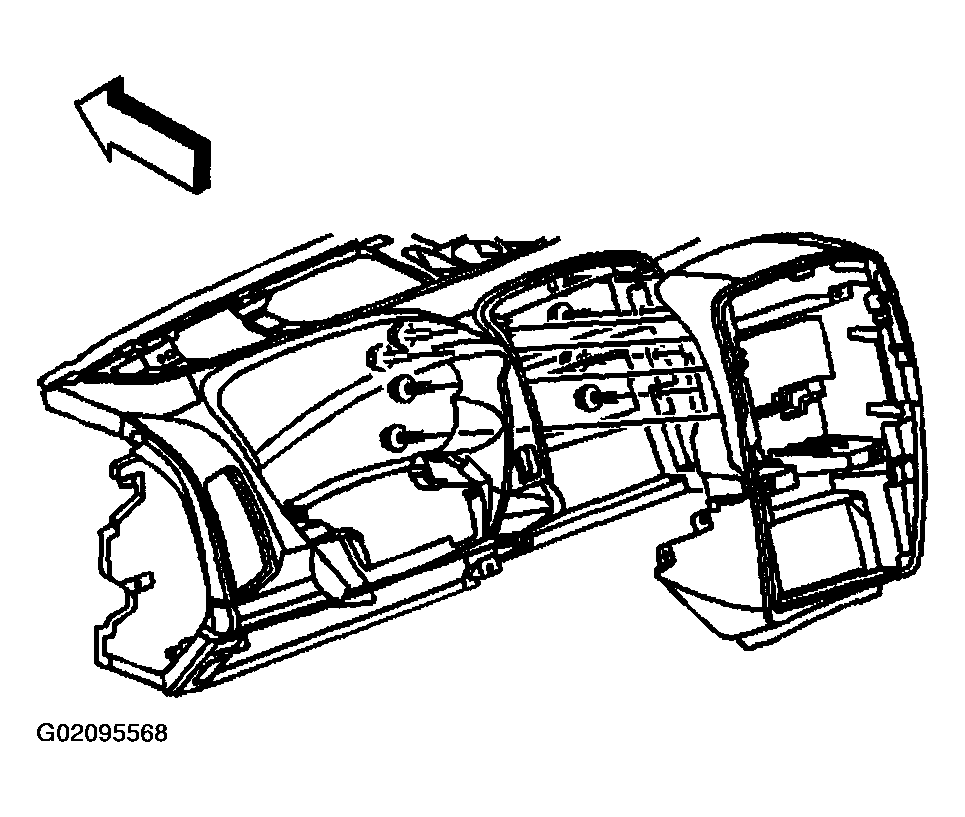

    Fig 1: Installing Instrument Panel Center Trim Panel And Screws
    G02095568Courtesy of GENERAL MOTORS CORP.
