Installation Procedure

  1. Install the sensor to the defroster grille (1).
  2. Connect the electrical connector (4).
  3. Install the defroster grille. Refer to DEFROSTER GRILLE REPLACEMENT  .

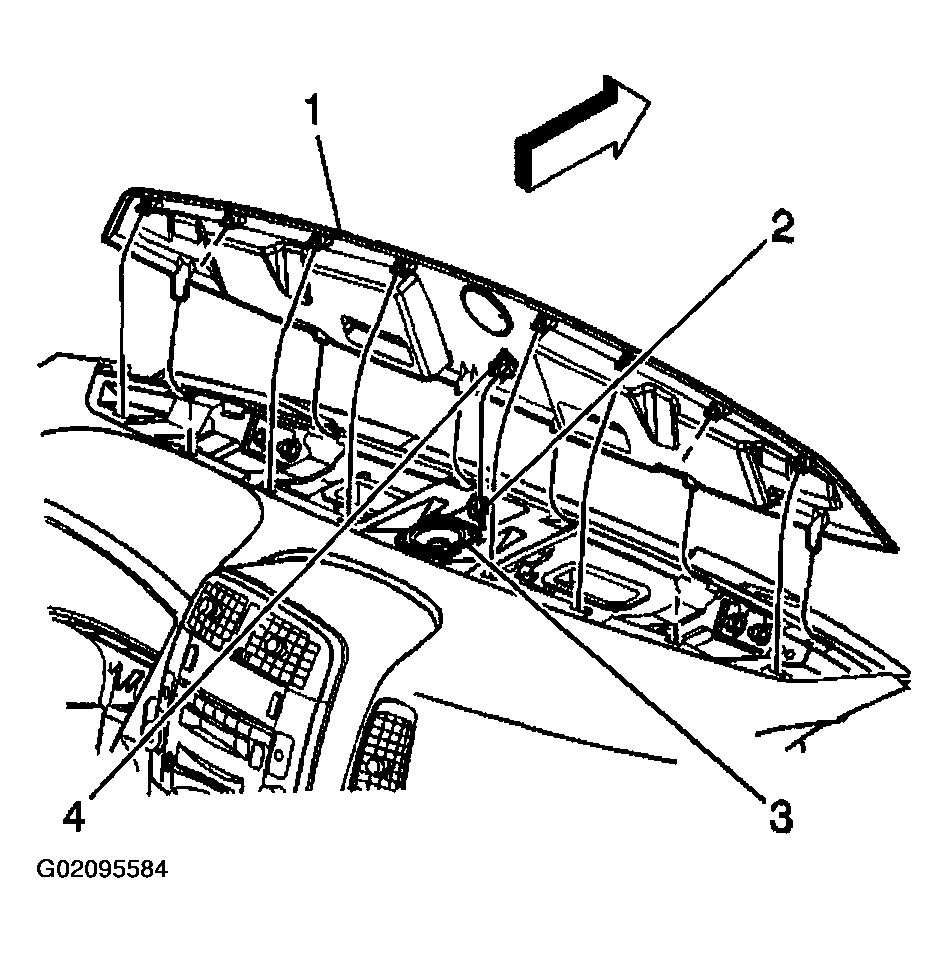

    Fig 1: Installing Sunload And Twilight Sentinel Sensor
    G02095584Courtesy of GENERAL MOTORS CORP.
