Removal Procedure

  1. Remove the left hand closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  .
  2. Remove the screws securing the park brake release lever.
  3. Disconnect the park brake release cable (1) from the lever.

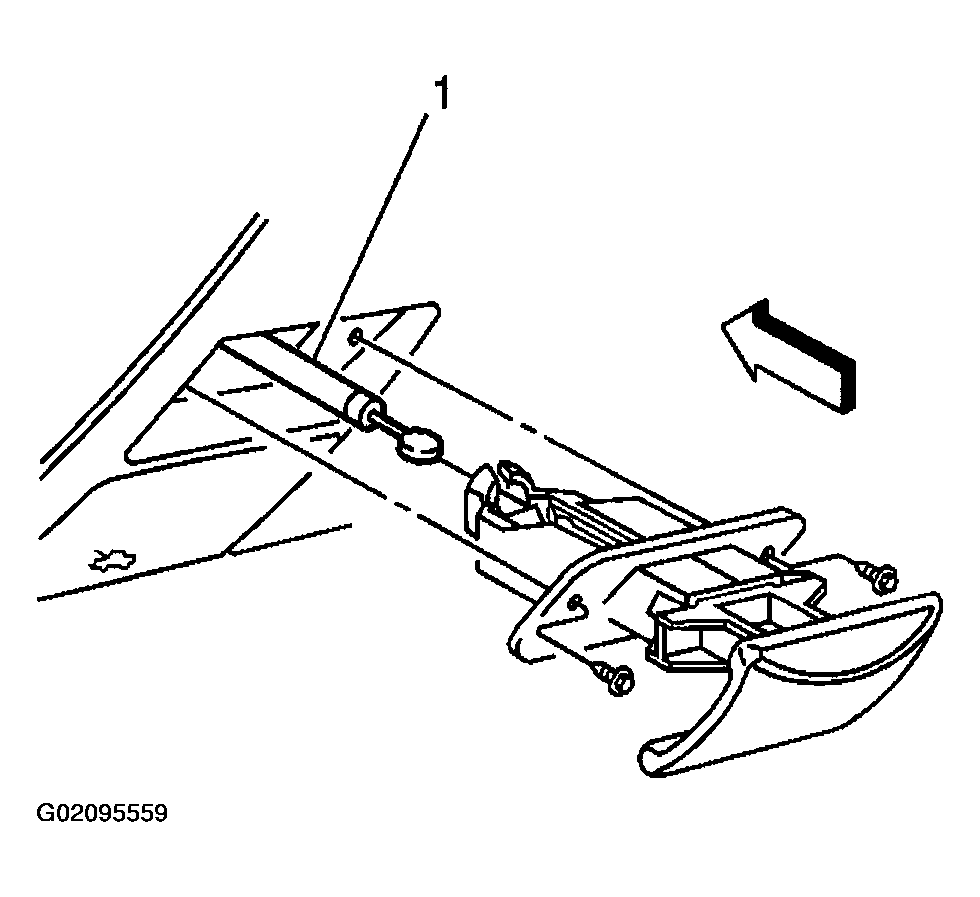

    Fig 1: Disconnecting Park Brake Release Cable From Lever
    G02095559Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws (3) securing the hood release lever.

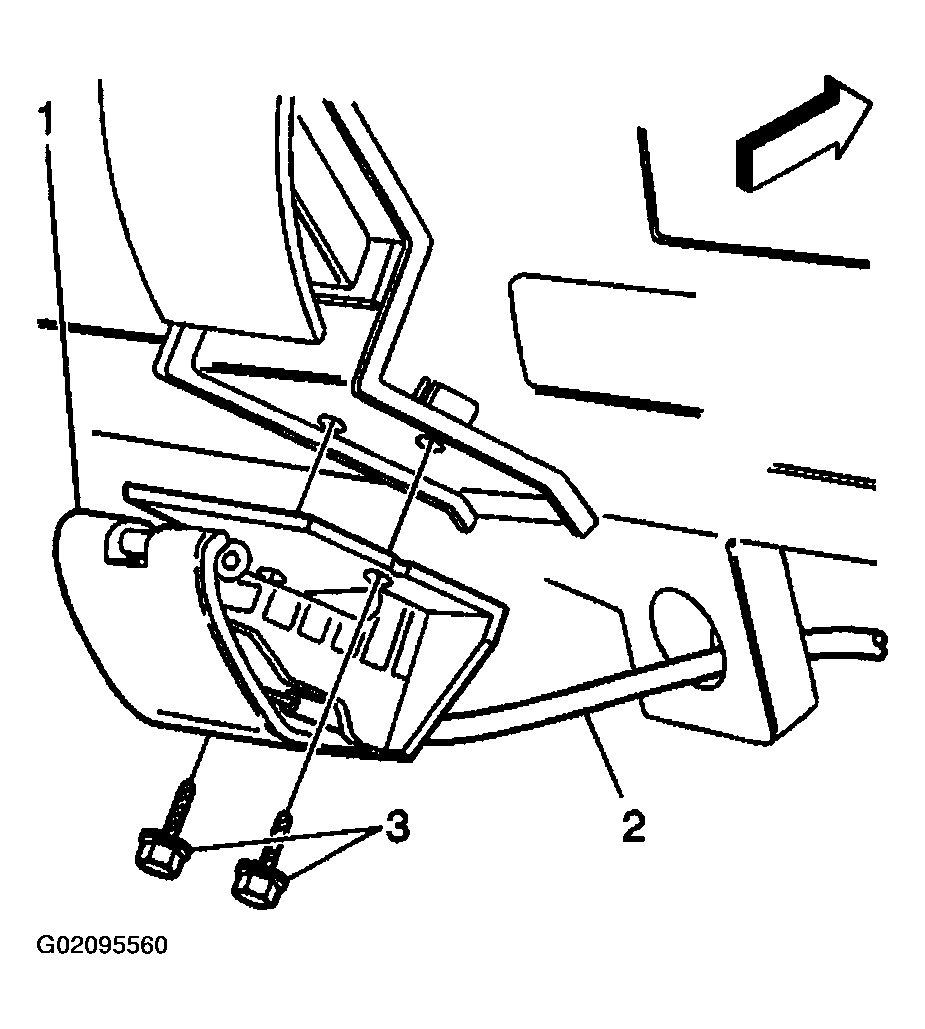

    Fig 2: Removing Screws Securing Hood Release Lever
    G02095560Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws (2) securing the knee bolster trim (1) to the knee bolster bracket.
  6. Remove the knee bolster trim (1).

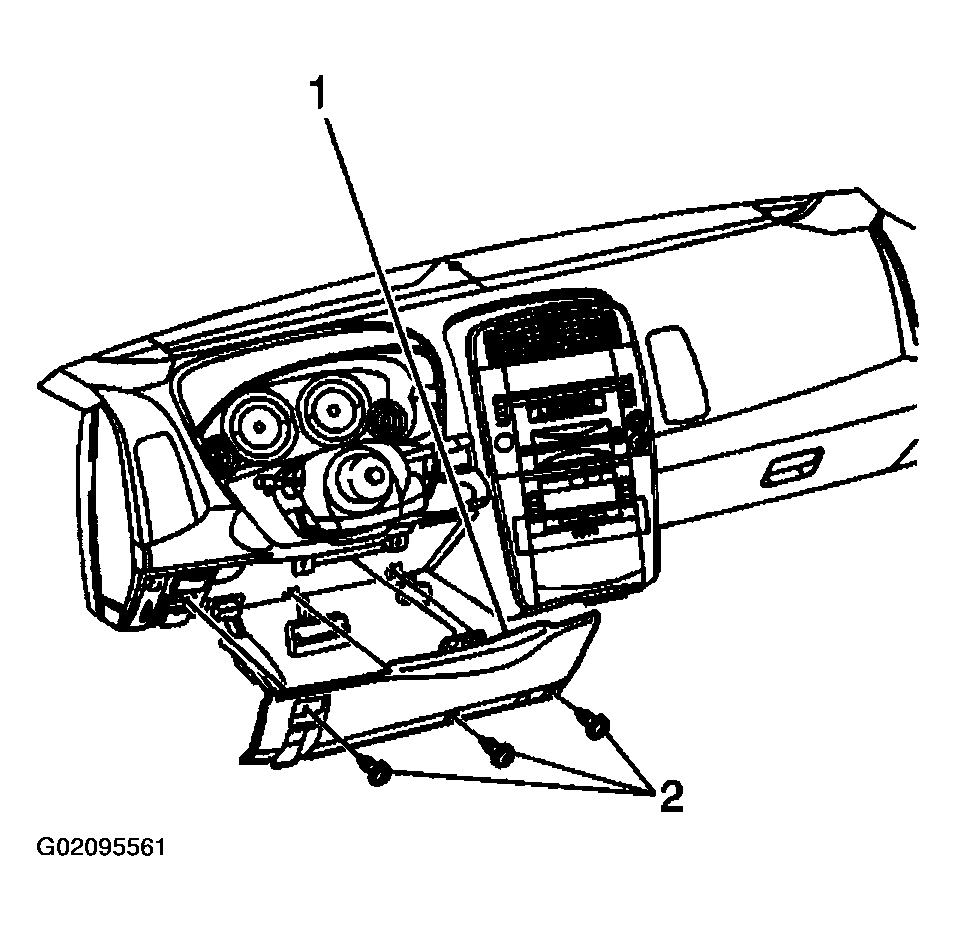

    Fig 3: Removing Screws And Knee Bolster Trim
    G02095561Courtesy of GENERAL MOTORS CORP.
