Removal Procedure

  1. Remove the knee bolster trim. Refer to KNEE BOLSTER REPLACEMENT  .
  2. Remove the screws (2) securing the knee bolster bracket to the I/P.
  3. Remove the knee bolster bracket.

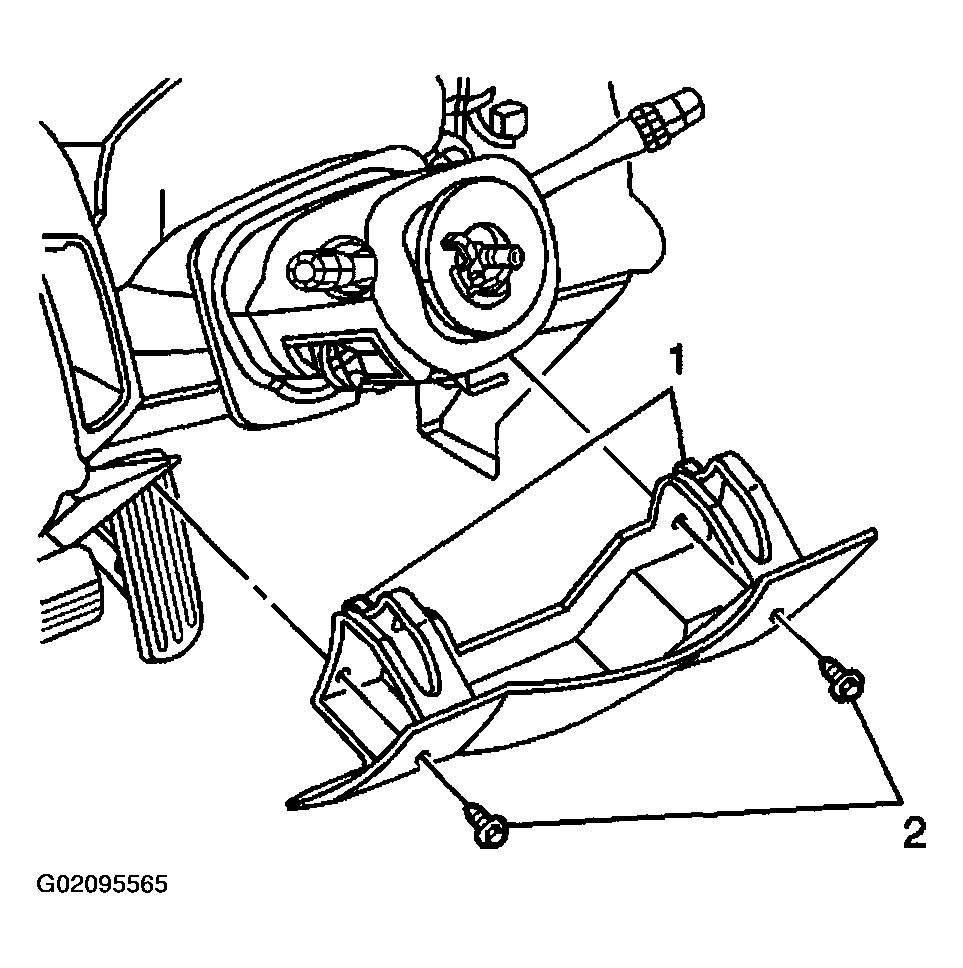

    Fig 1: Removing Left Knee Bolster Bracket
    G02095565Courtesy of GENERAL MOTORS CORP.
