Installation Procedure

  1. Align the tabs (1) to the I/P carrier in order to install the knee bolster bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (2) securing the knee bolster bracket to the I/P.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  3. Install the knee bolster trim. Refer to KNEE BOLSTER REPLACEMENT  .

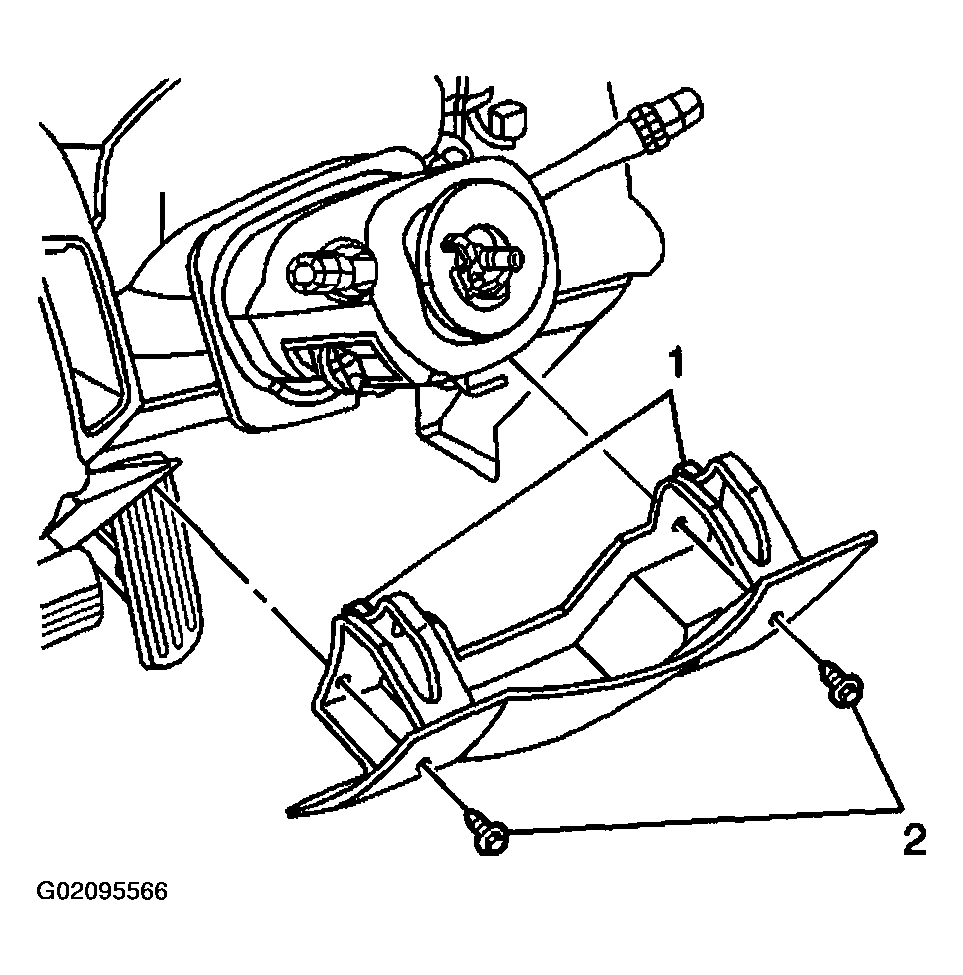

    Fig 1: Installing Left Knee Bolster Bracket
    G02095566Courtesy of GENERAL MOTORS CORP.
