Removal Procedure

  1. Remove the I/P cluster trim cover. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Remove the screws (2) securing the cluster to the I/P.

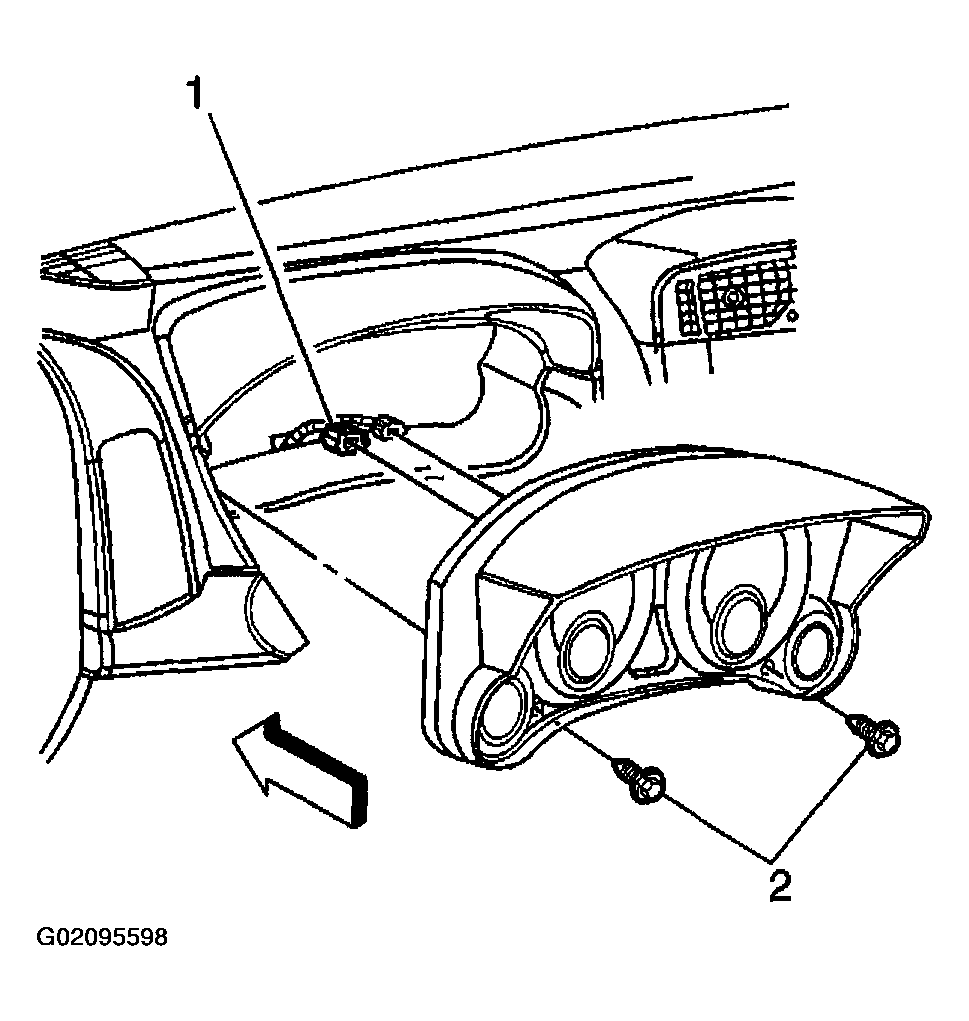

    Fig 1: Removing Screws Securing Cluster To Instrument Panel
    G02095598Courtesy of GENERAL MOTORS CORP.
  3. Install a small flat bladed tool (1) between the I/P cluster and the I/P.
  4. Pry up on the I/P in order to release the retainers on the cluster.
  5. Pull out on the cluster and disconnect the electrical connectors.

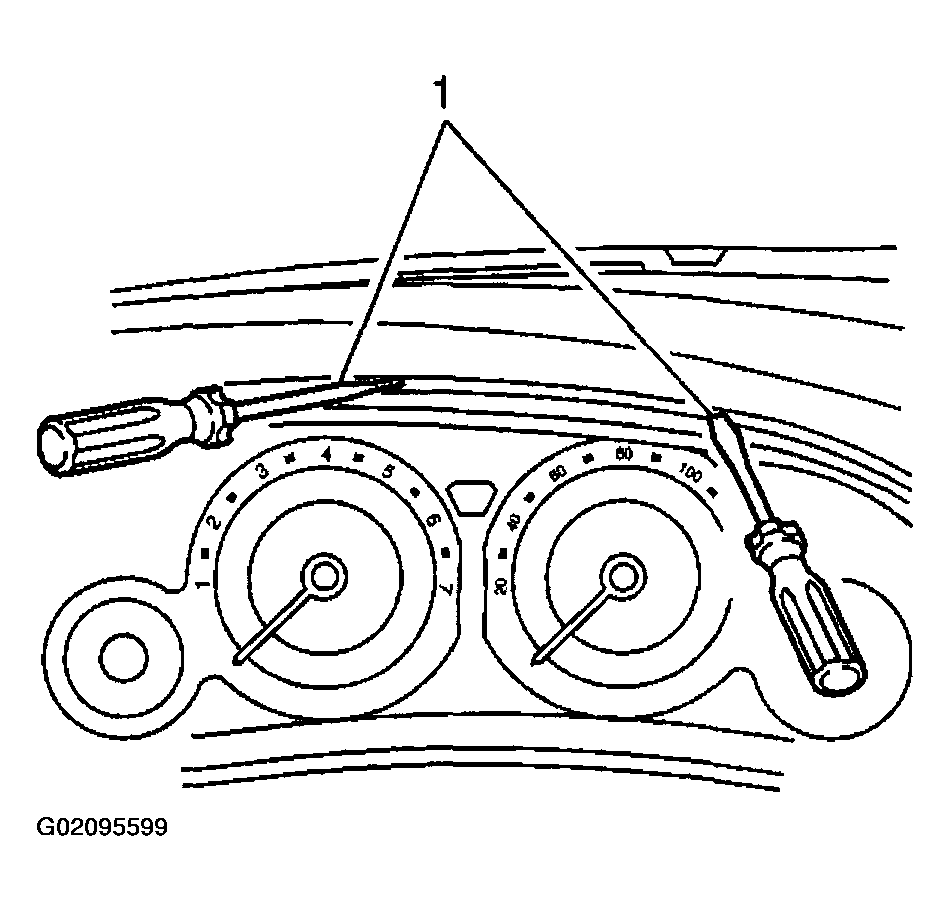

    Fig 2: Installing Flat Bladed Tool Between Cluster And Instrument Panel
    G02095599Courtesy of GENERAL MOTORS CORP.
