Removal Procedure

  1. Pull out on the outer trim cover (1) in order to release the retaining fasteners.
  2. Side the outer trim cover toward the rear of the vehicle.

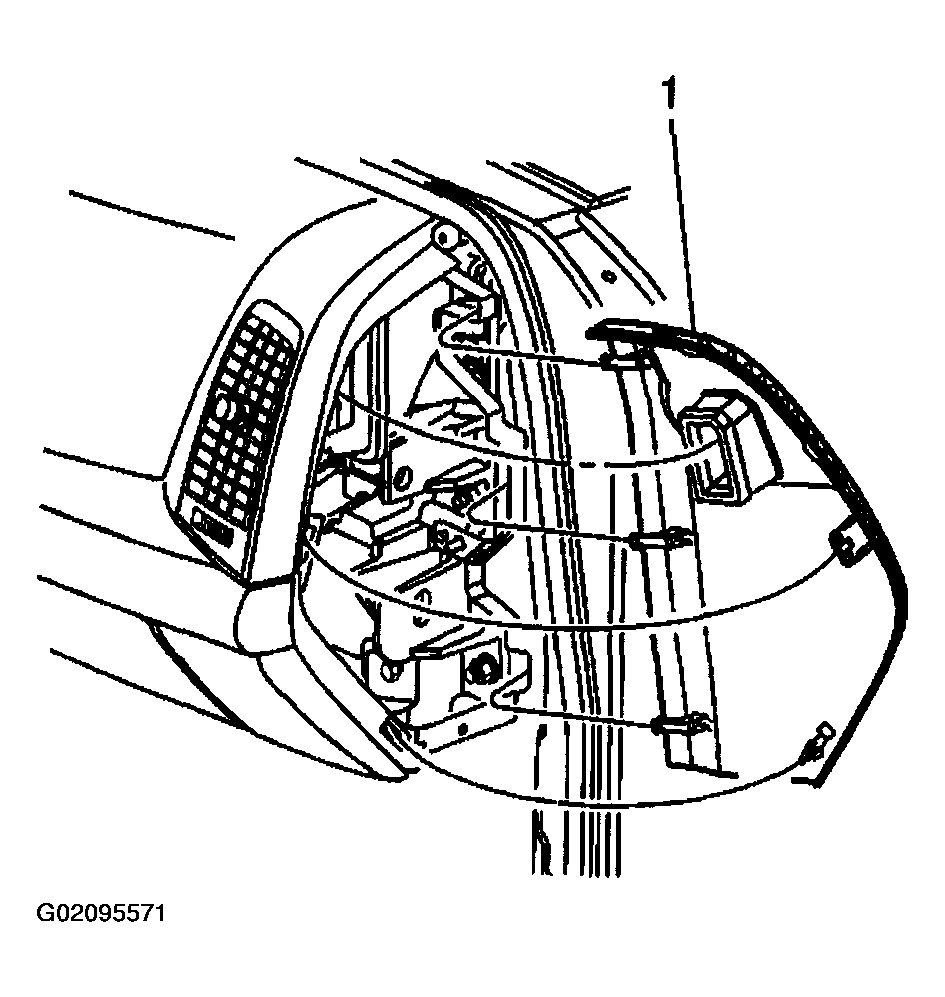

    Fig 1: Removing Right Side Instrument Panel Outer Trim Cover
    G02095571Courtesy of GENERAL MOTORS CORP.
