Installation Procedure

  1. Insert the tabs on the outer trim cover (1) onto the slots on the I/P.
  2. Align the retaining fasteners with the I/P.
  3. Push the outer trim in order to secure.

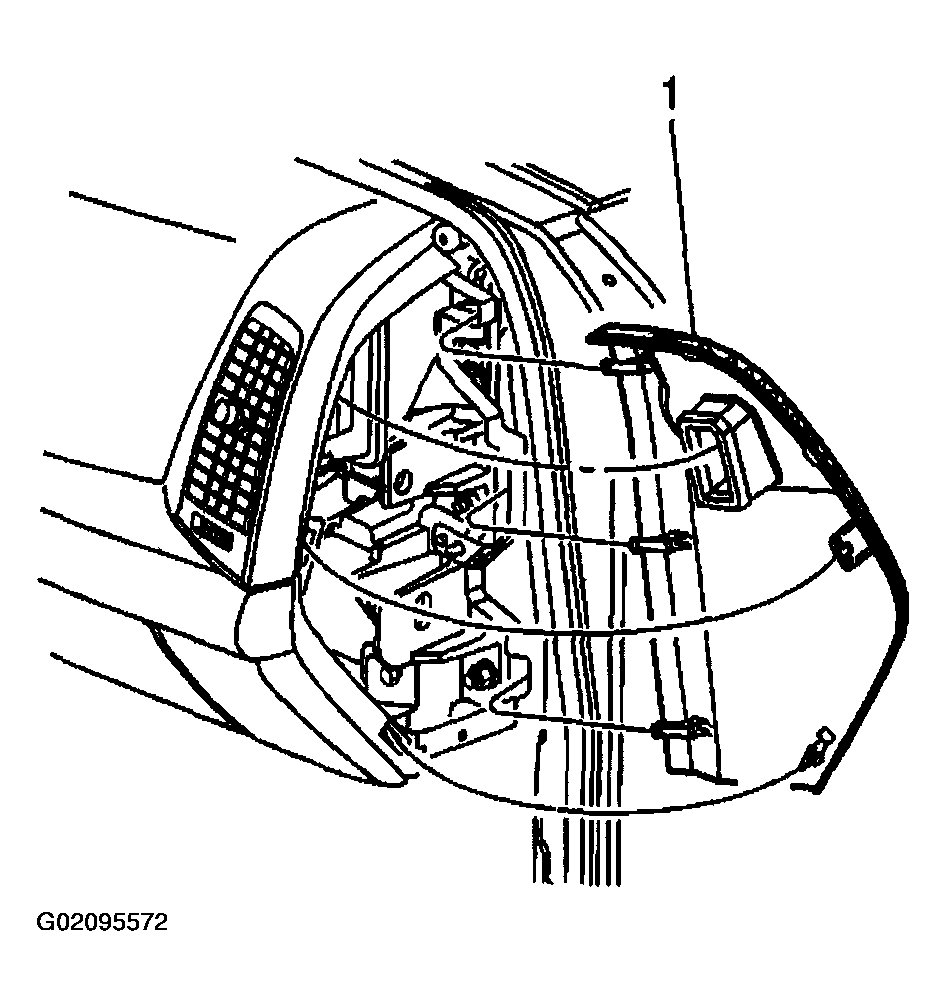

    Fig 1: Installing Right Side Instrument Panel Outer Trim Cover
    G02095572Courtesy of GENERAL MOTORS CORP.
