Removal Procedure

  1. Pull out on the outer trim cover (1) in order to release the retaining fasteners.
  2. Side the outer trim toward the rear of the vehicle.

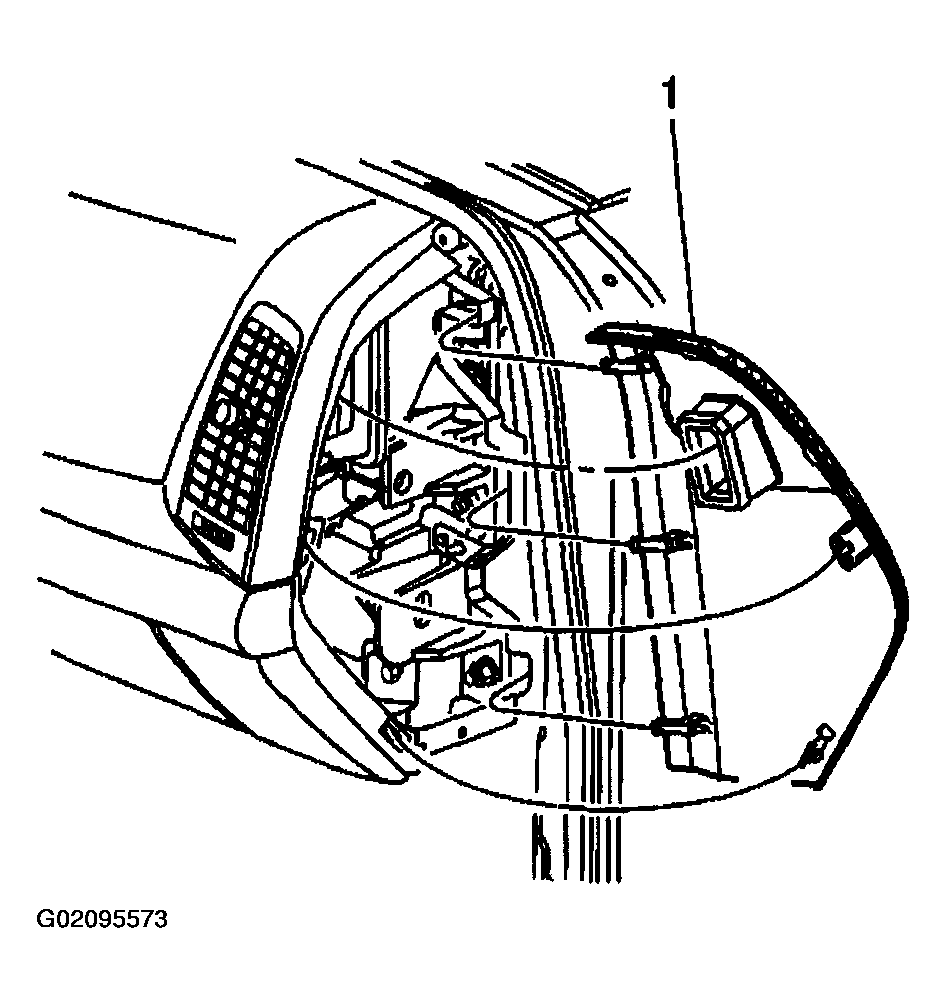

    Fig 1: Removing Left Side Instrument Panel Outer Trim Cover
    G02095573Courtesy of GENERAL MOTORS CORP.
