Installation Procedure

  1. Insert the tabs on the outer trim cover (1) onto the slots on the I/P.
  2. Align the retaining fasteners with the I/P.
  3. Push the outer trim in order to secure the retaining tabs.

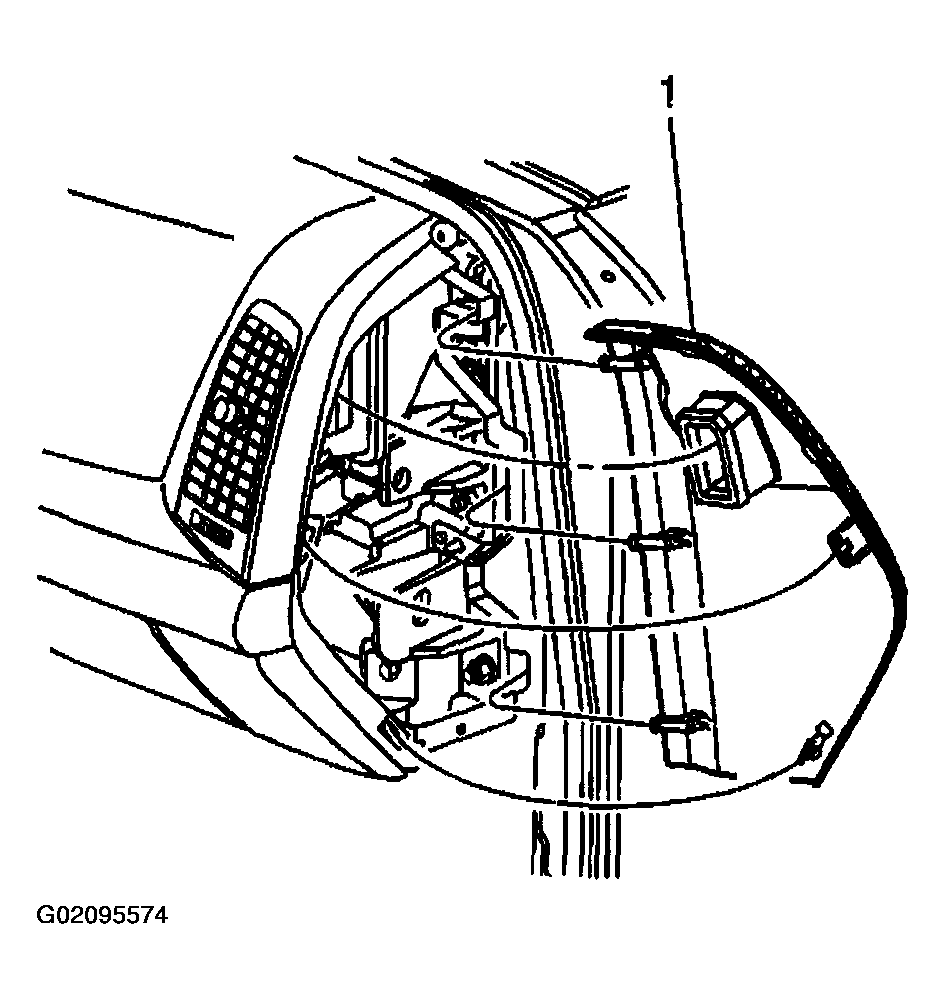

    Fig 1: Installing Left Side Instrument Panel Outer Trim Cover
    G02095574Courtesy of GENERAL MOTORS CORP.
