Installation Procedure

  1. Line up the tabs on the front of the defroster grille with the holes on the I/P retainer.
  2. Connect the sunload sensor wiring connector (4).
  3. Lower the grille (1) and seat the retainers on the I/P.

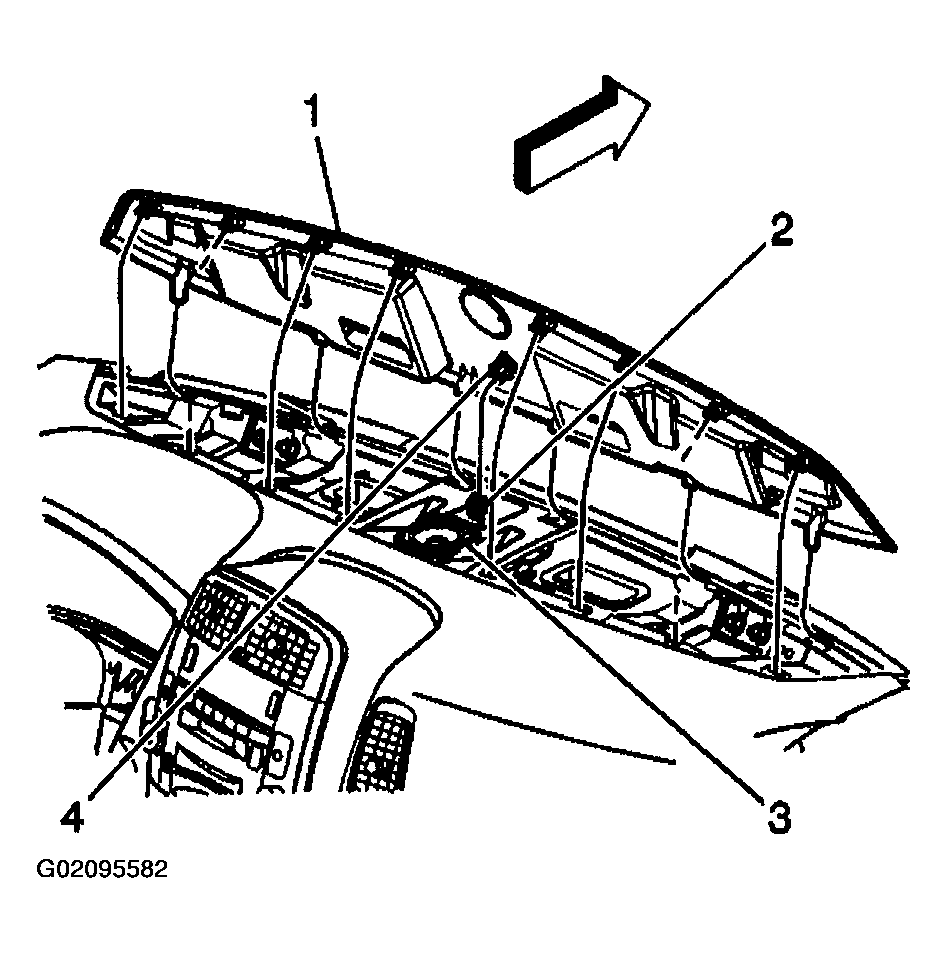

    Fig 1: Installing Defroster Grille
    G02095582Courtesy of GENERAL MOTORS CORP.
