Repair Procedure

  1. Remove the shifter trim cover (1).

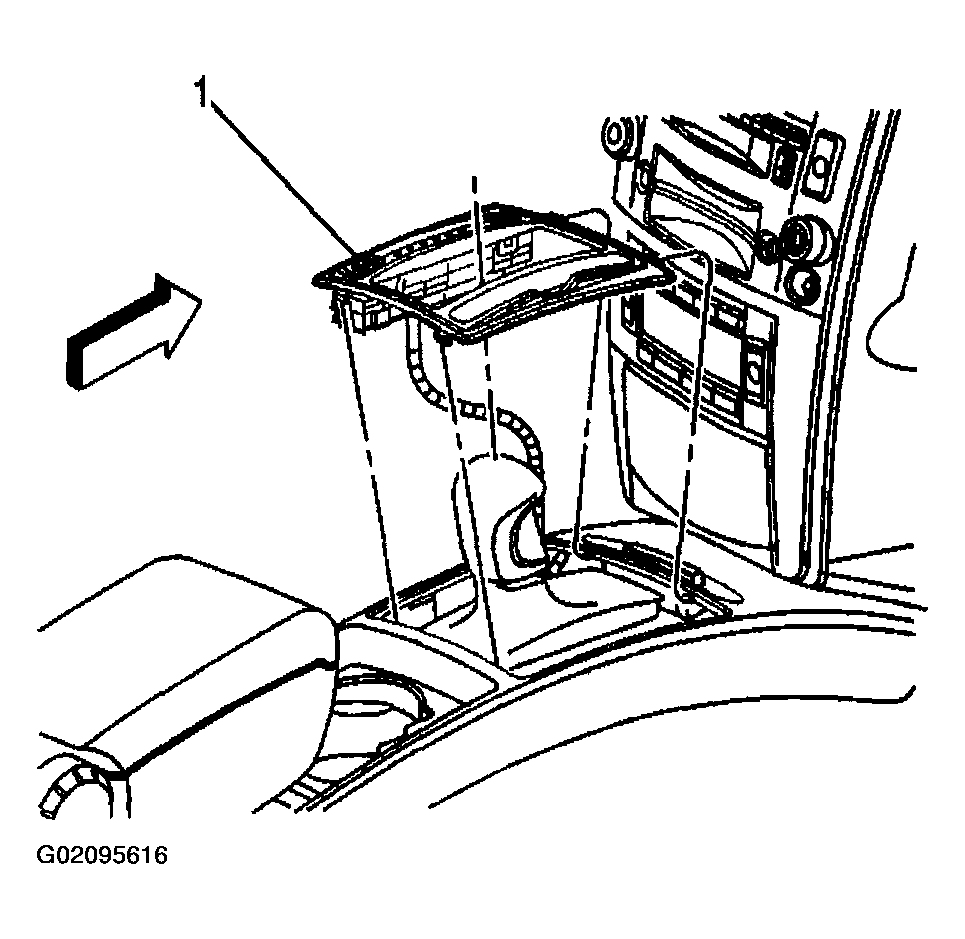

    Fig 1: Removing Shifter Trim Cover
    G02095616Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector (2) from the shifter trim cover (1).

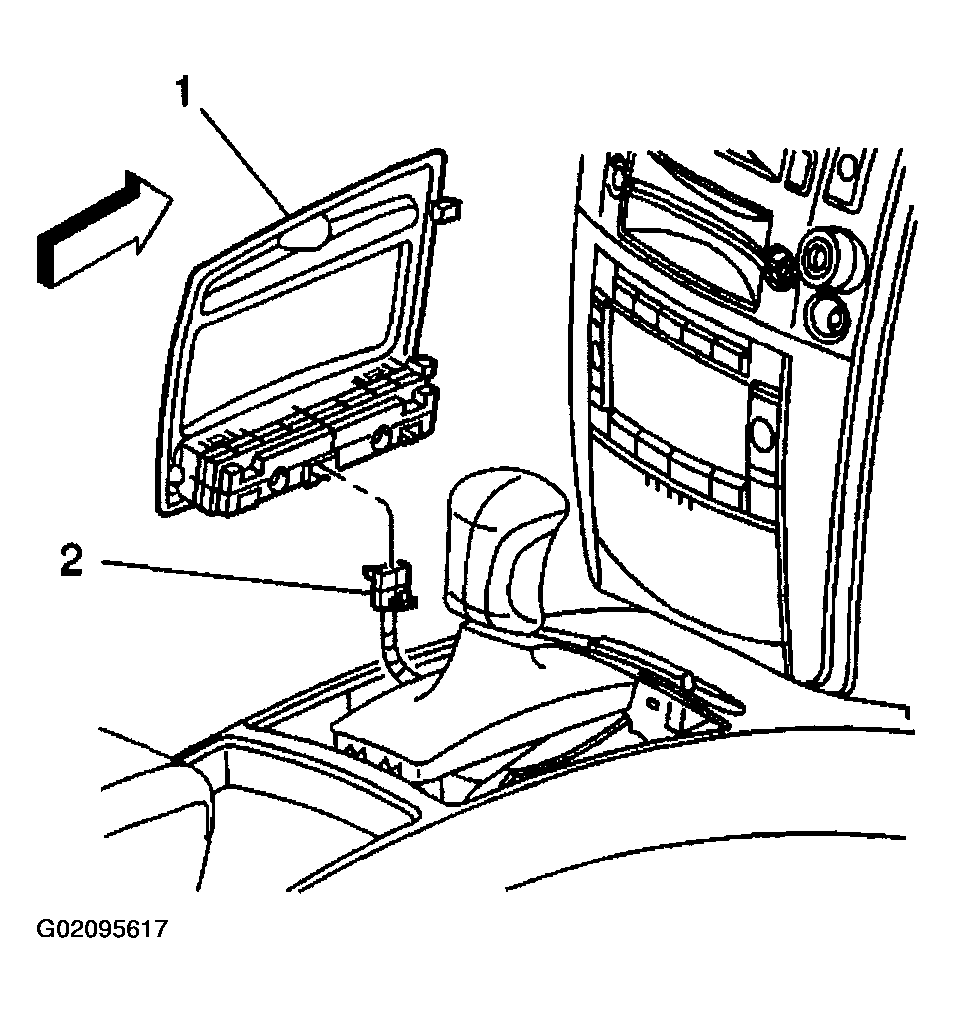

    Fig 2: Disconnecting Electrical Connector From Shifter Trim Cover
    G02095617Courtesy of GENERAL MOTORS CORP.
  3. Remove the console side trim panels (1).

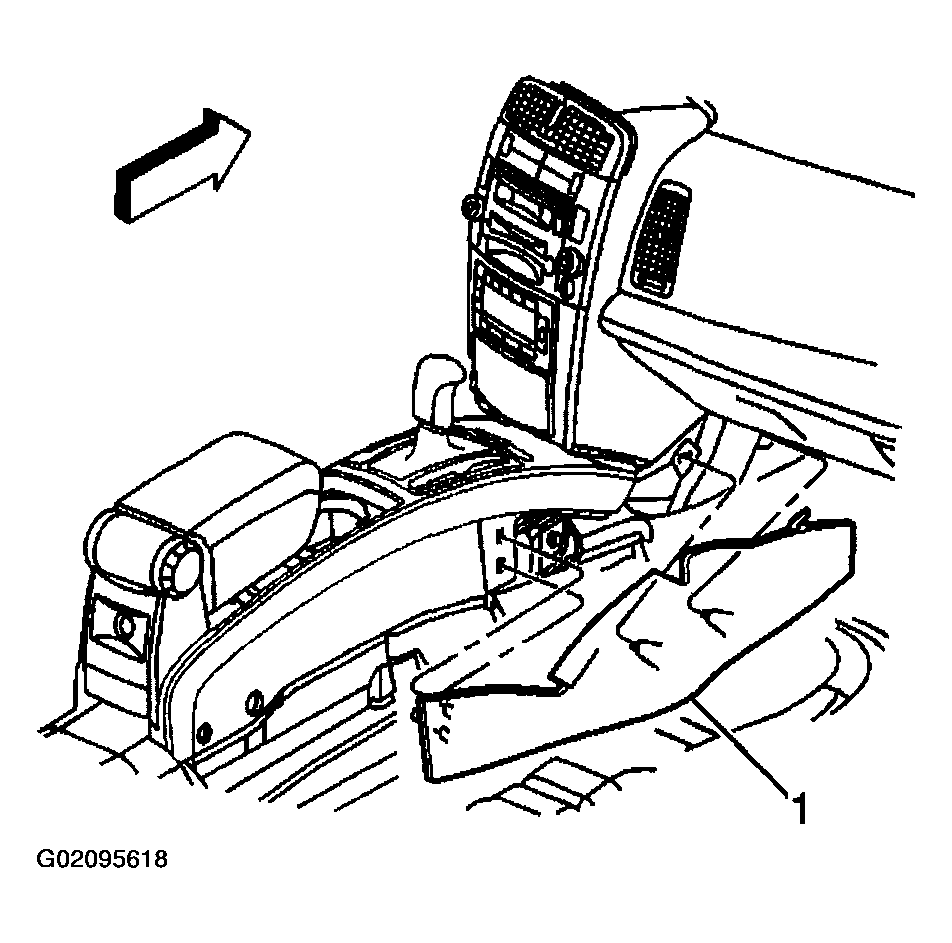

    Fig 3: Removing Console Side Trim Panels
    G02095618Courtesy of GENERAL MOTORS CORP.
  4. Remove the 6 screws (1) securing the console to the floor.
  5. Remove the console from the vehicle.

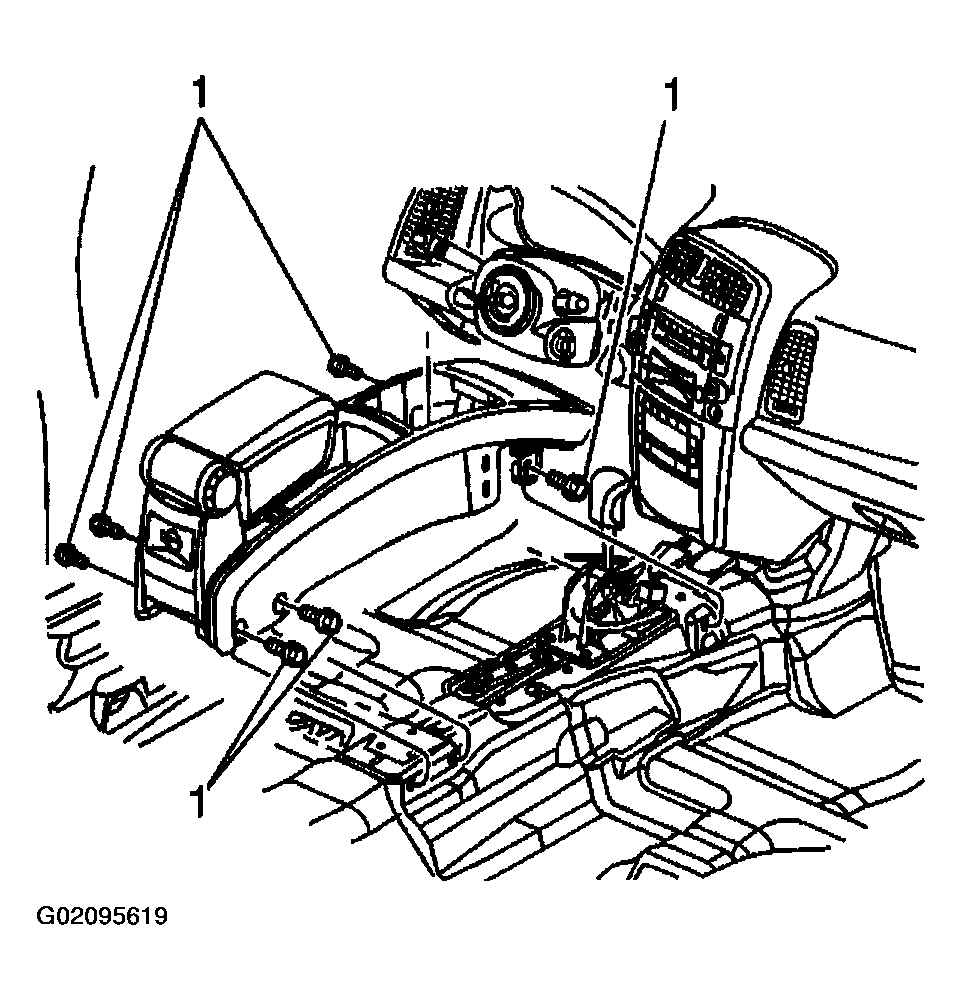

    Fig 4: Removing Screws Securing Console To Floor
    G02095619Courtesy of GENERAL MOTORS CORP.
