Installation Procedure

  1. Position the console on the floor of the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (1) securing the console to the floor.

    Tighten

    Tighten the fasteners to 25 N.m (18 lb ft).

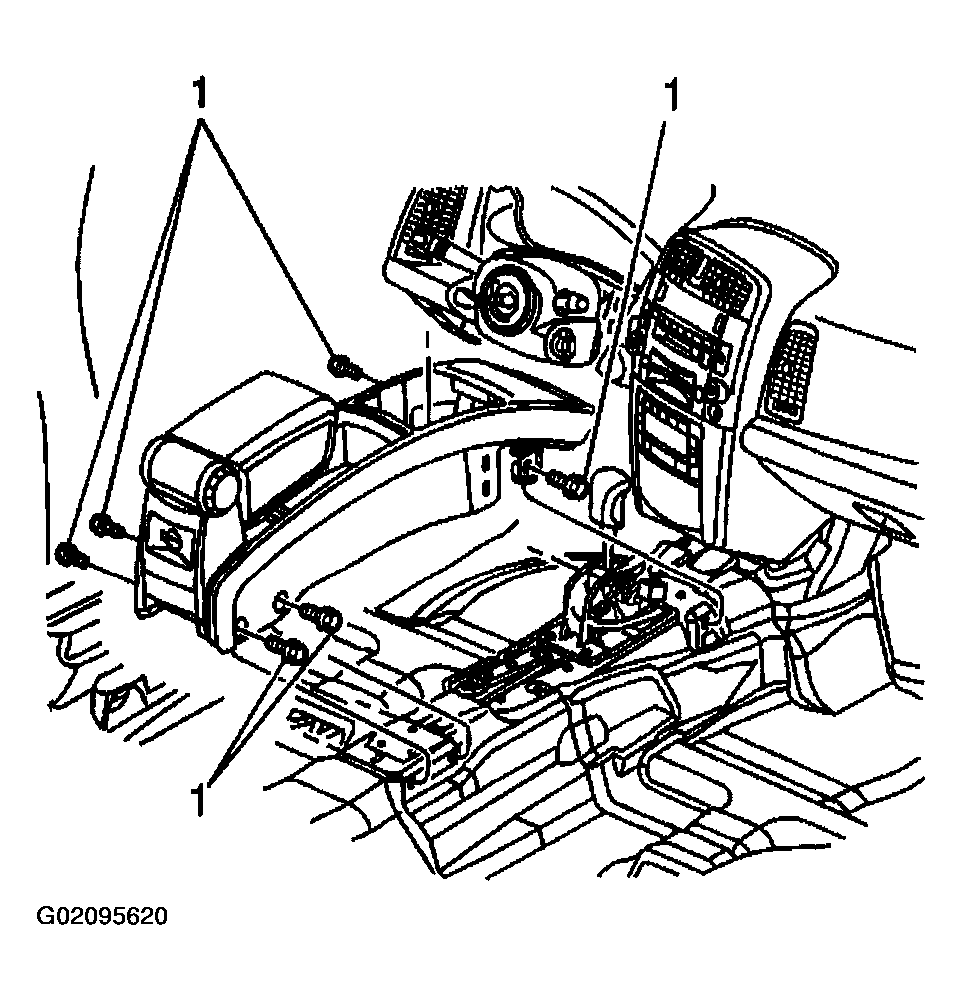

    Fig 1: Installing Screws Securing Console To Floor
    G02095620Courtesy of GENERAL MOTORS CORP.
  3. Install the console side trim panels (1).
    Fig 2: Installing Console Side Trim Panels
    G02095621Courtesy of GENERAL MOTORS CORP.
  4. Install the shift indicator lamp electrical connector (2).

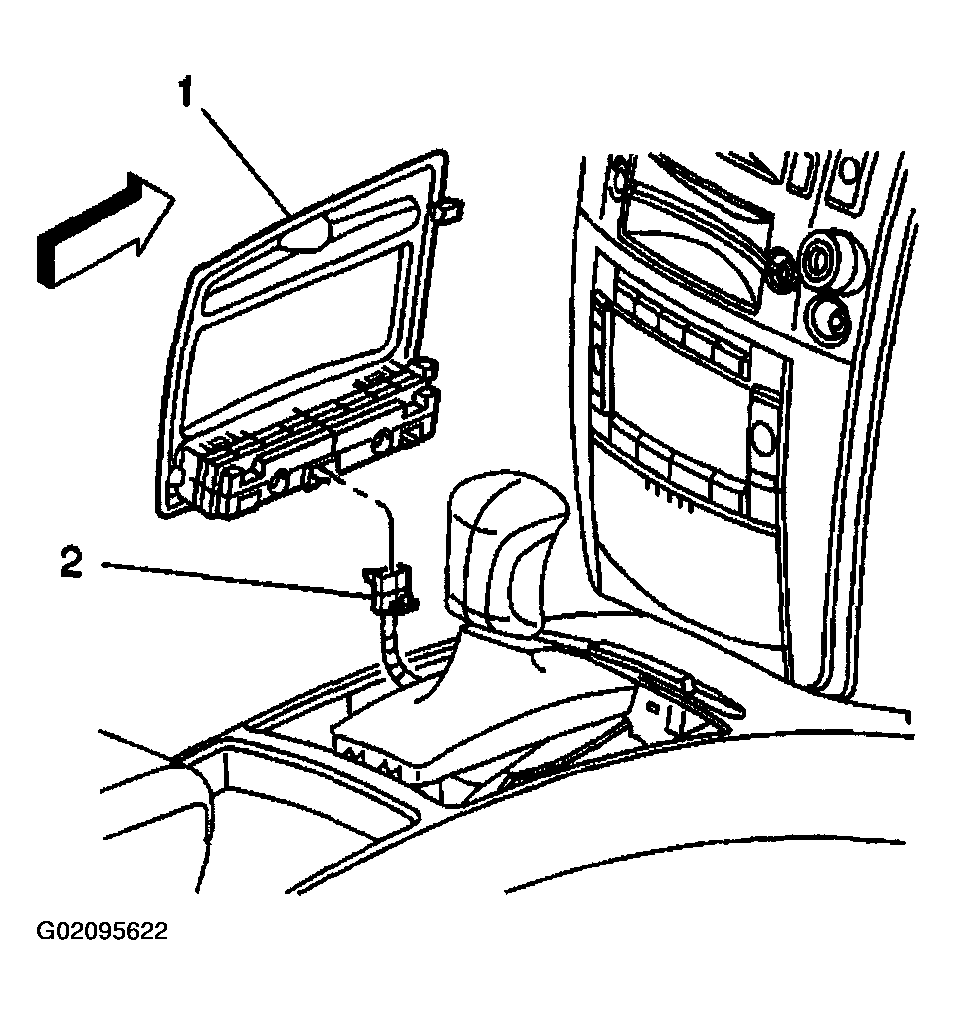

    Fig 3: Installing Shift Indicator Lamp Electrical Connector
    G02095622Courtesy of GENERAL MOTORS CORP.
  5. Install the shifter trim cover (1).
    Fig 4: Installing Shifter Trim Cover
    G02095623Courtesy of GENERAL MOTORS CORP.
