Repair Procedure

  1. Insert a small screwdriver into the bottom access hole (1) in the side covers in order to release the locking tabs.
    Fig 1: Locating Bottom Access Hole In Side Cover
    G02095624Courtesy of GENERAL MOTORS CORP.
  2. Release the tabs (1) securing the top cover.
    Fig 2: Releasing Tabs Securing Top Cover
    G02095625Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws (1) securing the armrest to the console.
    Fig 3: Removing Screws Securing Armrest To Console
    G02095626Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws (1) retaining the armrest to the console tray.
  5. Remove the armrest.

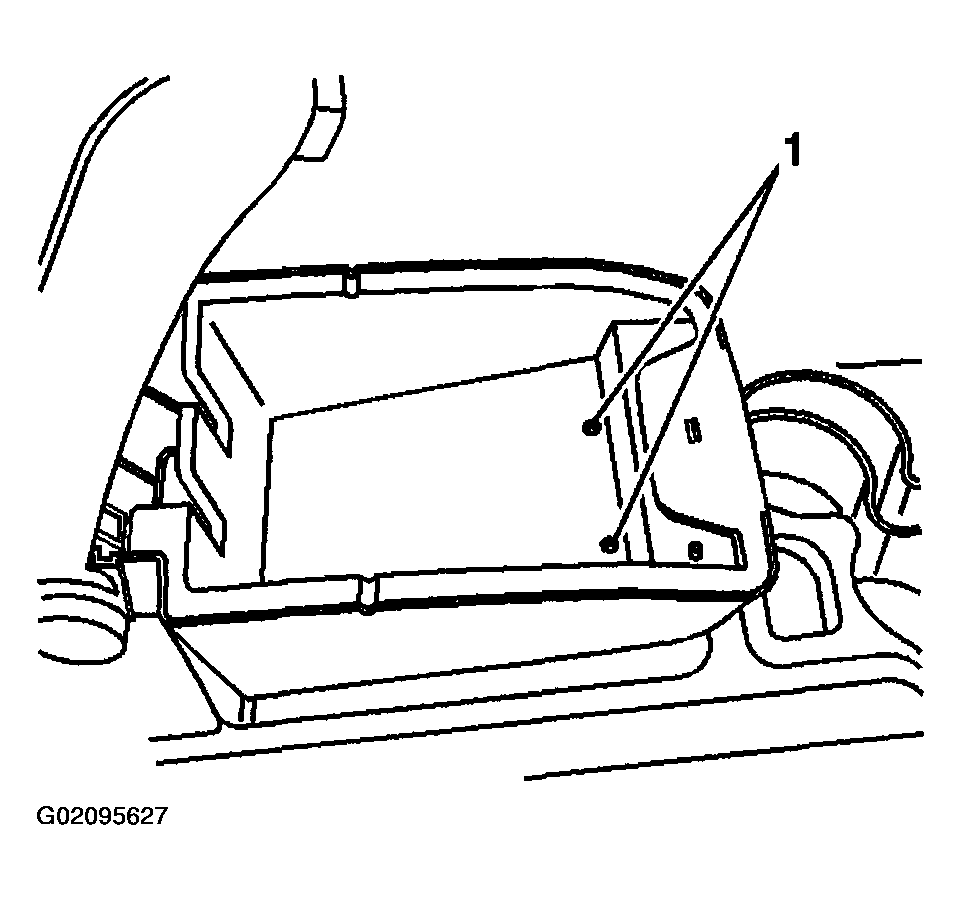

    Fig 4: Removing Screws Retaining Armrest To Console Tray
    G02095627Courtesy of GENERAL MOTORS CORP.
