Installation Procedure

  1. Install the armrest.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (1) securing the armrest to the console tray.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

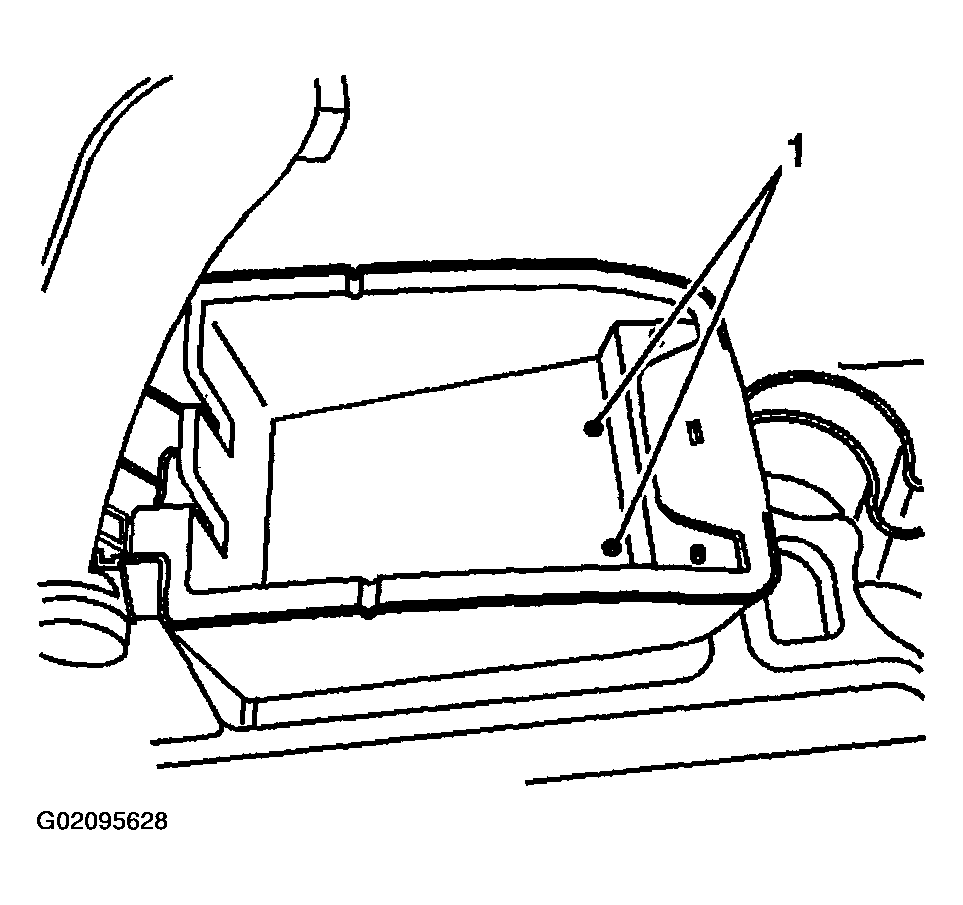

    Fig 1: Installing Screws Securing Armrest To Console Tray
    G02095628Courtesy of GENERAL MOTORS CORP.
  3. Install the screws (1) securing the armrest to the console.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

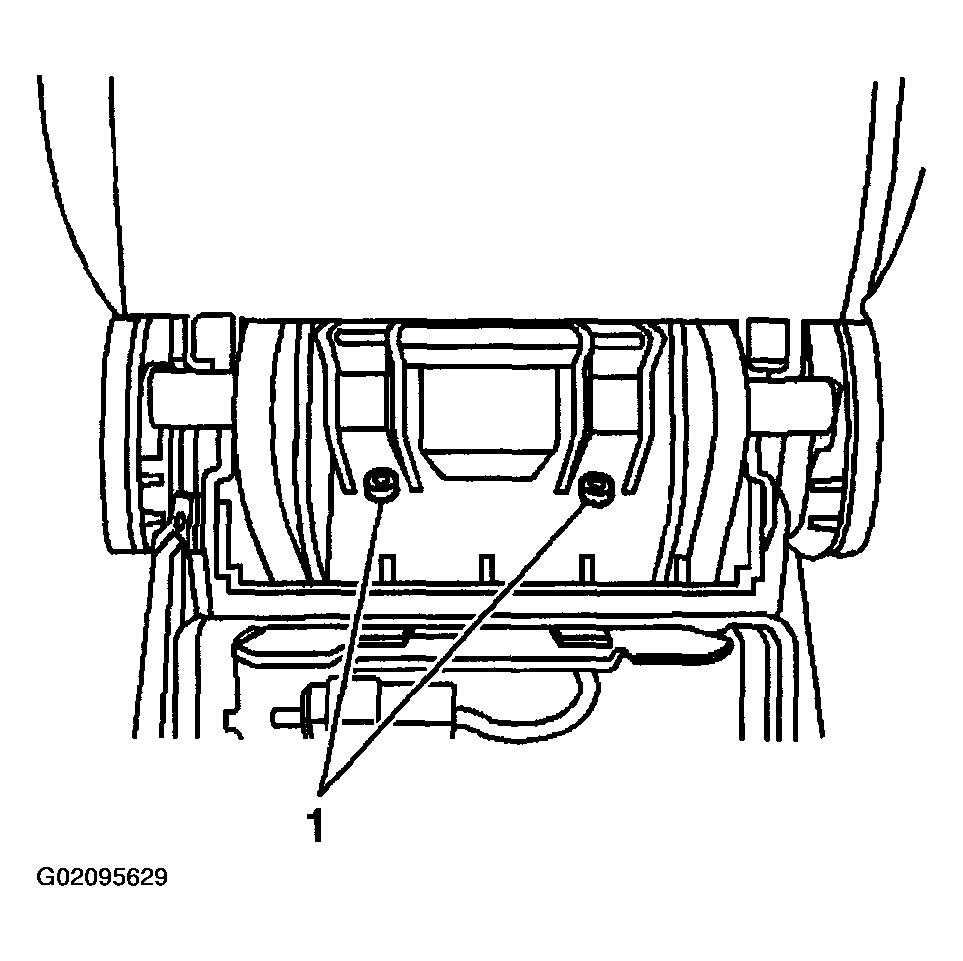

    Fig 2: Installing Screws Securing Armrest To Console
    G02095629Courtesy of GENERAL MOTORS CORP.
  4. Install the top cover.
  5. Insure the tabs (1) securing the top cover are locked into place.
  6. Reinstall the side covers.

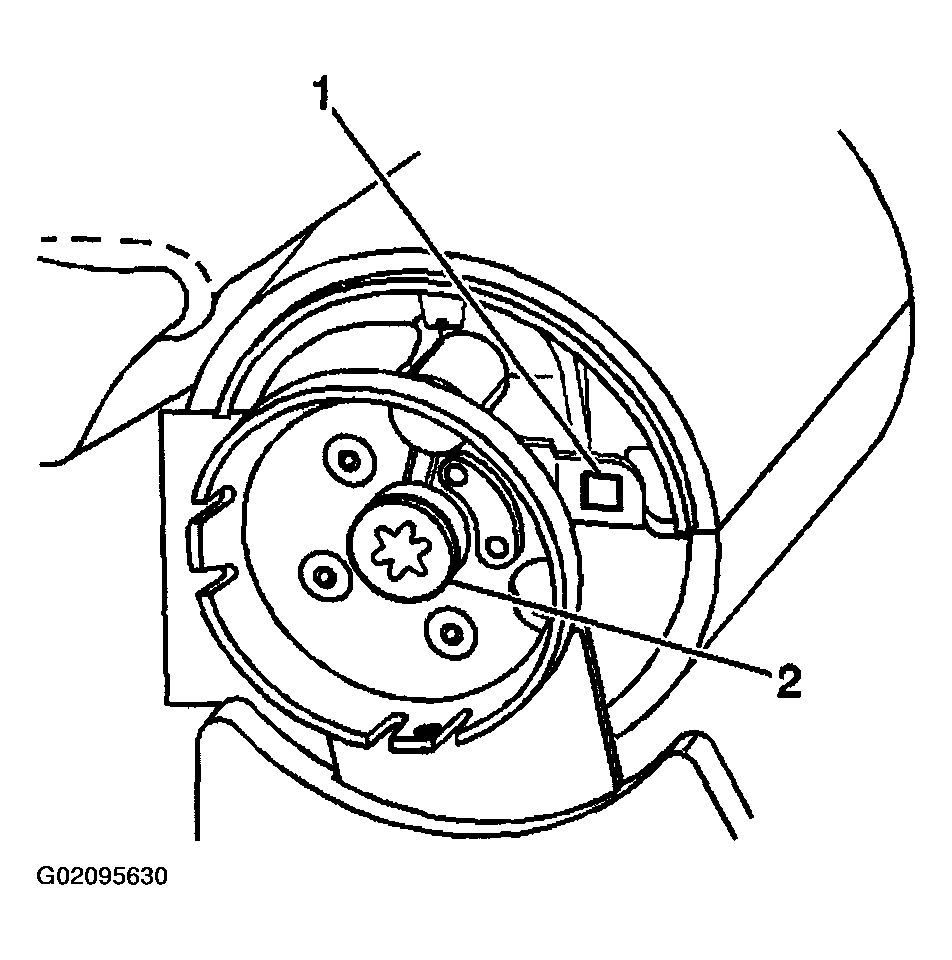

    Fig 3: Installing Top And Side Covers
    G02095630Courtesy of GENERAL MOTORS CORP.
