Removal Procedure

  1. Open the I/P compartment door
  2. Release the tabs (1) on inboard side of the door arms.

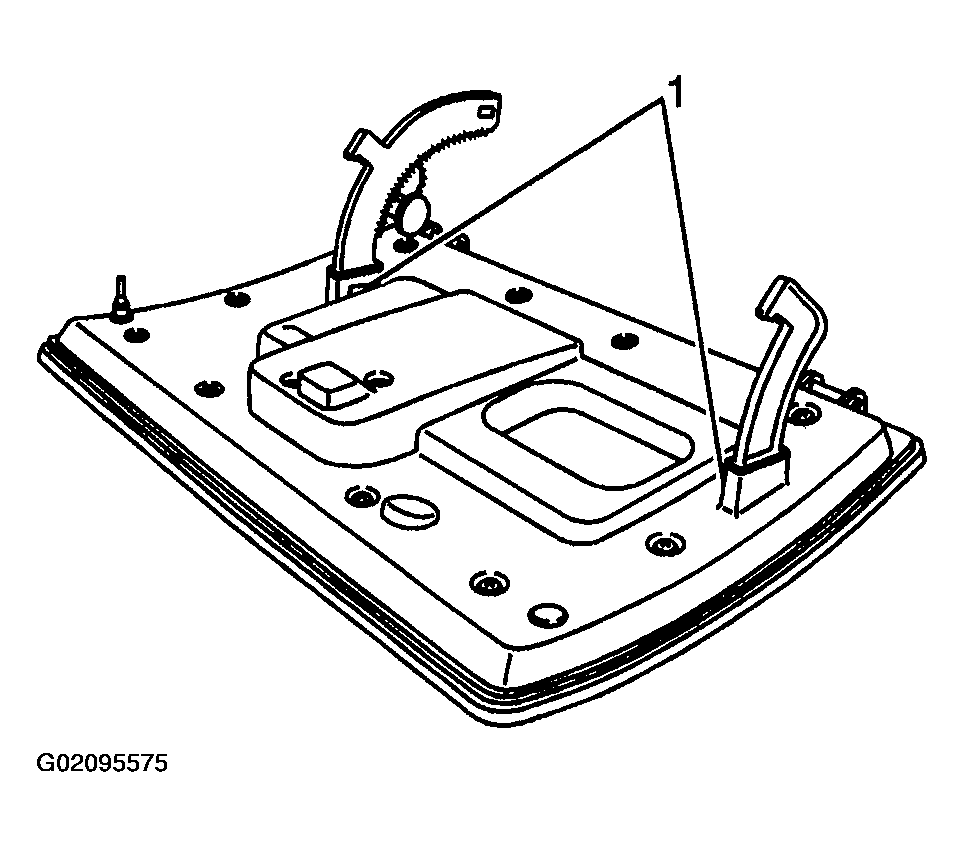

    Fig 1: Releasing Tabs On Inboard Side Of Door Arms
    G02095575Courtesy of GENERAL MOTORS CORP.
  3. Lower the door all the way down.
  4. Remove the screws securing the I/P compartment door.

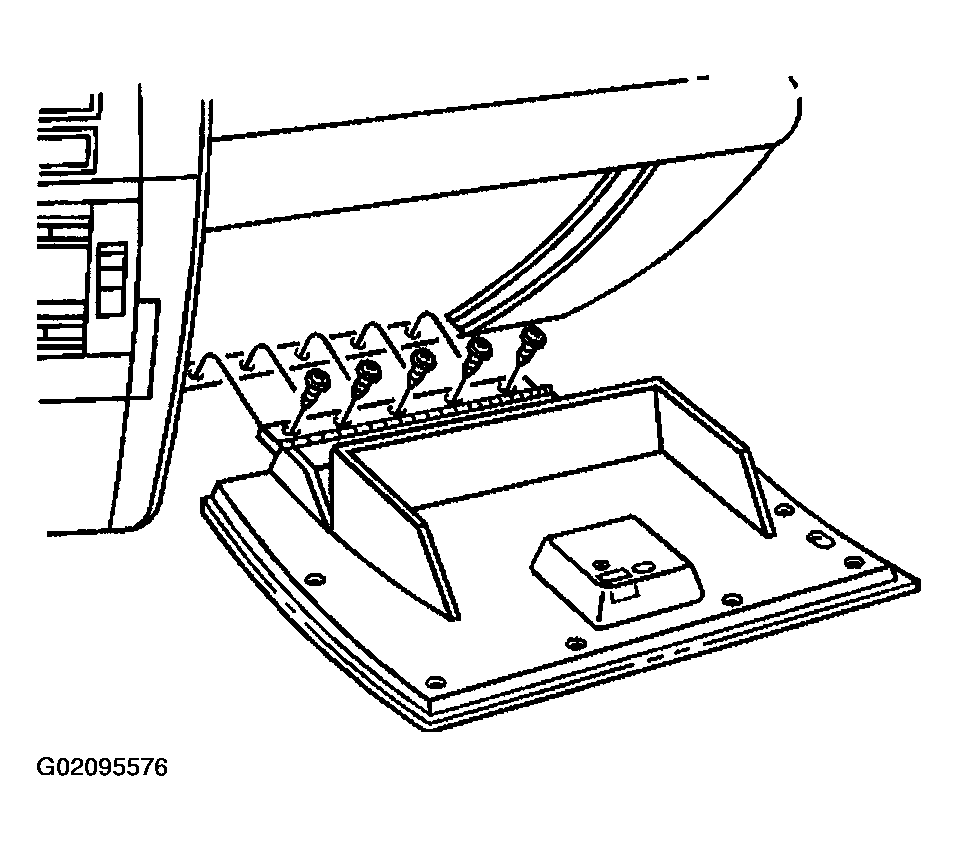

    Fig 2: Removing Screws Securing Instrument Panel Compartment Door
    G02095576Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws (2) securing the I/P compartment.

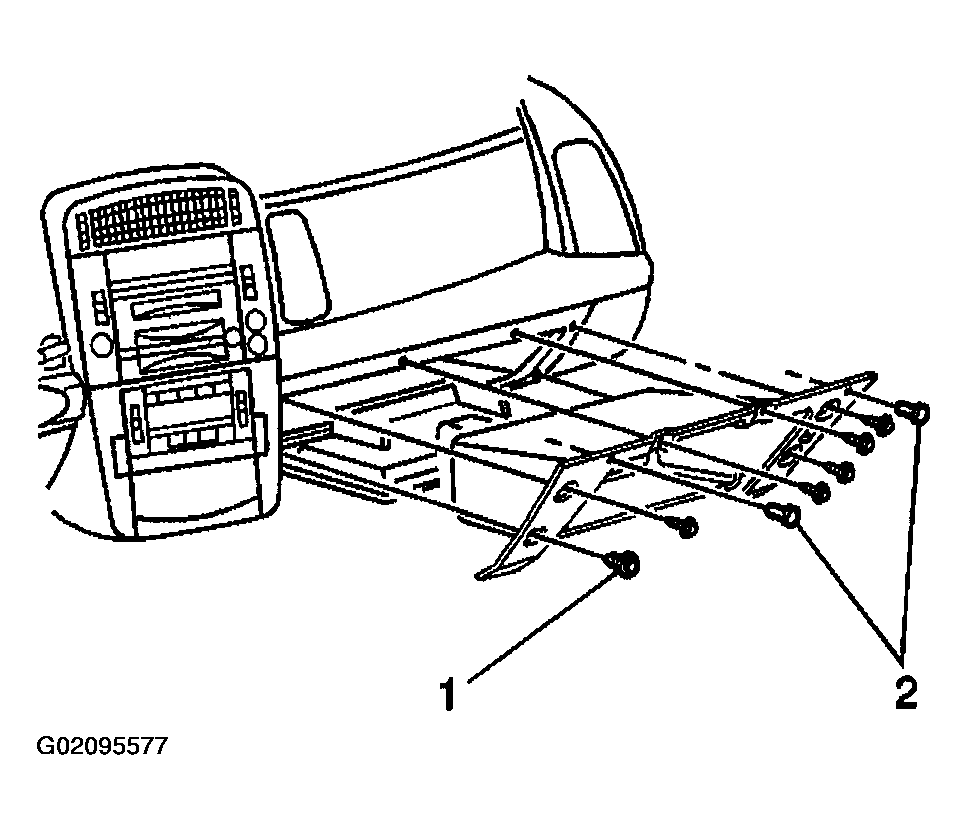

    Fig 3: Removing Screws Securing Instrument Panel Compartment
    G02095577Courtesy of GENERAL MOTORS CORP.
