Installation Procedure

Position the I/P compartment onto the I/P retainer.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws (2) securing the I/P compartment.
Tighten

Tighten the screws to 2 N.m (18 lb in).

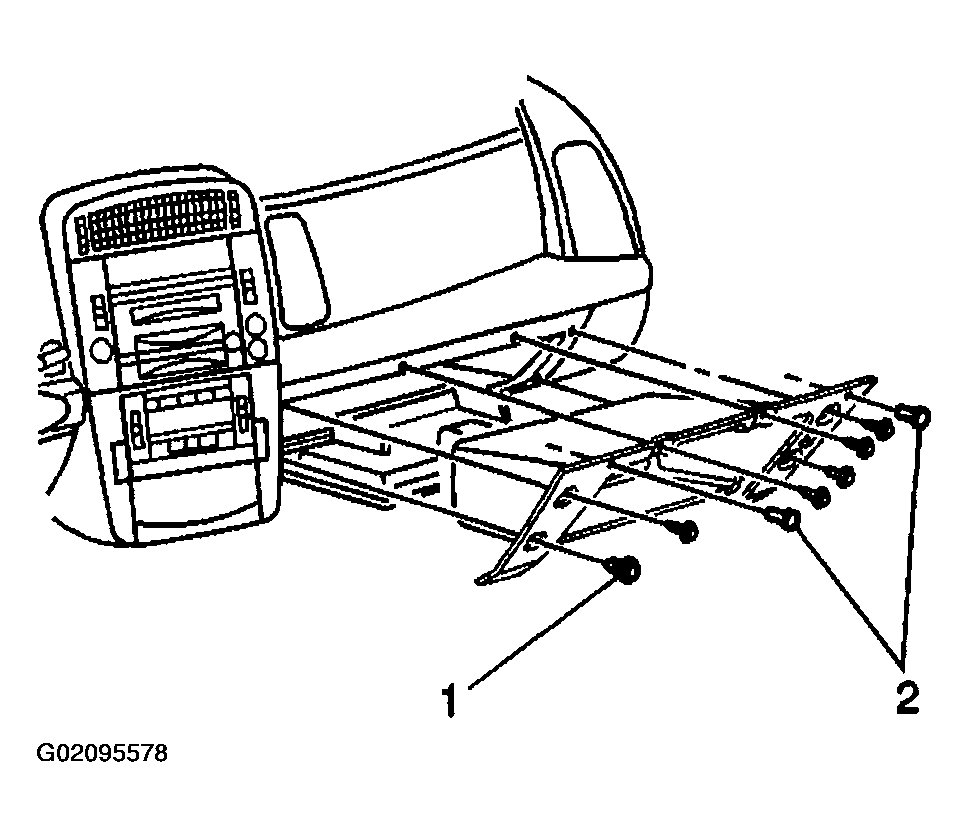

Fig 1: Installing Screws Securing Instrument Panel Compartment
Courtesy of GENERAL MOTORS CORP.
Install the I/P compartment door.
Tighten

Tighten the screws to 2 N.m (18 lb in).

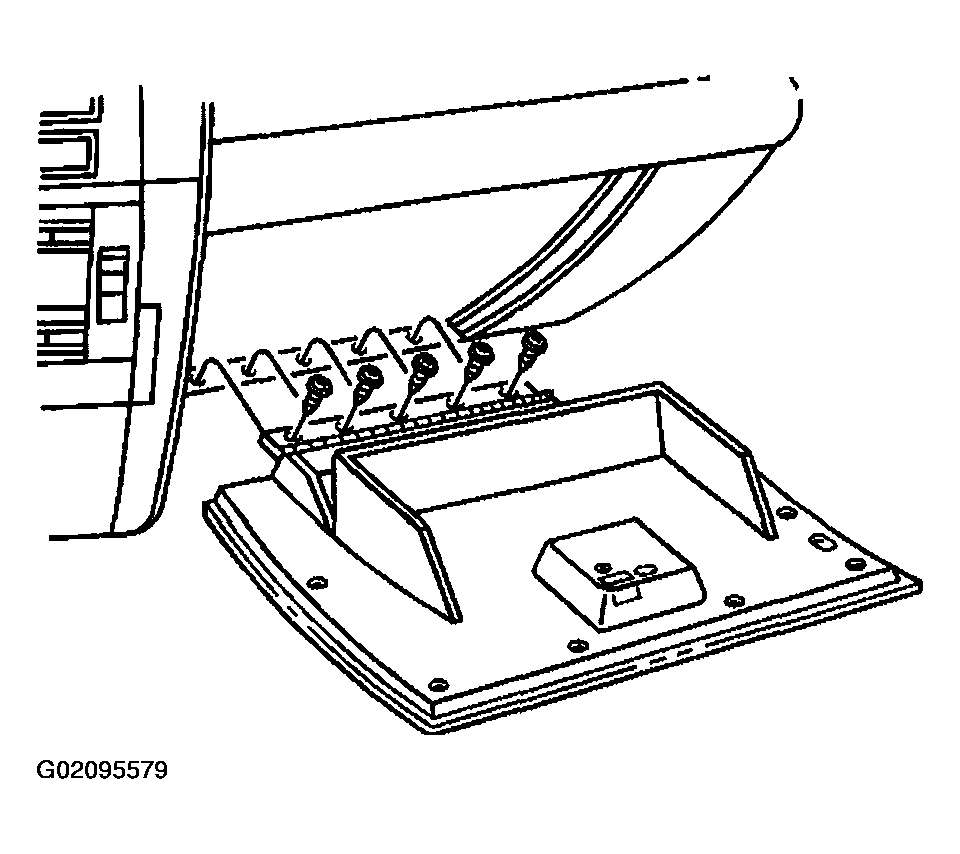

Fig 2: Installing Instrument Panel Compartment Door
Courtesy of GENERAL MOTORS CORP.
Reinstall the door arms. Insure the tabs (1) are secured to the I/P compartment door.

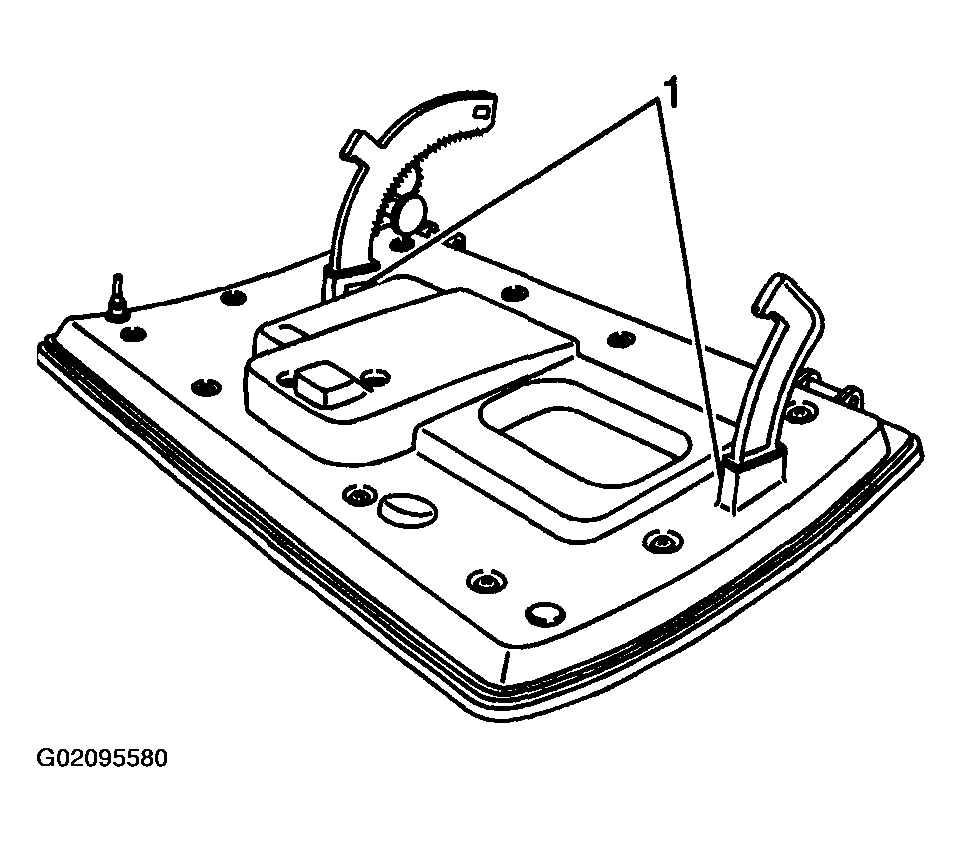

Fig 3: Installing Tabs On Inboard Side Of Door Arms
