Removal Procedure

  1. Remove the screws (2) securing the closeout panel to the I/P.
  2. Disconnect the courtesy lamp electrical connector (1).
  3. Remove the closeout panel from the I/P.

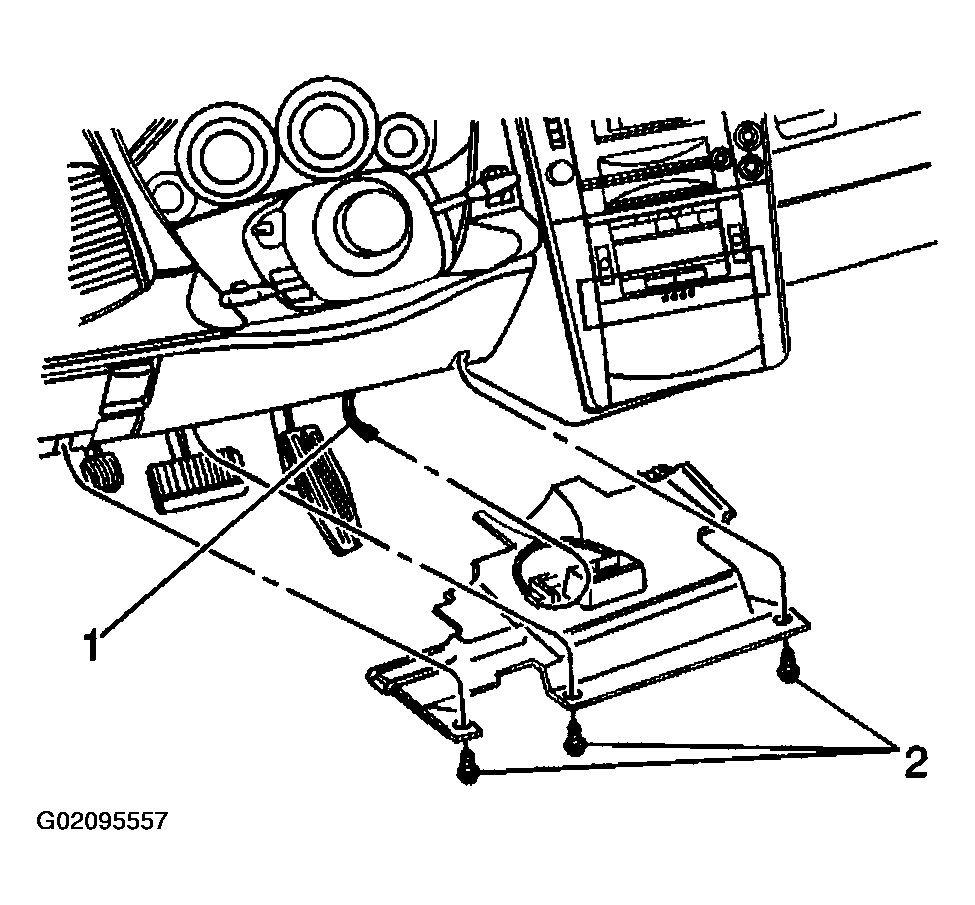

    Fig 1: Removing Left Closeout Panel From Insulator Panel
    G02095557Courtesy of GENERAL MOTORS CORP.
