Installation Procedure

  1. Connect the courtesy lamp electrical connector (1).
  2. Align the closeout panel on the I/P.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the closeout retaining fastener (2).

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

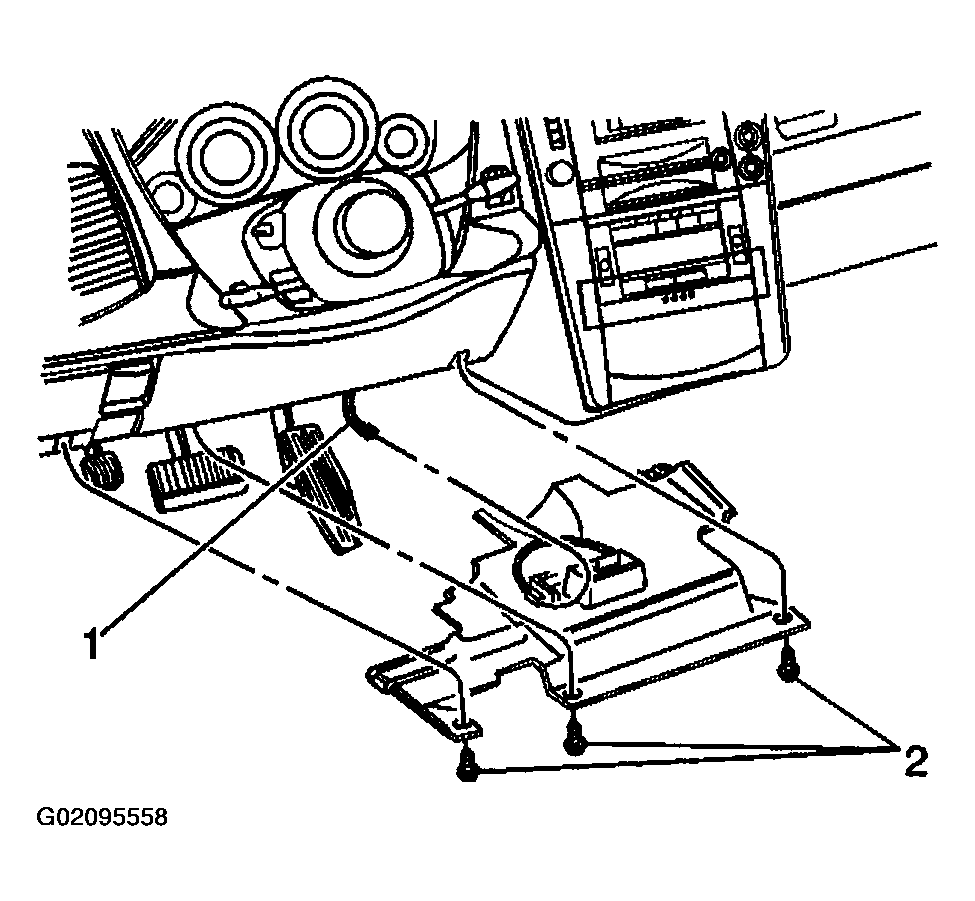

    Fig 1: Installing Left Closeout Panel To Insulator Panel
    G02095558Courtesy of GENERAL MOTORS CORP.
