Removal Procedure

  1. Remove the ash tray.
  2. Push up on the retaining tabs (1) locking the rear panel to the console.

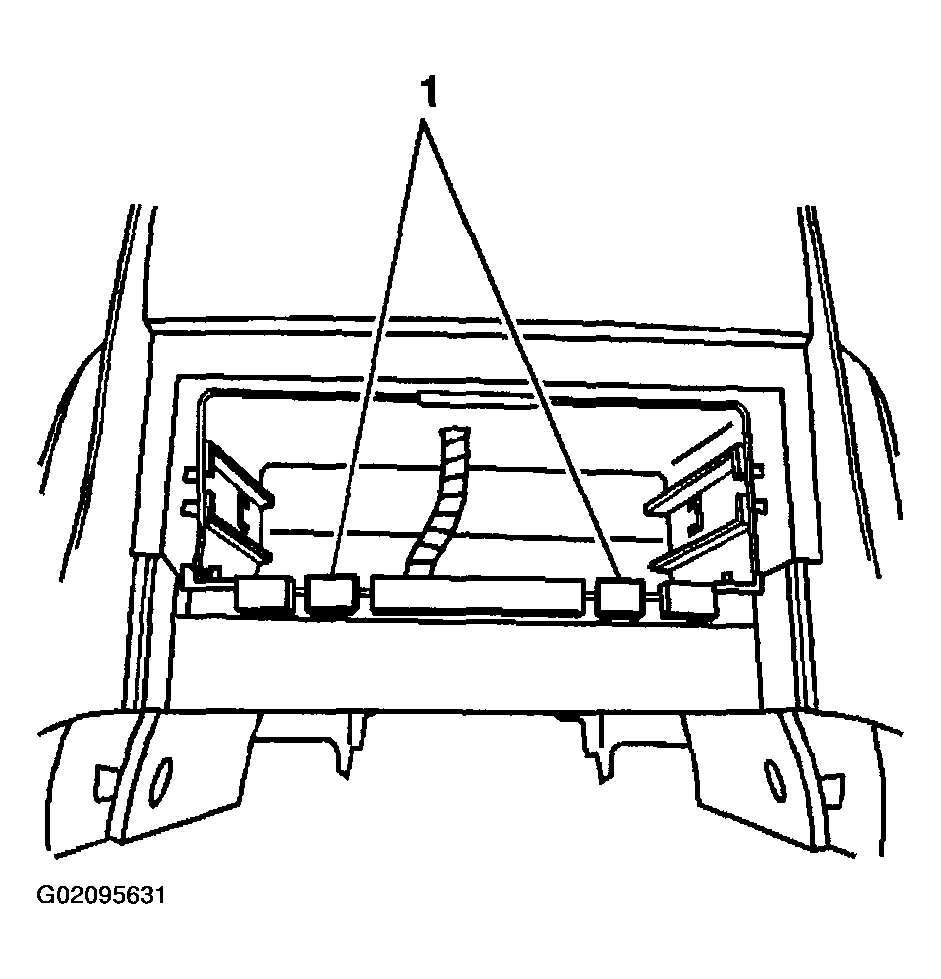

    Fig 1: Pushing Up Retaining Tabs Locking Rear Panel To Console
    G02095631Courtesy of GENERAL MOTORS CORP.
  3. Release the tabs (1) on the side of the rear panel
  4. Disconnect the power outlet electrical connector (1).
  5. Remove the rear panel assembly.

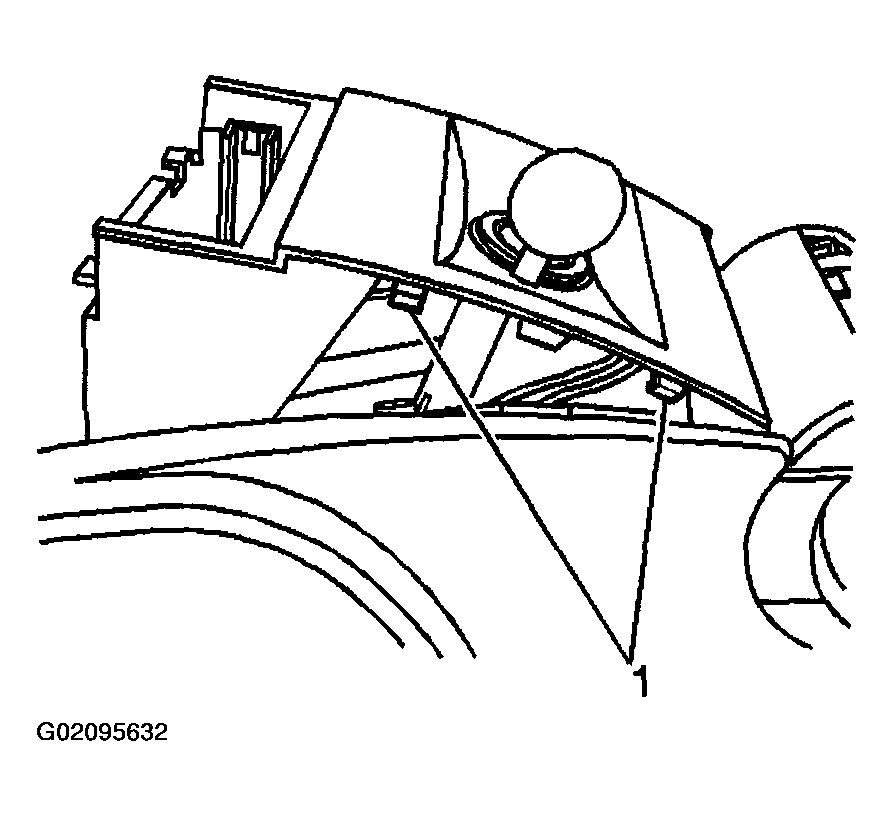

    Fig 2: Releasing Tabs On Side Of Rear Panel
    G02095632Courtesy of GENERAL MOTORS CORP.
