Installation Procedure

  1. Connect the electrical connector (1) to the power outlet.

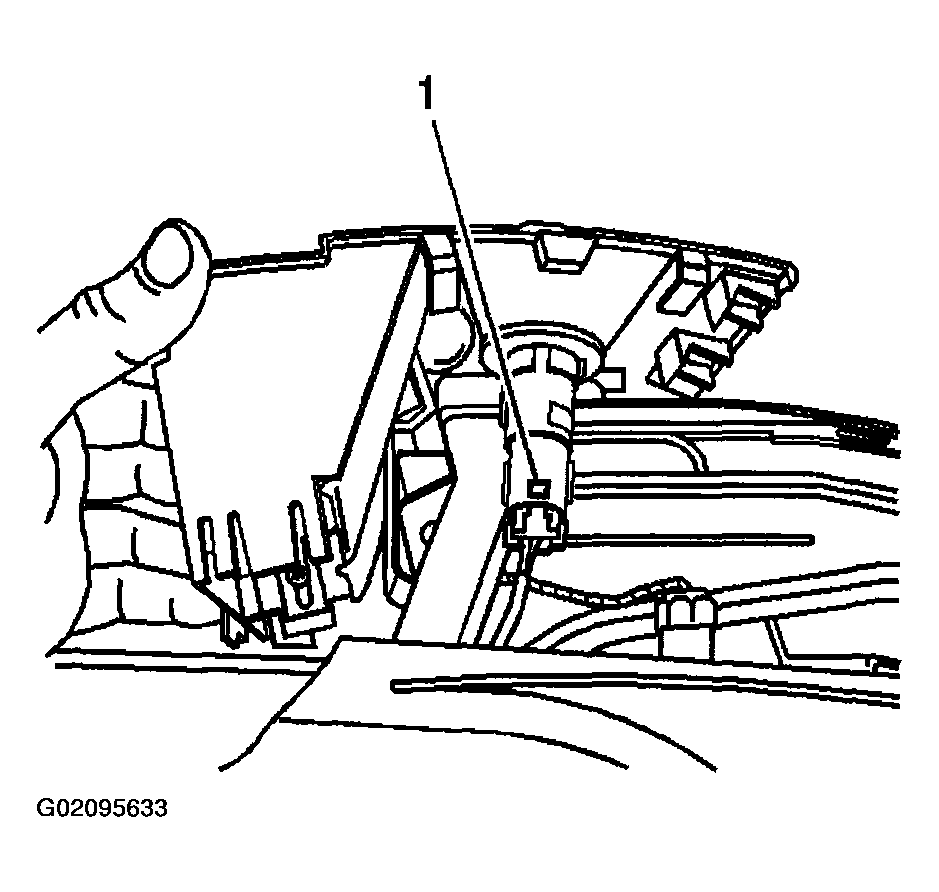

    Fig 1: Connecting Electrical Connector To Power Outlet
    G02095633Courtesy of GENERAL MOTORS CORP.
  2. Lock the tabs (1) on the rear panel assembly to the console.
  3. Install the ash tray assembly.

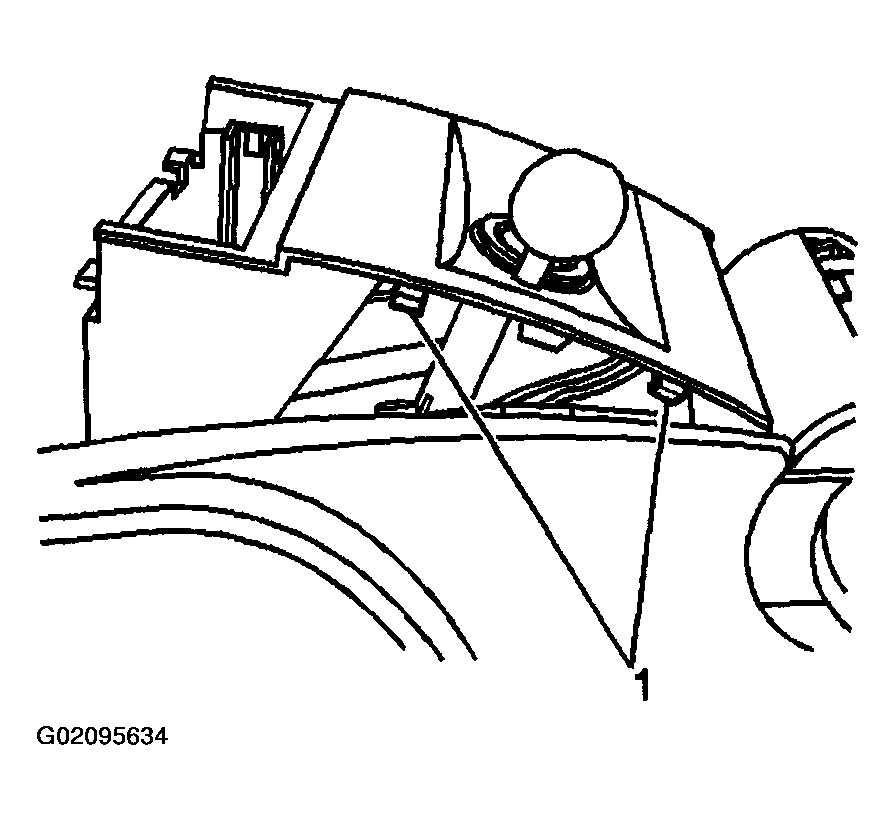

    Fig 2: Locking Tabs On Rear Panel Assembly To Console
    G02095634Courtesy of GENERAL MOTORS CORP.
