Scan Tool Output Controls

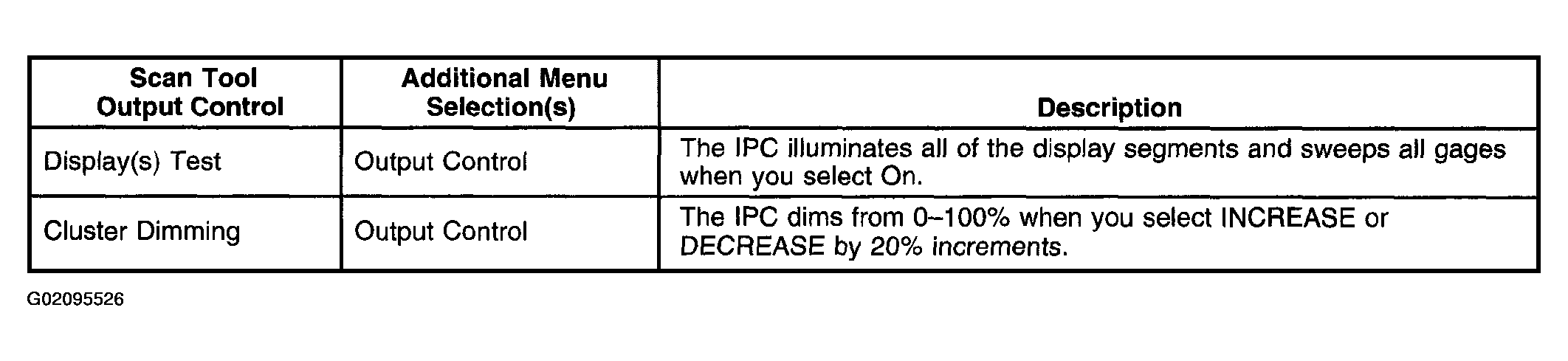

Fig 1: Instrument Panel Cluster - Scan Tool Output Controls - Description Table
G02095526Courtesy of GENERAL MOTORS CORP.

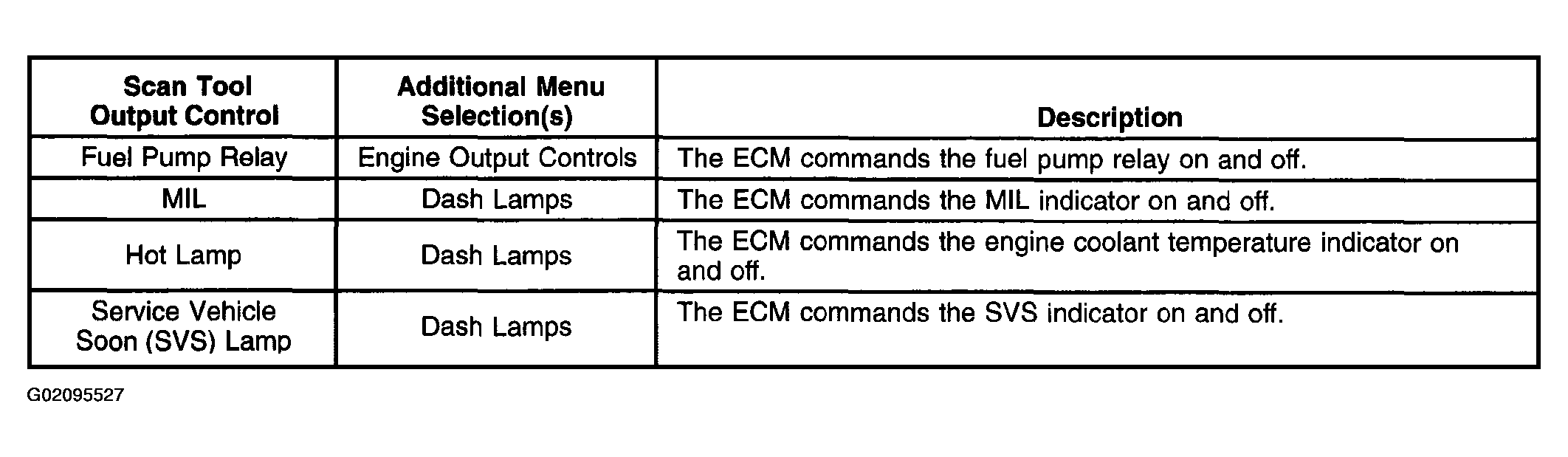

Fig 2: Engine Control Module - Scan Tool Output Controls - Description Table
G02095527Courtesy of GENERAL MOTORS CORP.
