Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 3.This step tests for a high resistance in the primary fuel level sensor signal circuit and the low reference circuit of the fuel level sensors.
2. 4. This step tests for a high resistance in the secondary fuel level signal circuit and the low reference circuit of the fuel level sensors.
3. 18. DTCs will be set in the ECM when you perform this diagnostic table.

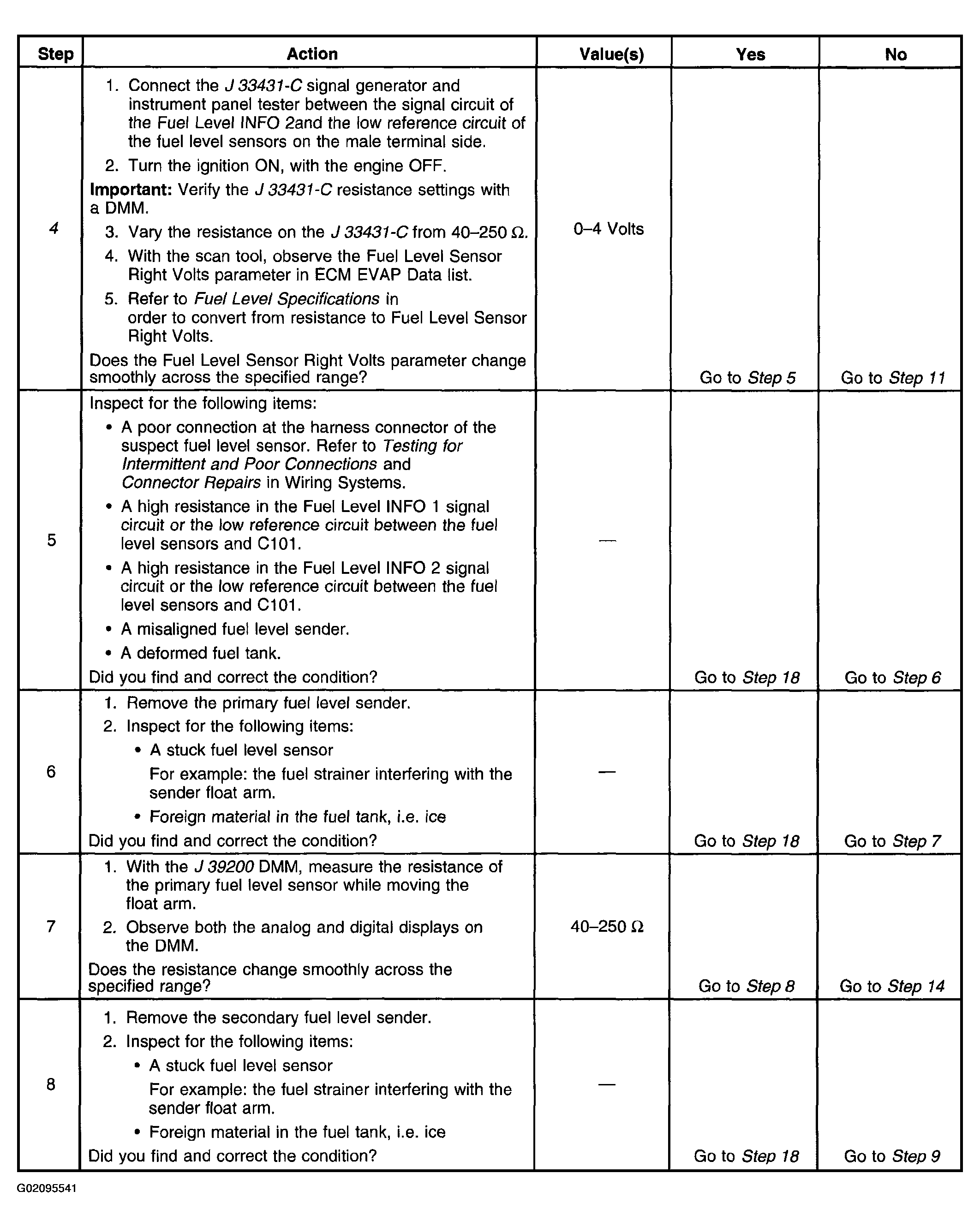

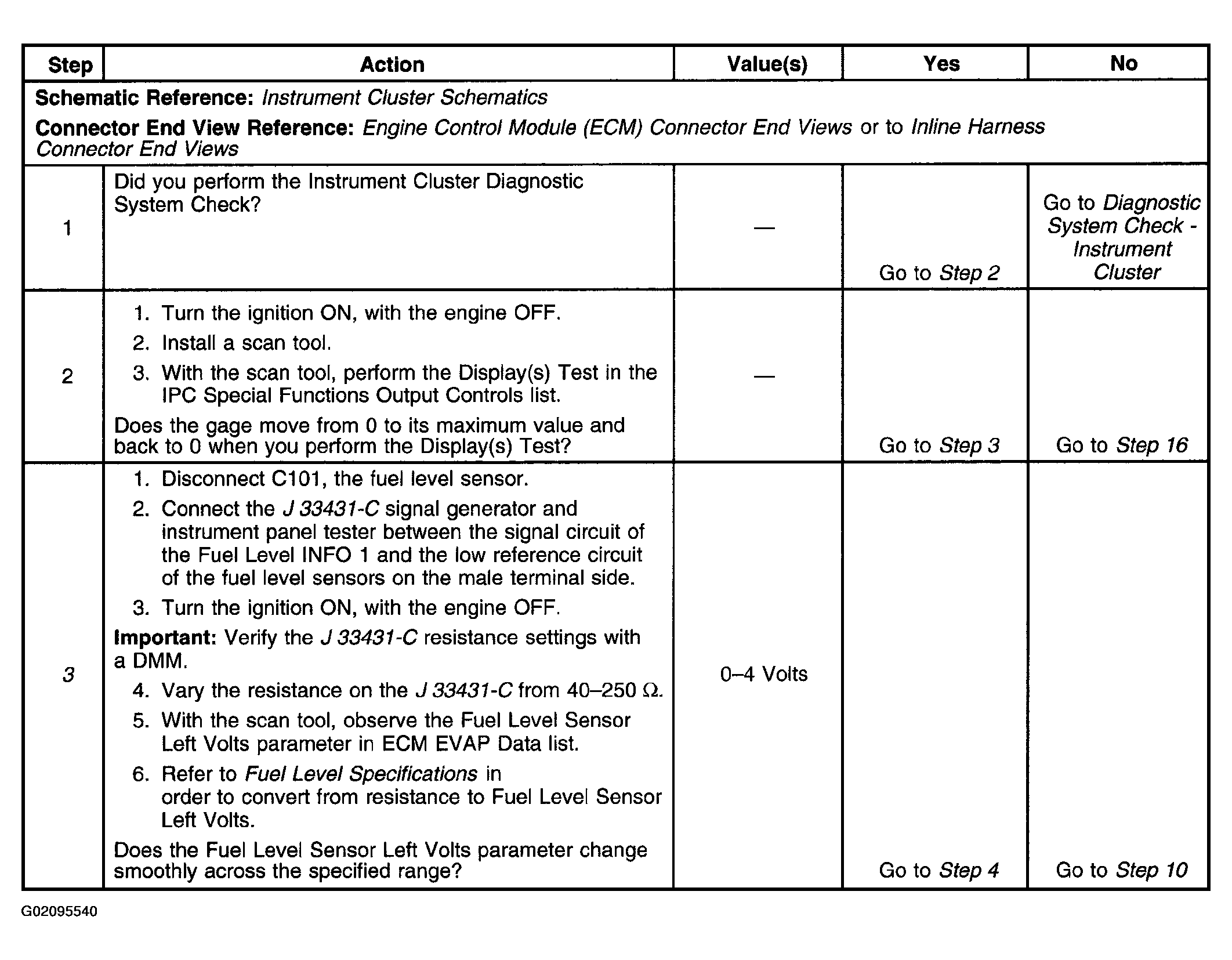

   Fig 1: Fuel Gage Inaccurate Or Inoperative - Diagnostic Table (1 Of 3)

   Courtesy of GENERAL MOTORS CORP.
   Fig 2: Fuel Gage Inaccurate Or Inoperative - Diagnostic Table (2 Of 3)

   Courtesy of GENERAL MOTORS CORP.

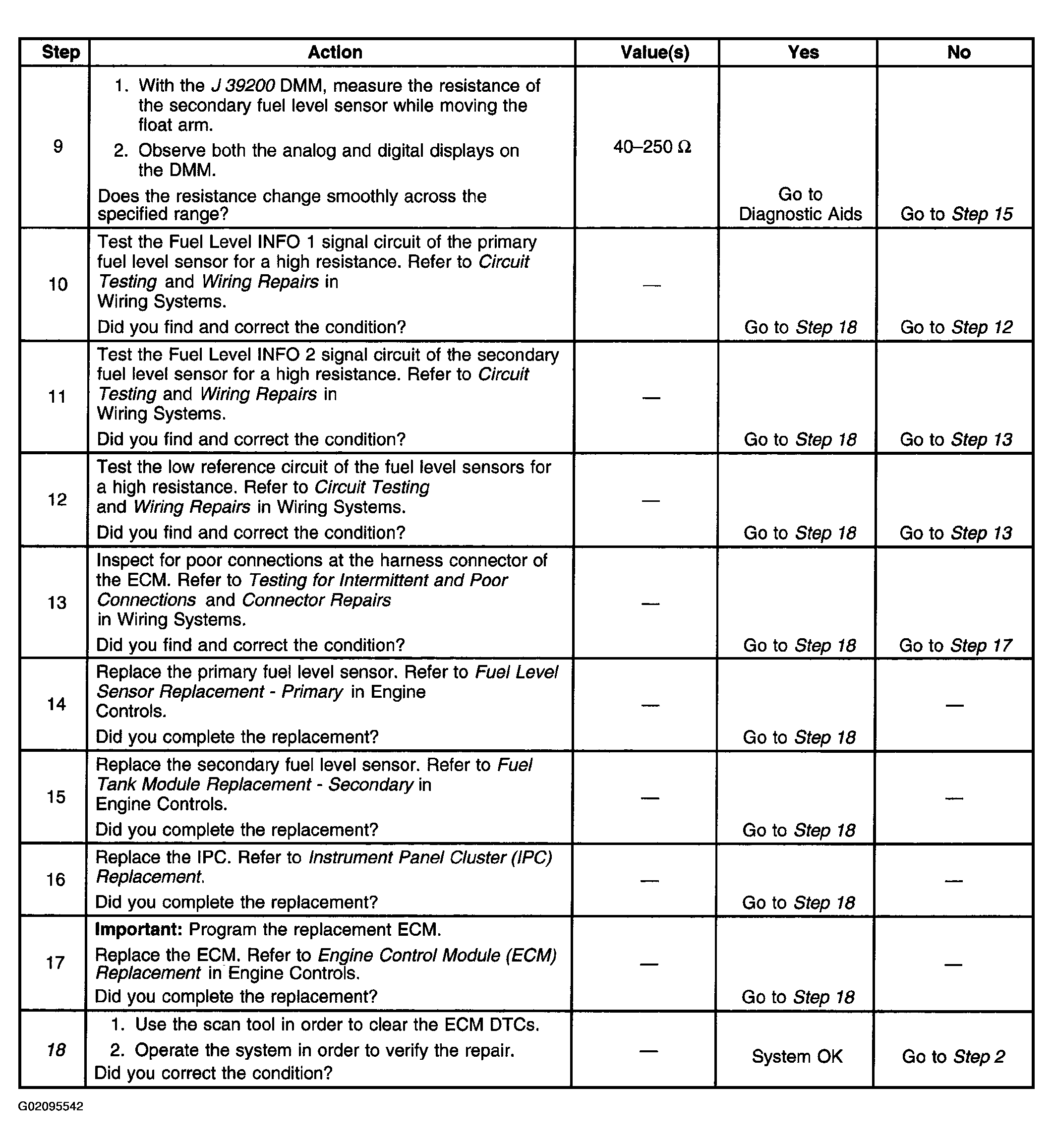

   Fig 3: Fuel Gage Inaccurate Or Inoperative - Diagnostic Table (3 Of 3)

   Courtesy of GENERAL MOTORS CORP.

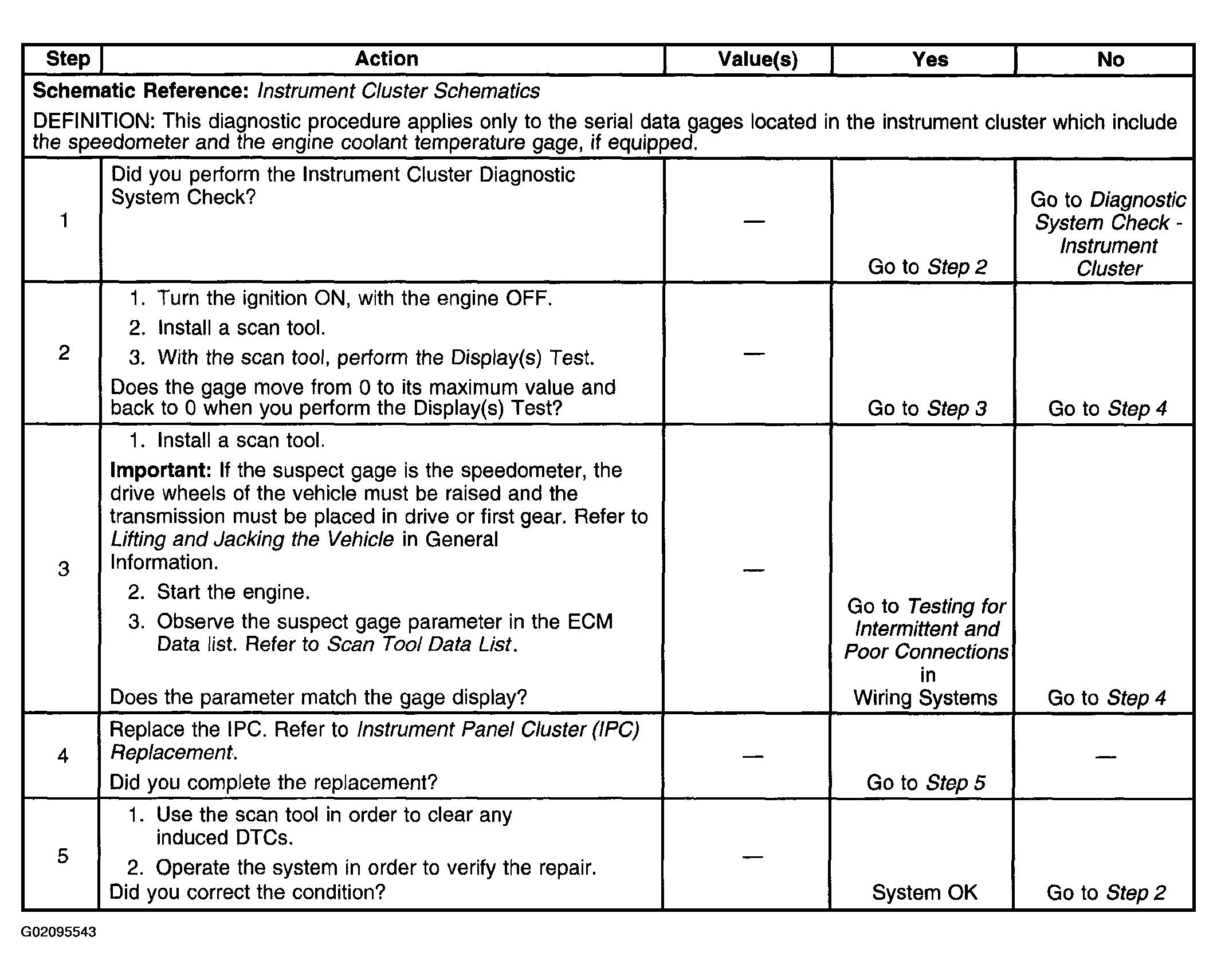

   Fig 4: Instrument Panel Cluster Gages Inoperative - Diagnostic Table

   Courtesy of GENERAL MOTORS CORP.

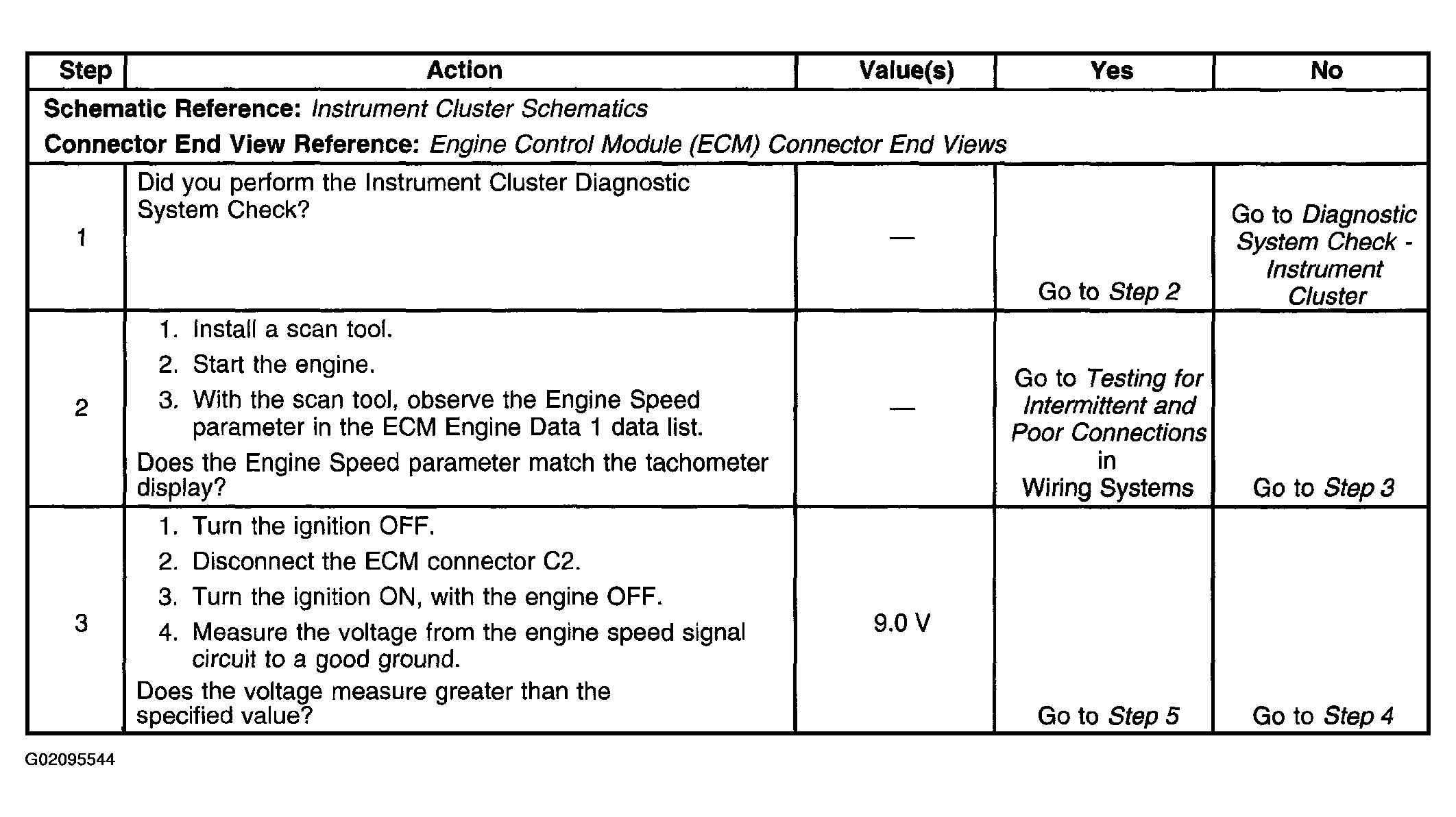

   Fig 5: Tachometer Inaccurate Or Inoperative - Diagnostic Table (1 Of 2)

   Courtesy of GENERAL MOTORS CORP.

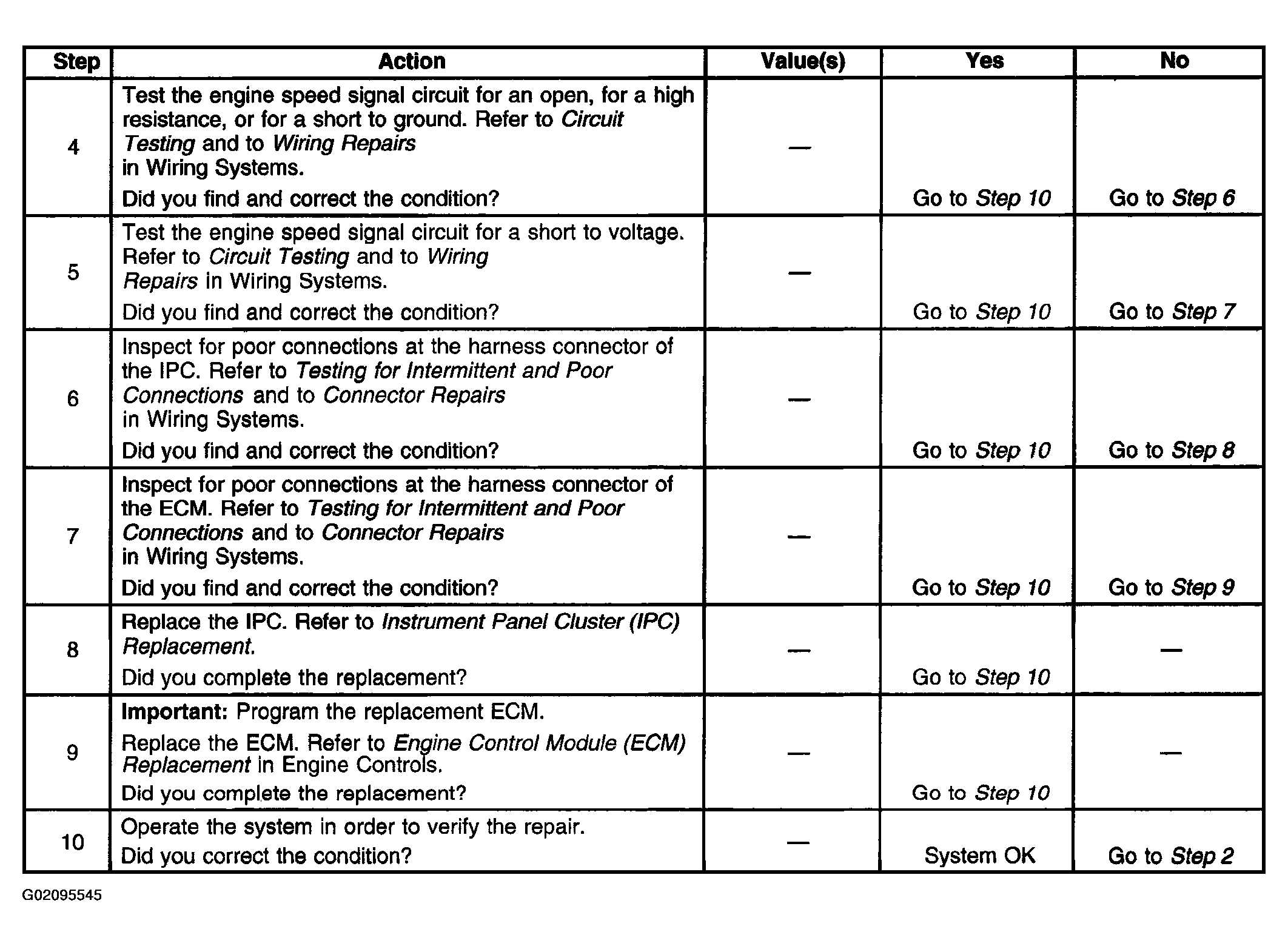

   Fig 6: Tachometer Inaccurate Or Inoperative - Diagnostic Table (2 Of 2)

   Courtesy of GENERAL MOTORS CORP.

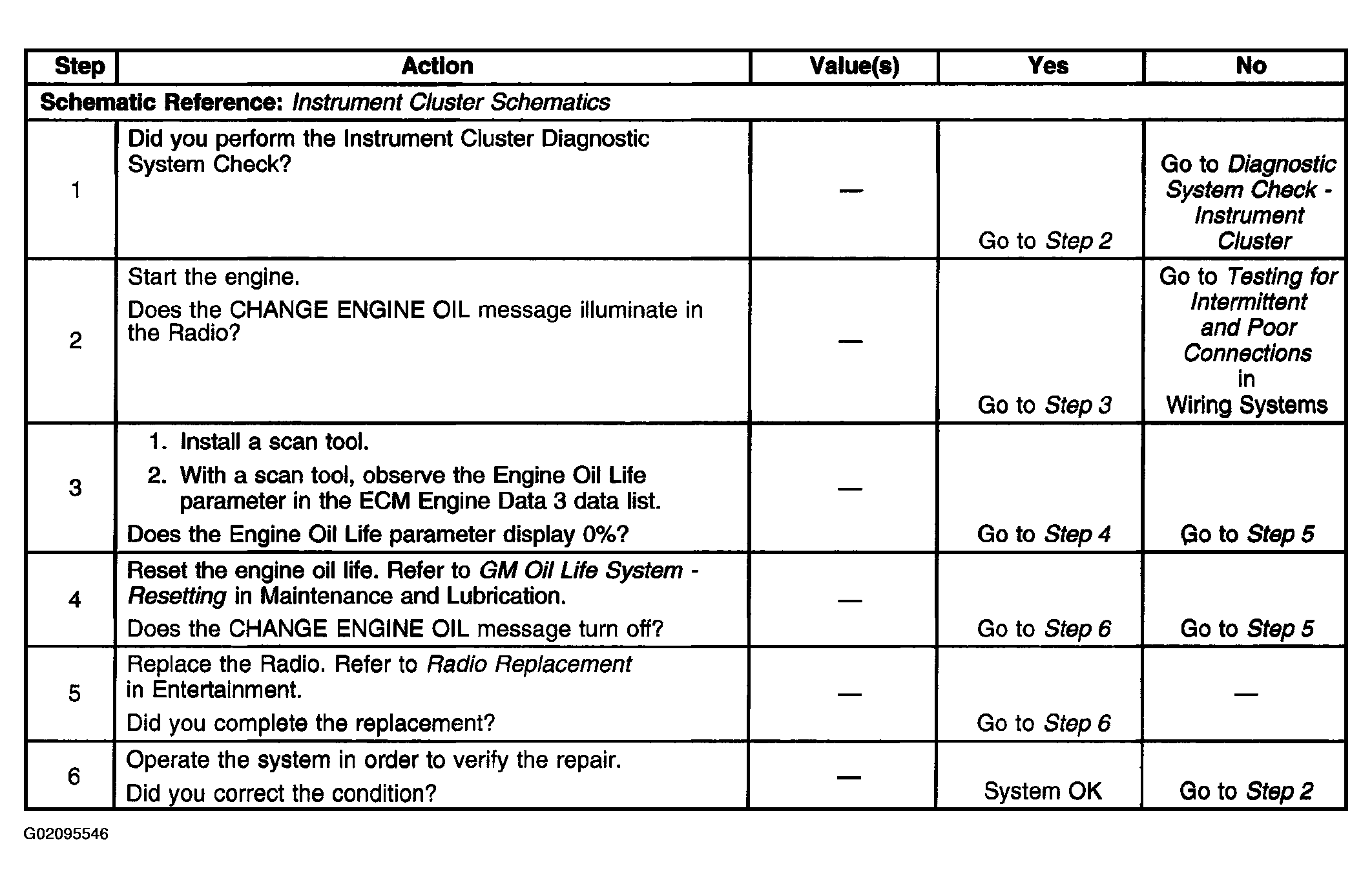

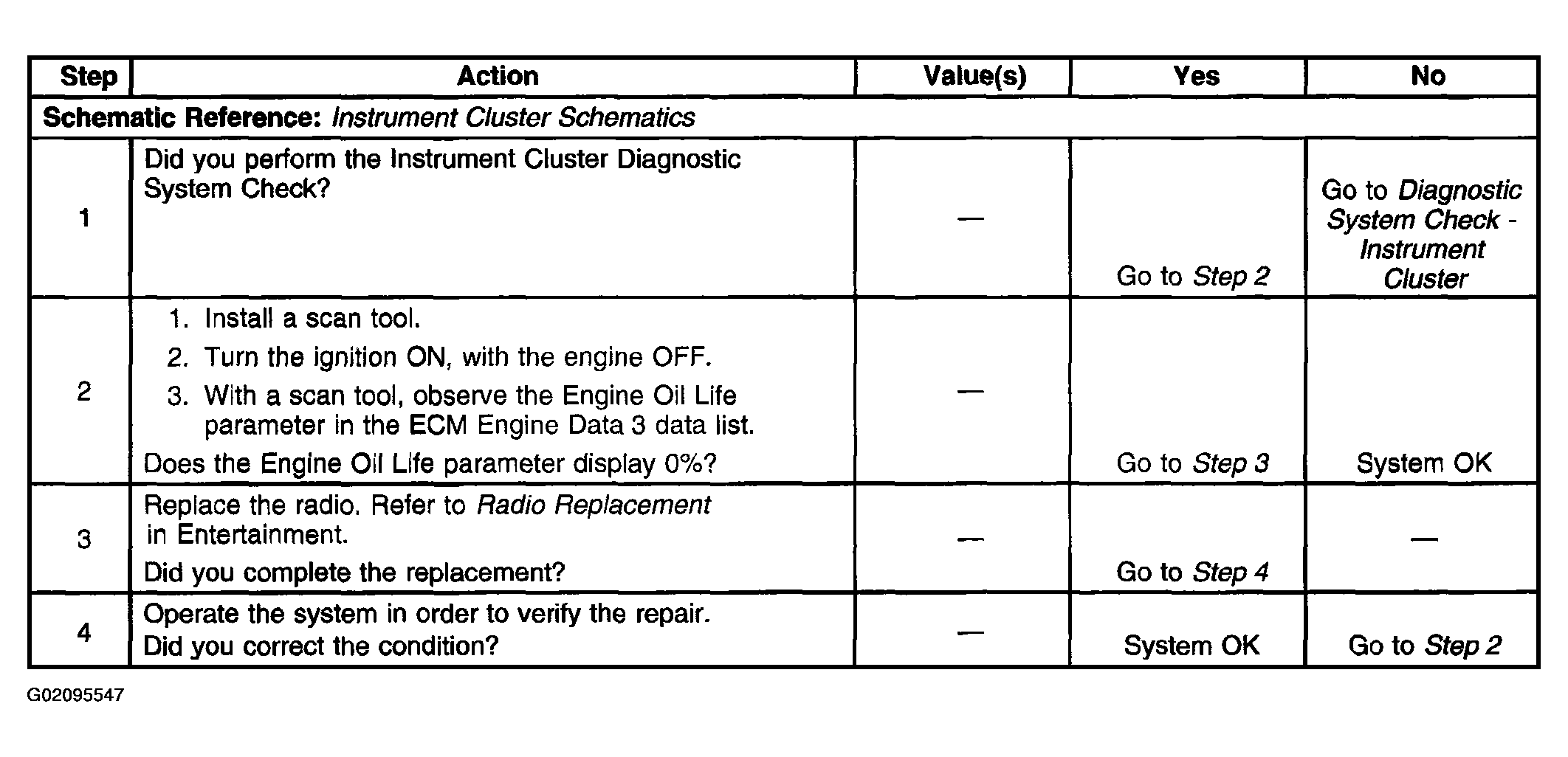

   Fig 7: Change Engine Oil Indicator Always On - Diagnostic Table

   Courtesy of GENERAL MOTORS CORP.

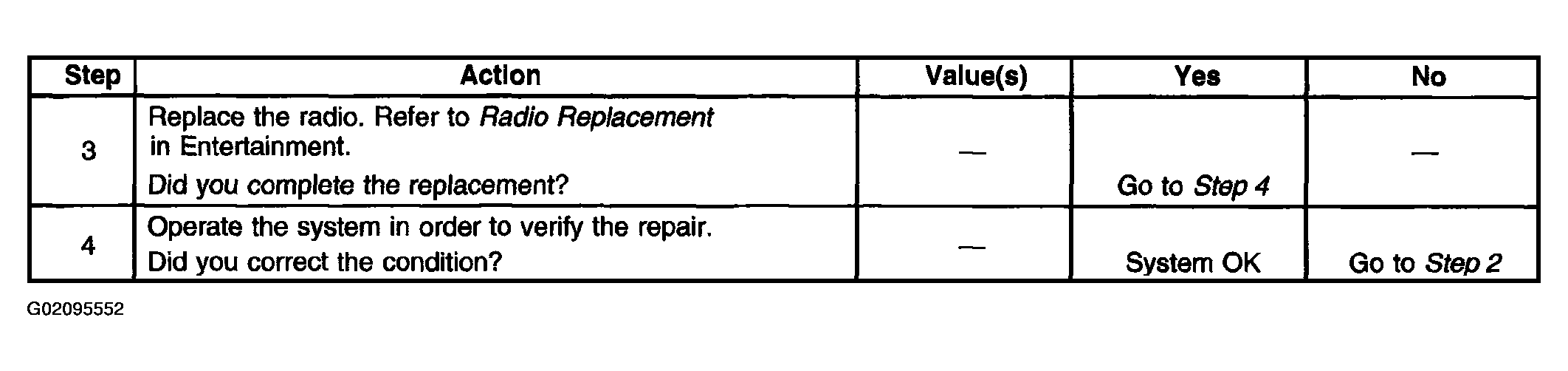

   Fig 8: Change Engine Oil Indicator Inoperative - Diagnostic Table

   Courtesy of GENERAL MOTORS CORP.

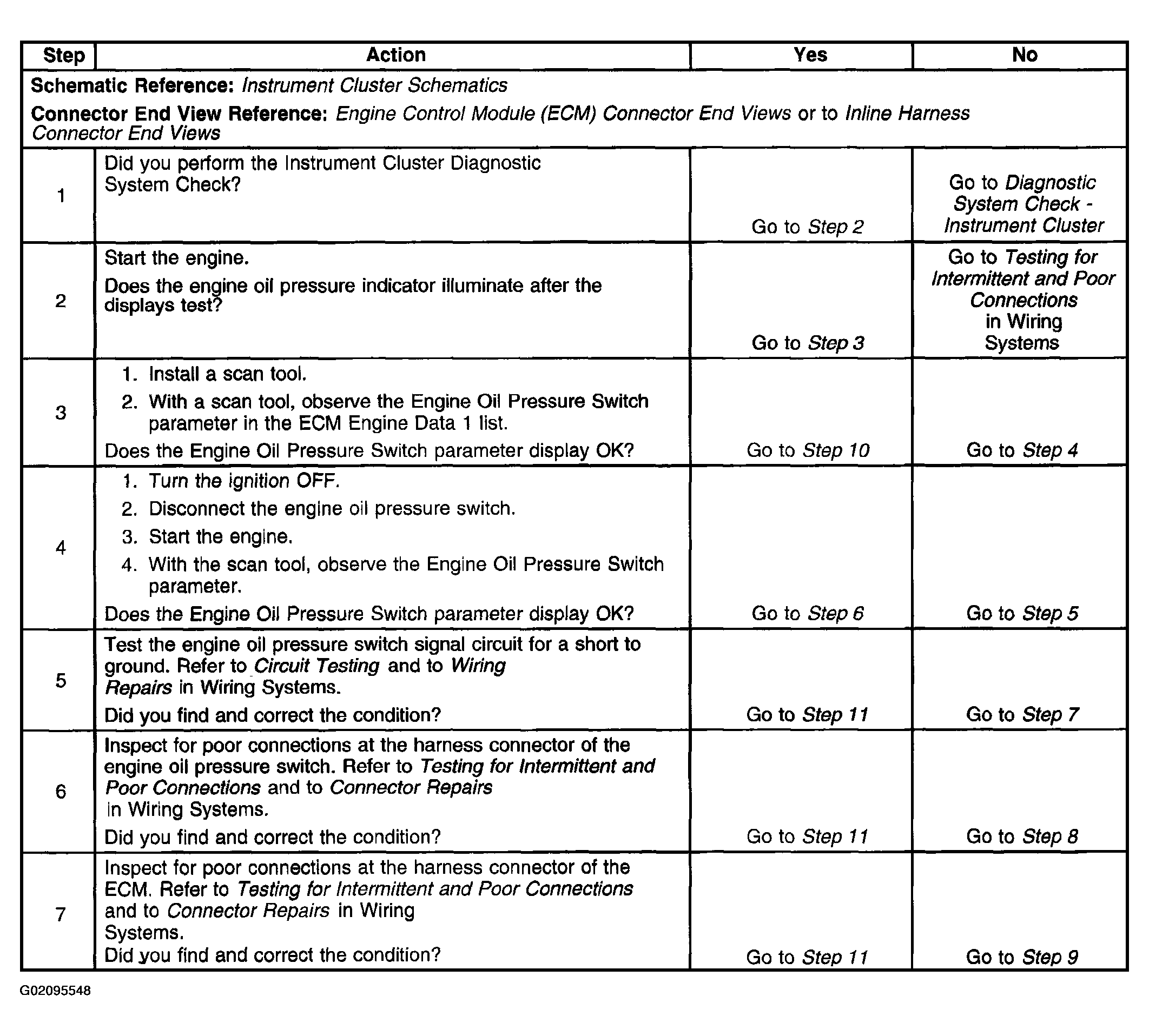

   Fig 9: Engine Oil Pressure Indicator Always On - Diagnostic Table (1 Of 2)

   Courtesy of GENERAL MOTORS CORP.

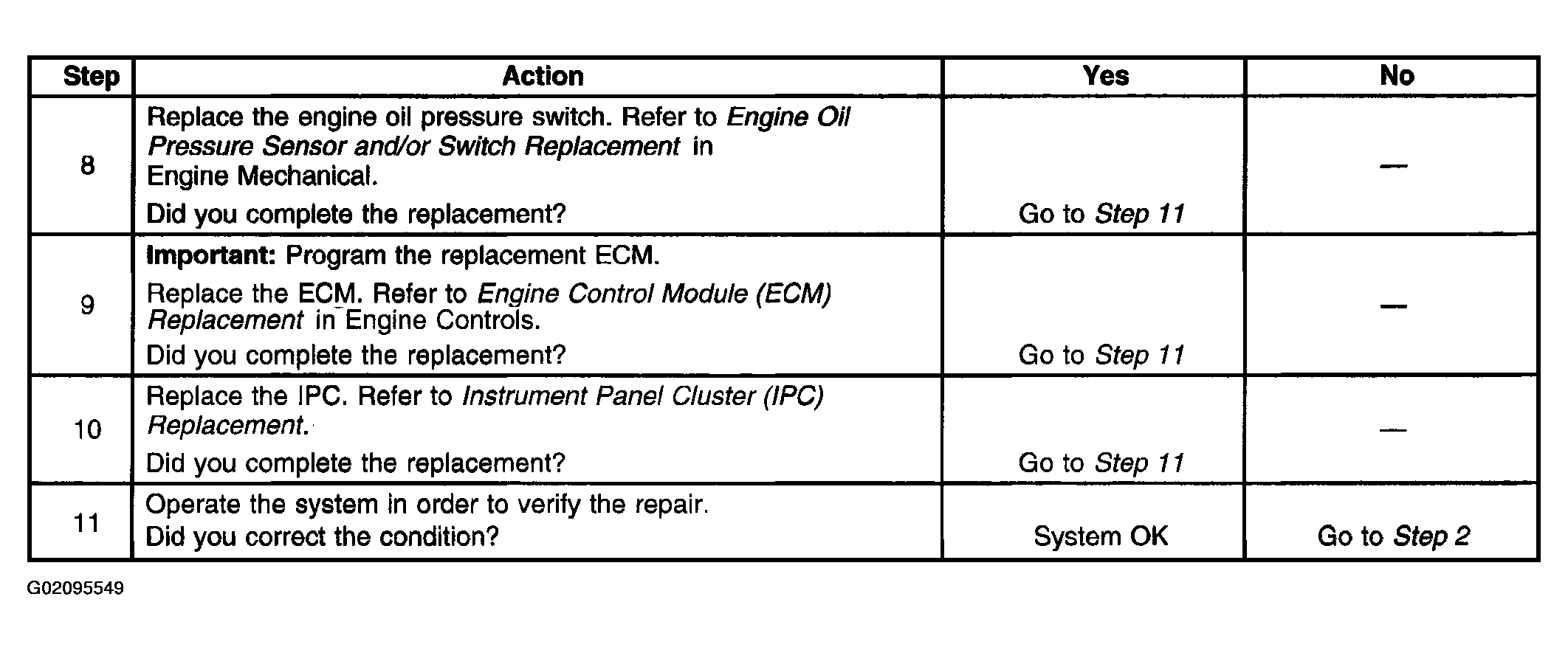

   Fig 10: Engine Oil Pressure Indicator Always On - Diagnostic Table (2 Of 2)

   Courtesy of GENERAL MOTORS CORP.

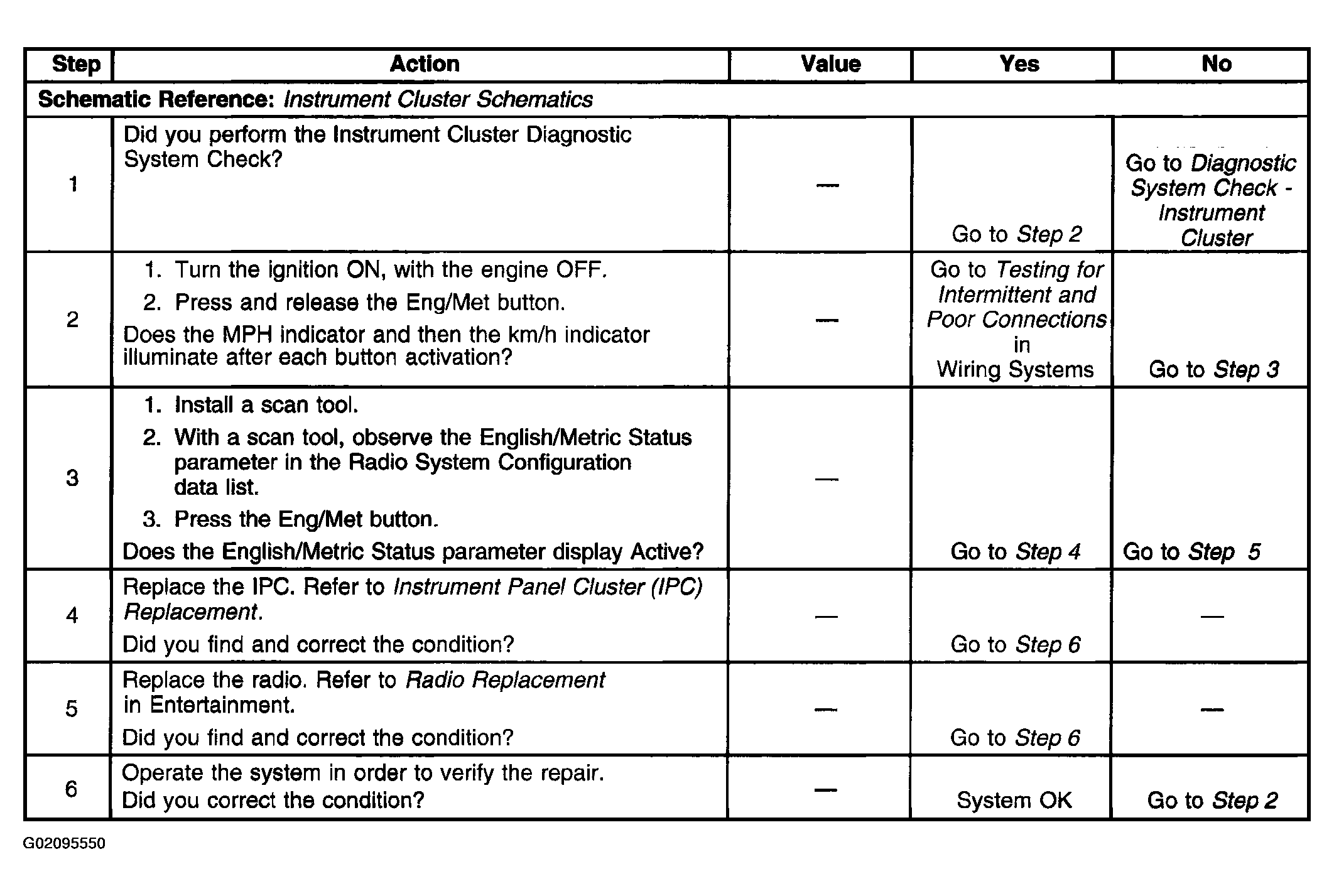

   Fig 11: MPH (Km/H) Indicator Inoperative - Diagnostic Table

   Courtesy of GENERAL MOTORS CORP.

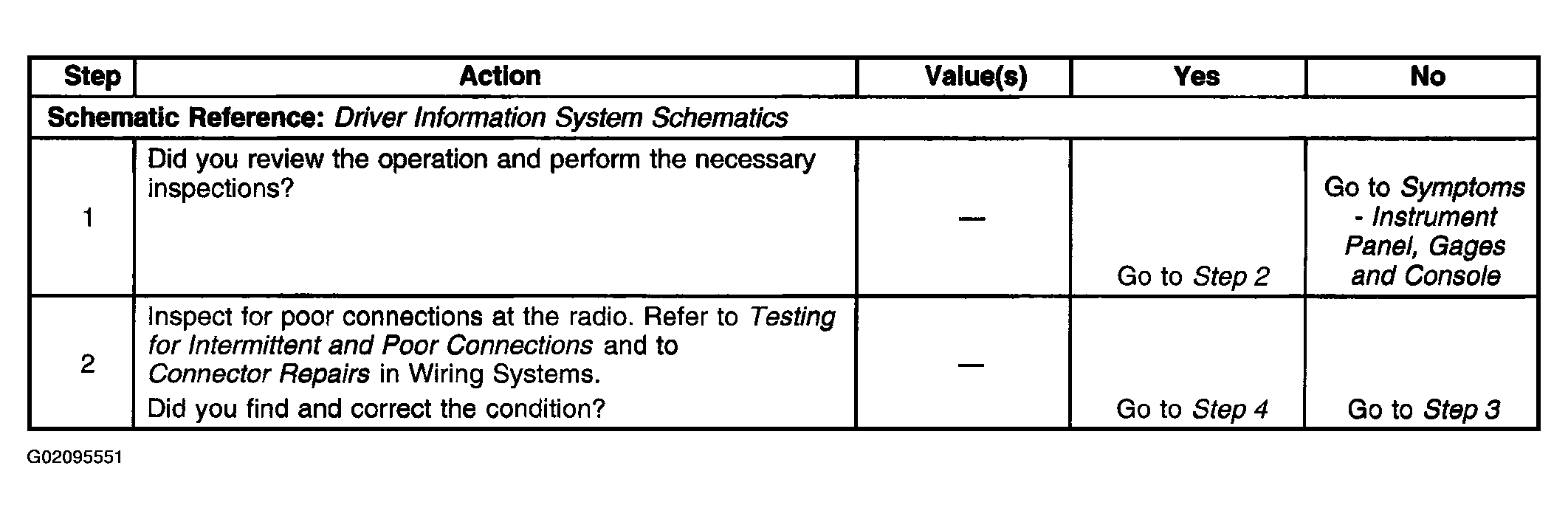

   Fig 12: Driver Information Center (DIC) Switch(es) Inoperative - Diagnostic Table (1 Of 2)

   Courtesy of GENERAL MOTORS CORP.
   Fig 13: Driver Information Center (DIC) Switch(es) Inoperative - Diagnostic Table (2 Of 2)

   Courtesy of GENERAL MOTORS CORP.

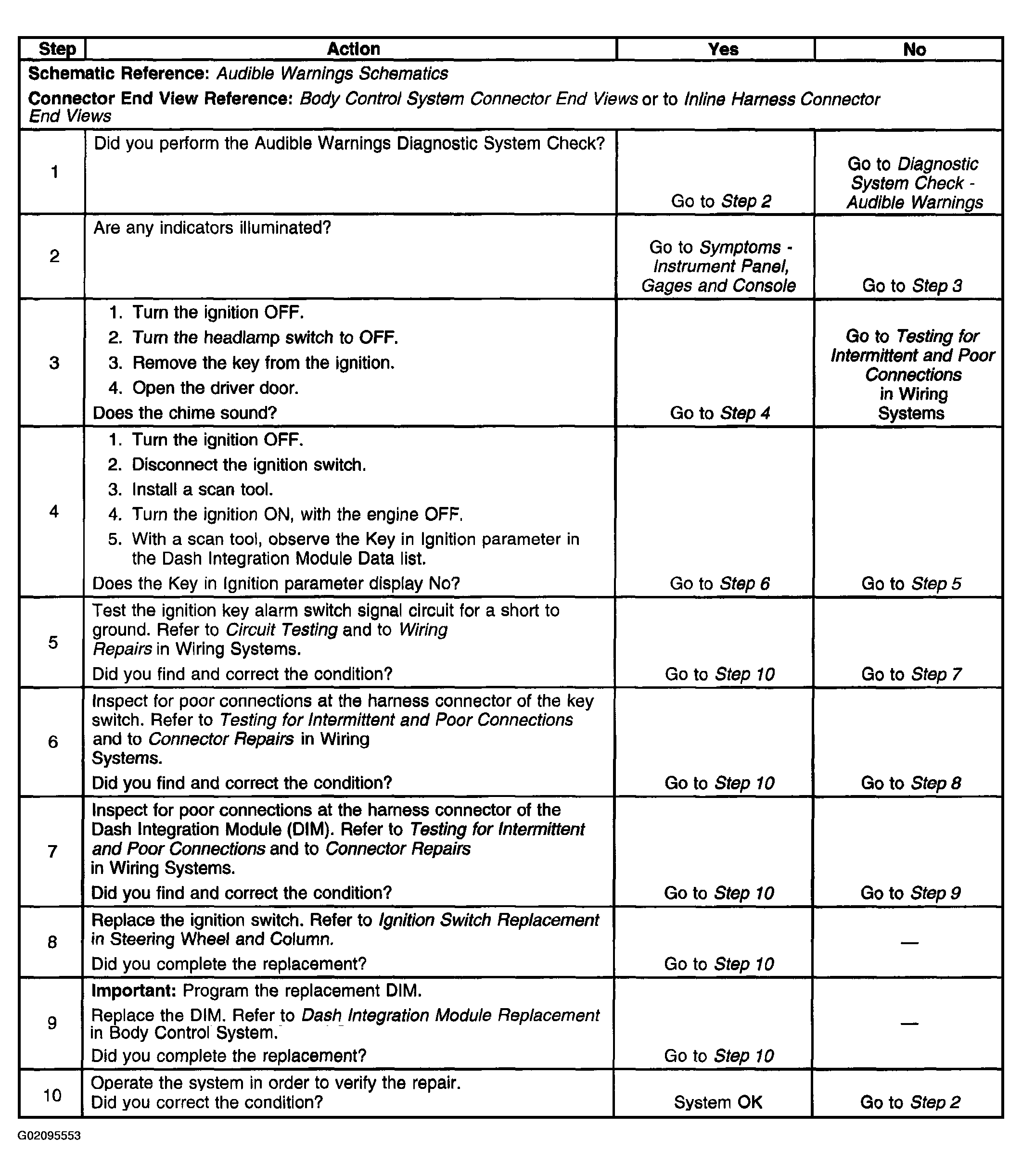

   Fig 14: Chime Always On - Diagnostic Table

   Courtesy of GENERAL MOTORS CORP.

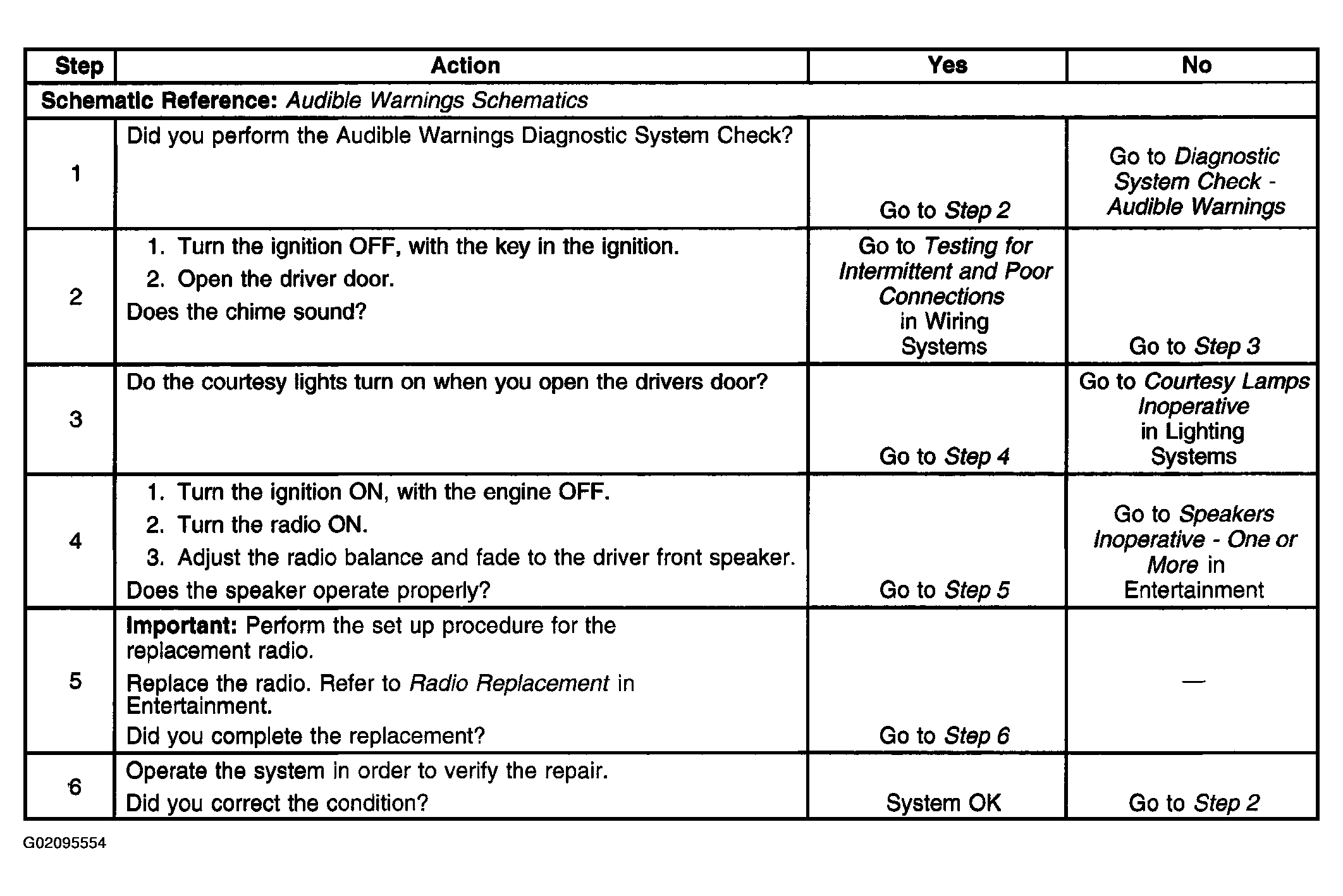

   Fig 15: Chime Inoperative - Diagnostic Table

   Courtesy of GENERAL MOTORS CORP.
