Test Description

The number below refers to the step number on the diagnostic table.

  1. 3. Tests for the proper operation of the circuit in the high voltage range.

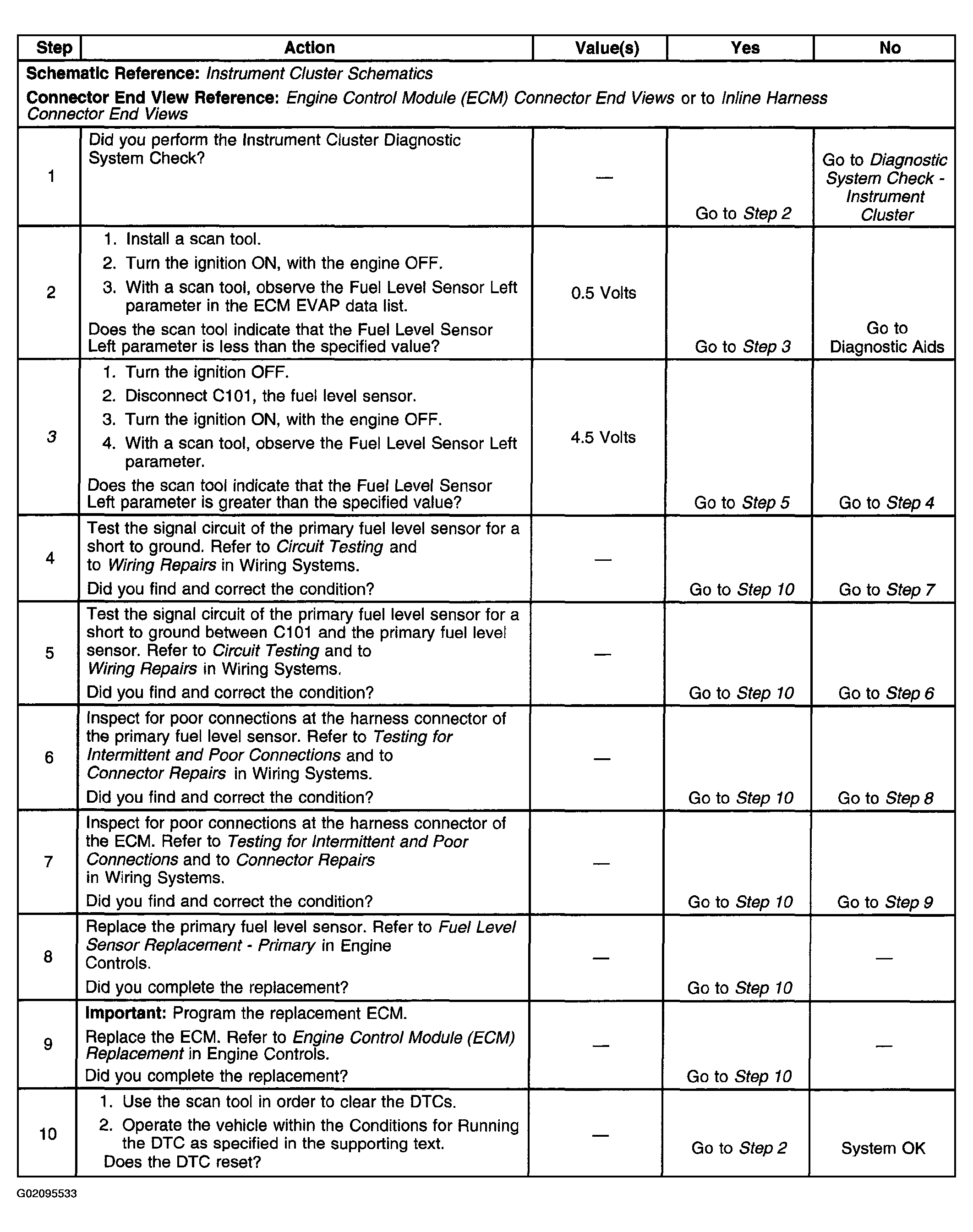

    Fig 1: DTC P0462 - Diagnostic Table
    G02095533Courtesy of GENERAL MOTORS CORP.
