Instrument Panel, Gages, and Console Connector End Views

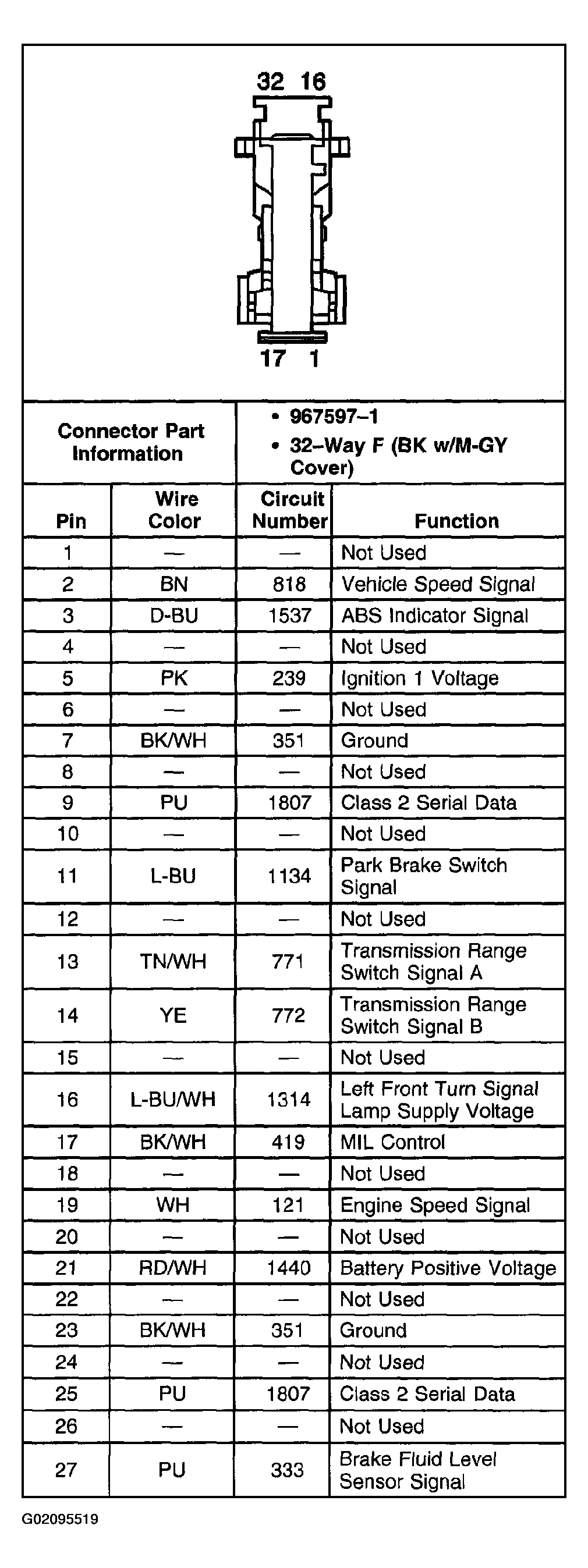

Fig 1: Instrument Panel Cluster (IPC) Connector End View (1 Of 2)
G02095519Courtesy of GENERAL MOTORS CORP.

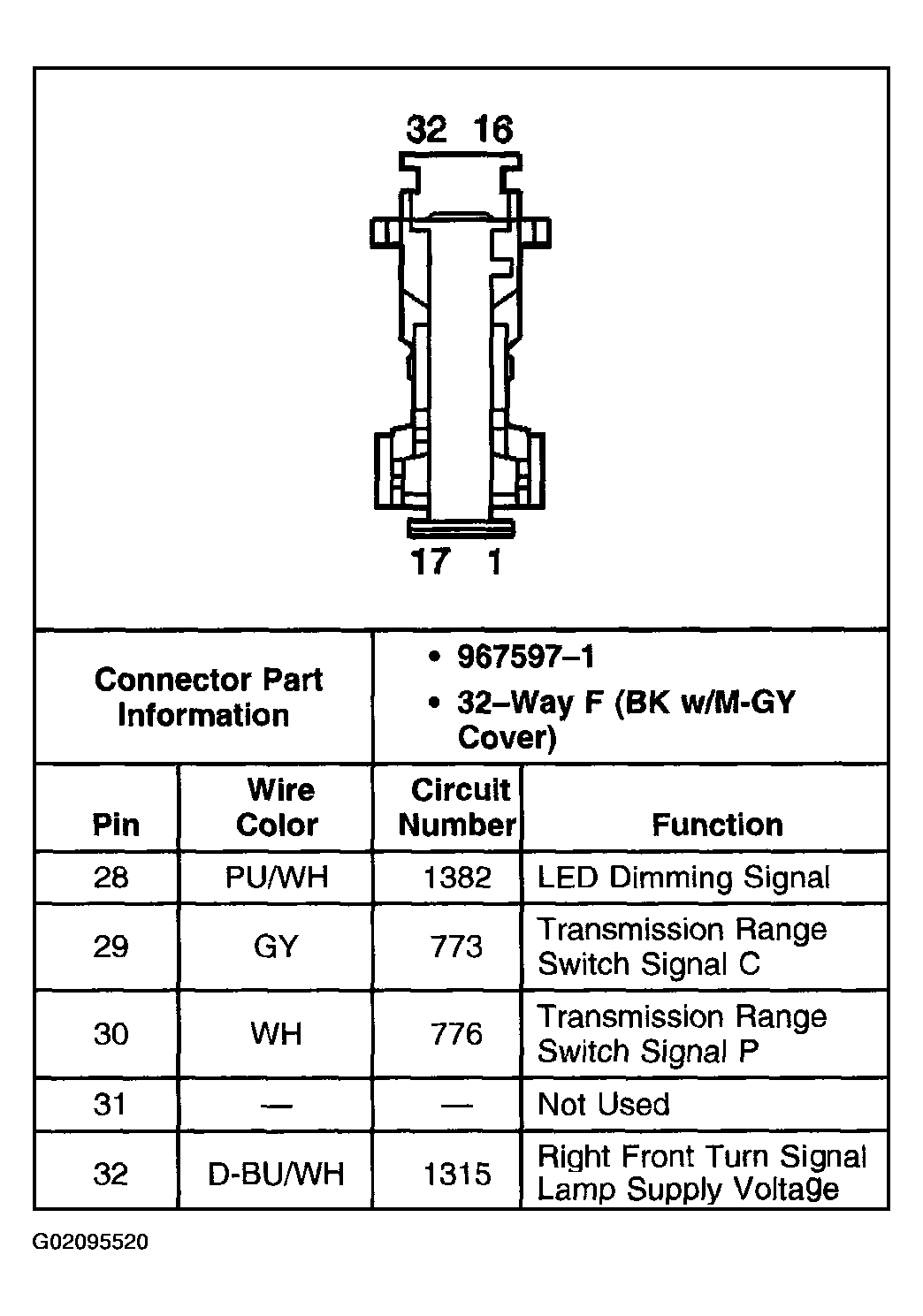

Fig 2: Instrument Panel Cluster (IPC) Connector End View (2 Of 2)
G02095520Courtesy of GENERAL MOTORS CORP.

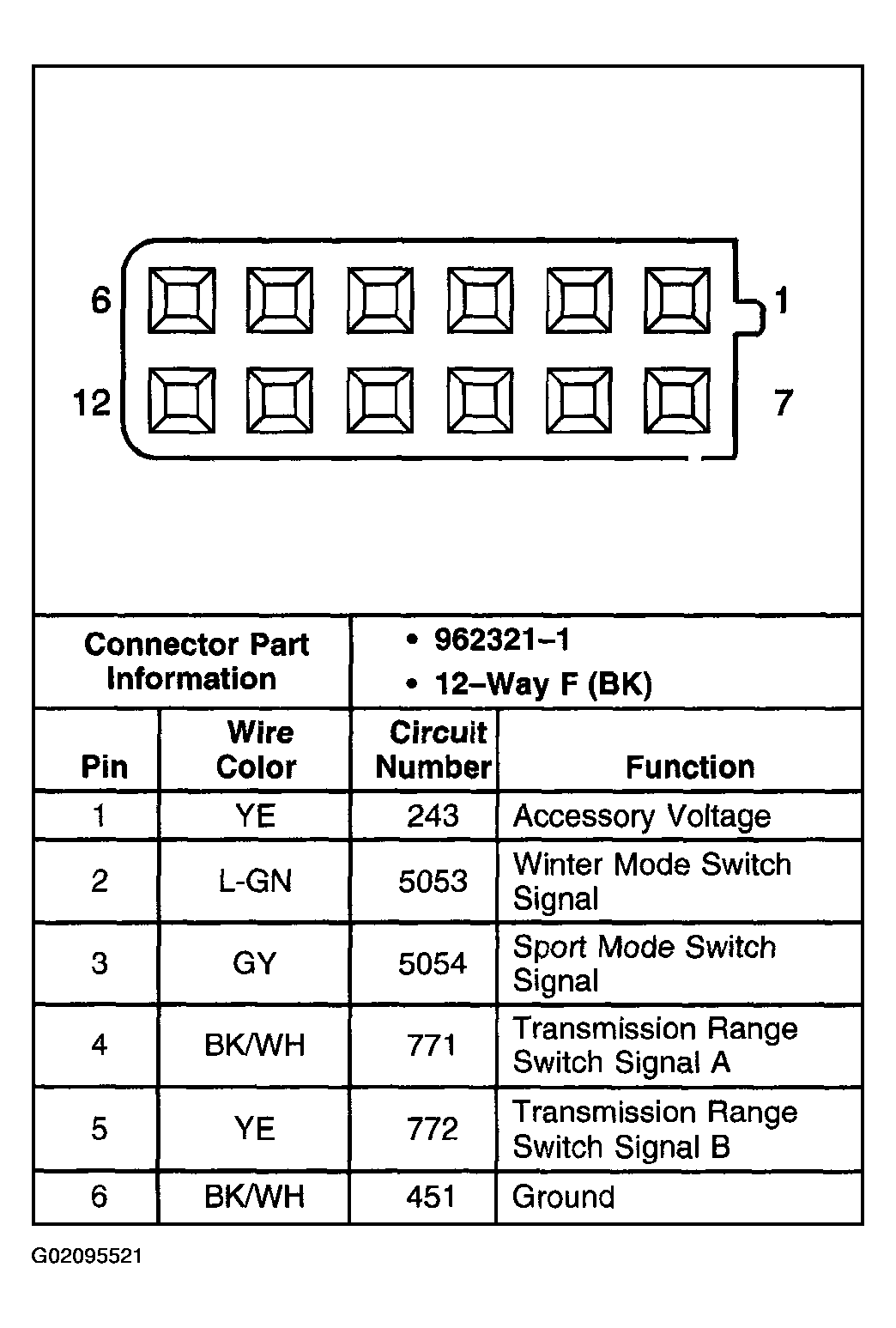

Fig 3: Electronic PRNDL Connector End View (1 Of 2)
G02095521Courtesy of GENERAL MOTORS CORP.

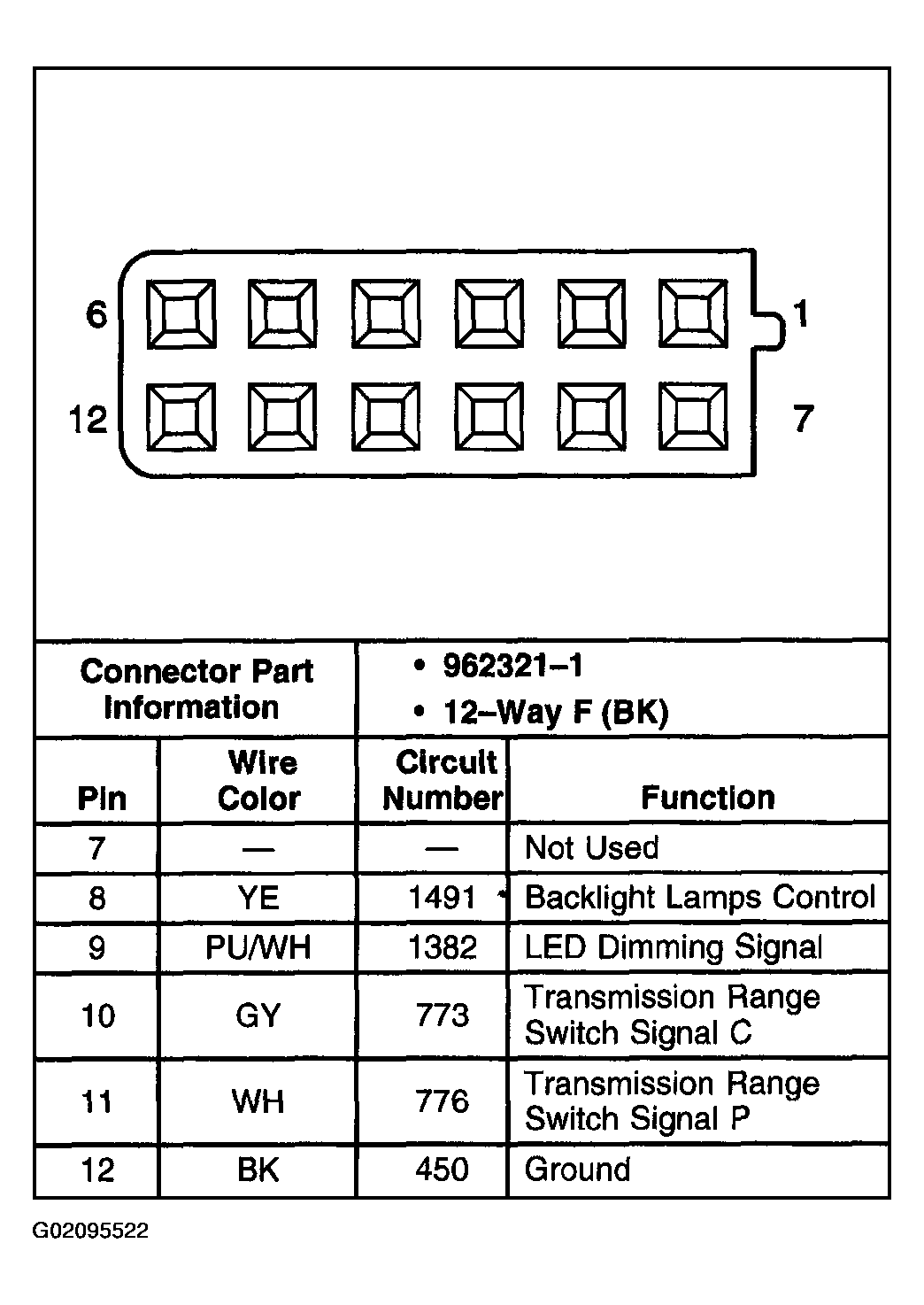

Fig 4: Electronic PRNDL Connector End View (2 Of 2)
G02095522Courtesy of GENERAL MOTORS CORP.
