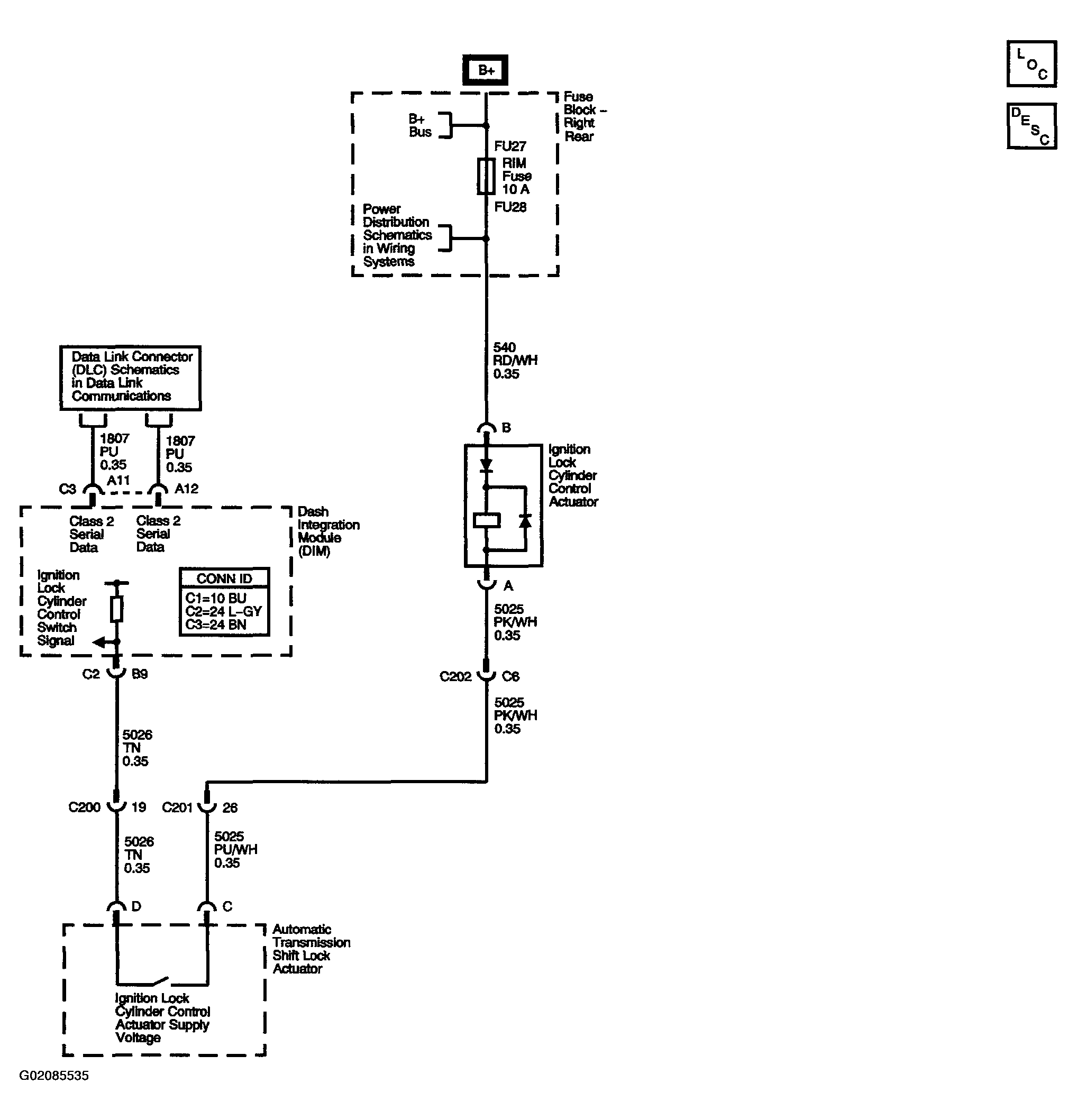

Home >> Cadillac >> 2003 >> CTS Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Steering Column Switches >> Steering Wheel & Steering Column - Tilt >> Schematic and Routing Diagrams >> Column/Ignition Lock Schematics
