Installation Procedure

  1. Install the lower intermediate shaft to the upper intermediate shaft.
  2. Install the lower intermediate shaft to the power steering gear.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the lower intermediate shaft to the power steering gear retaining bolt.

    Tighten

    Tighten the bolt to 48 N.m (35 lb ft).

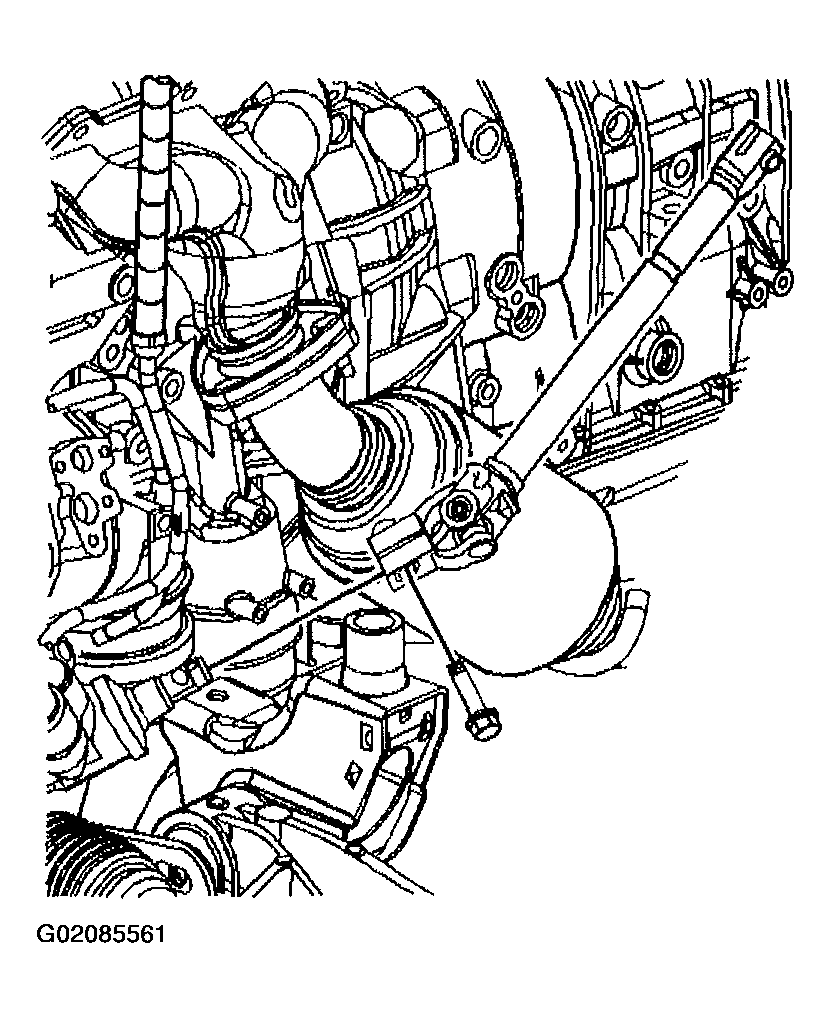

    Fig 1: Lower Intermediate Shaft To Power Steering Gear Retaining Bolt
    G02085561Courtesy of GENERAL MOTORS CORP.
  4. Install the upper intermediate shaft to the lower intermediate shaft retaining bolt.

    Tighten

    Tighten the bolt to 48 N.m (35 lb ft).

  5. Lower the vehicle.

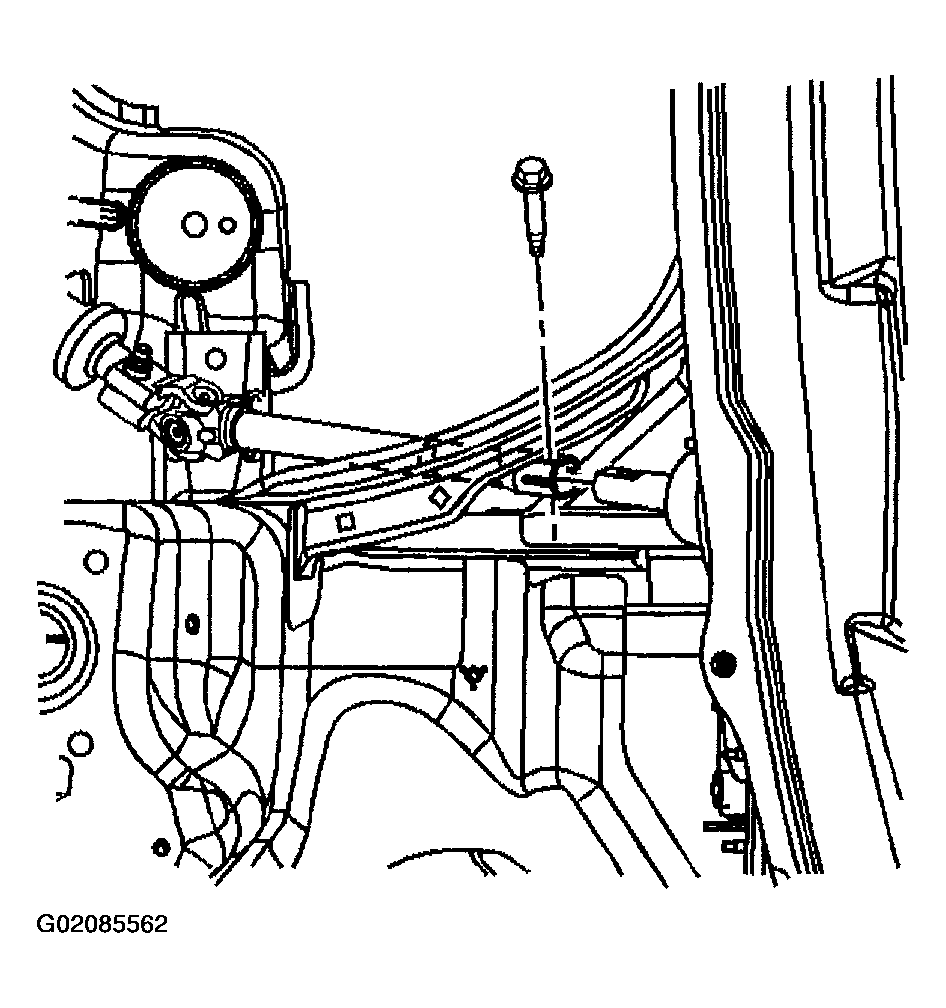

    Fig 2: Upper Intermediate Shaft To Lower Intermediate Shaft Retaining Bolt
    G02085562Courtesy of GENERAL MOTORS CORP.
  6. Unlock the steering column by removing J 42640  from the steering column lower trim cover access hole. See Special Tools and Equipment .
    Fig 3: Removing Steering Column Anti Rotation Pin From Steering Column
    G02085563Courtesy of GENERAL MOTORS CORP.
