Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Turn the ignition switch to the START position.
  3. Insert the awl into the lower steering column trim cover access hole.

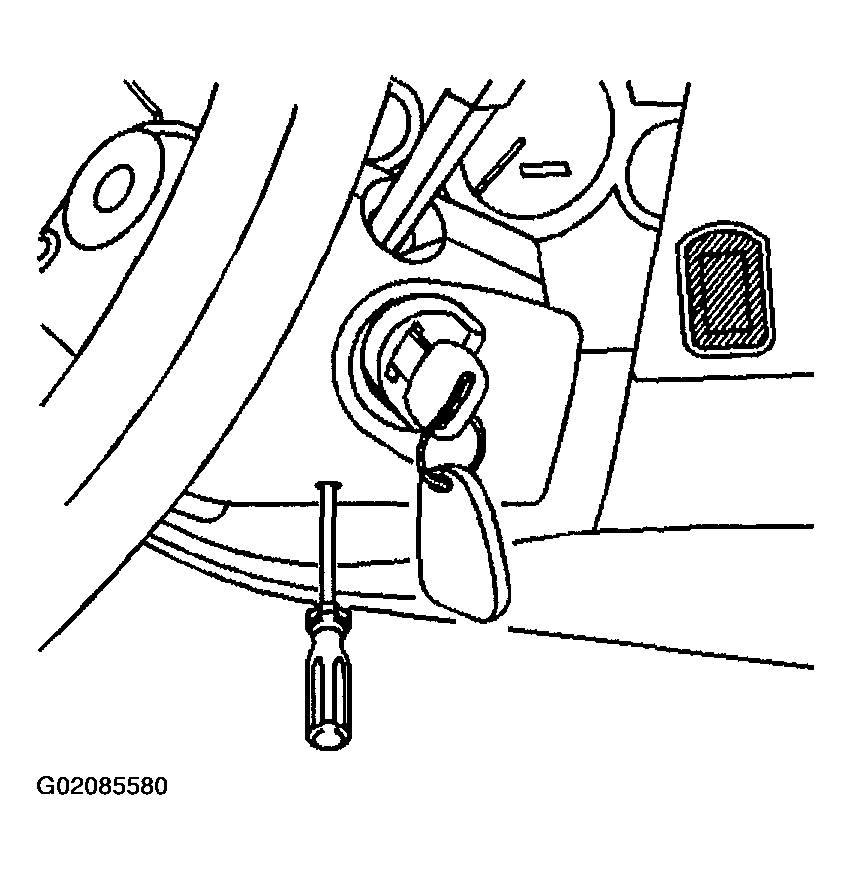

    Fig 1: Inserting Awl Into Lower Steering Column Trim Cover Access Hole
    G02085580Courtesy of GENERAL MOTORS CORP.
  4. Press in the release button using the awl.
  5. Release the ignition switch to the RUN position.
  6. Remove the ignition lock cylinder.

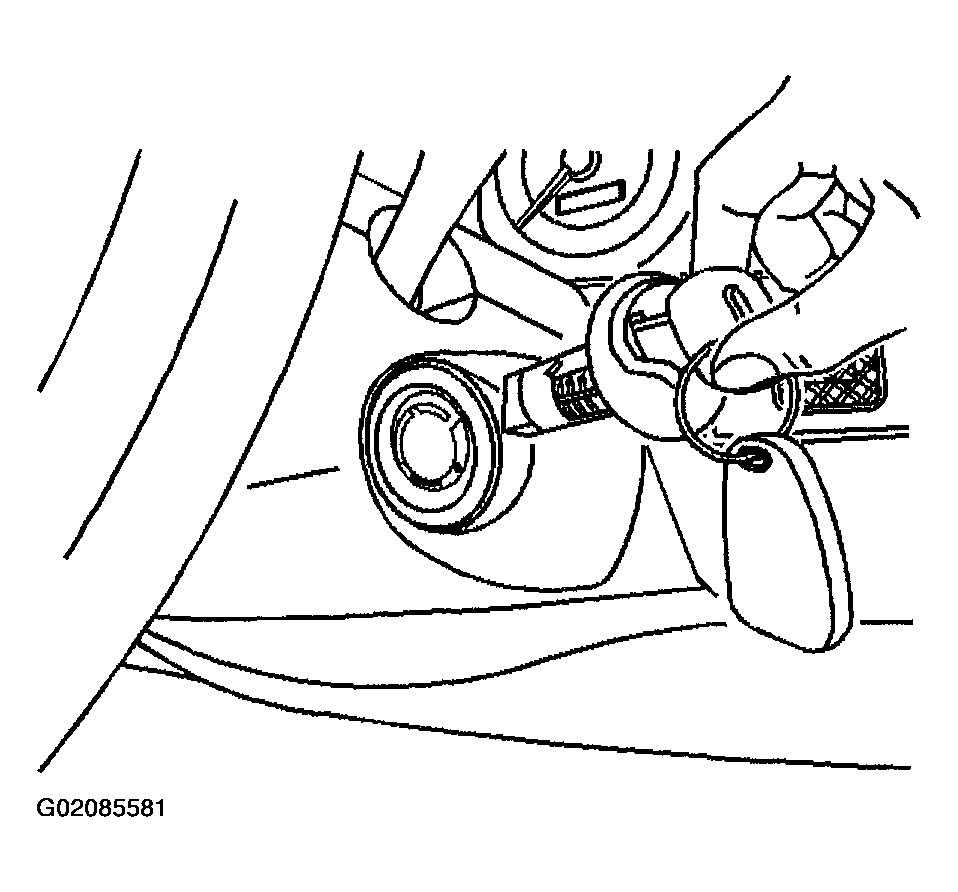

    Fig 2: Ignition Lock Cylinder
    G02085581Courtesy of GENERAL MOTORS CORP.
