Installation Procedure

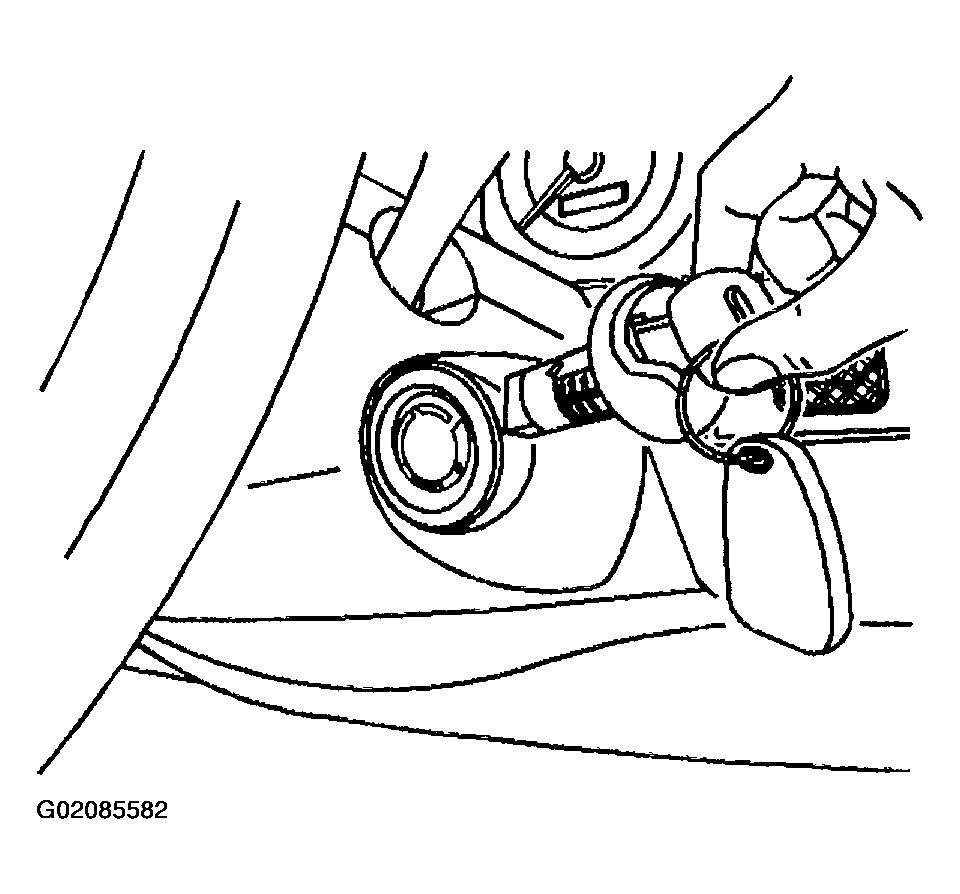

- Install the ignition lock cylinder by doing the following procedure:
- Align the positioning locking tab slot on the lock module to the positioning tab on the ignition lock cylinder.
- Push the lock cylinder in until the locking tab locks in the lock module.
- Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
