Lock System Does Not Unlock

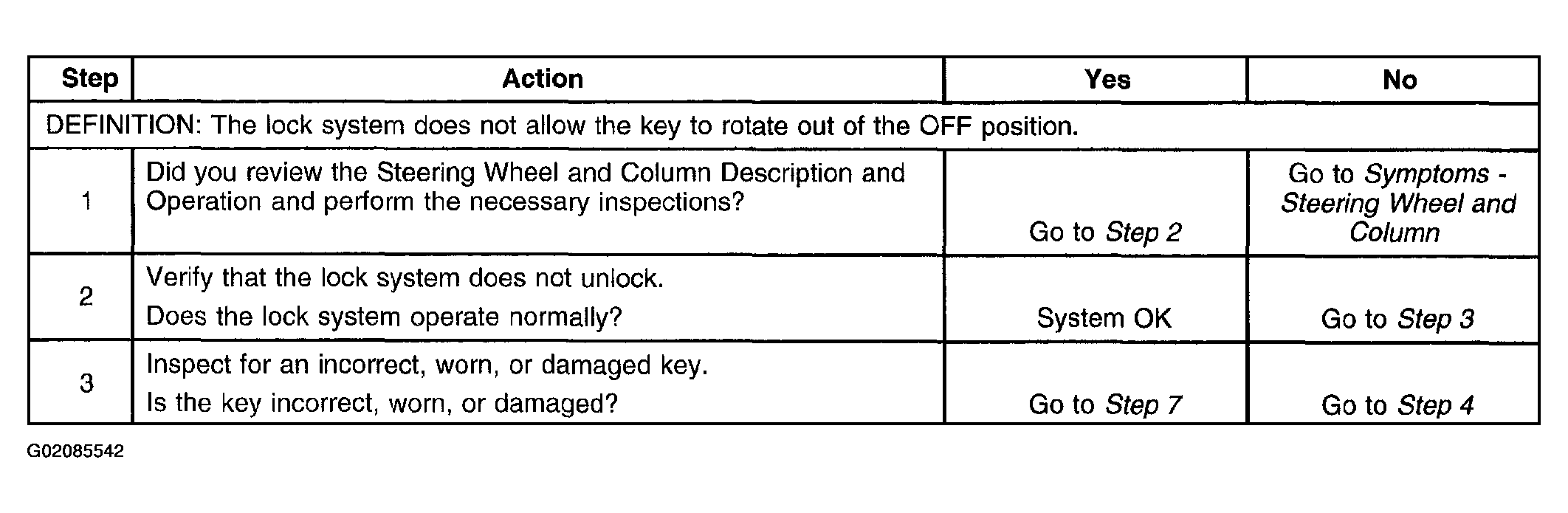

Fig 1: Lock System Does Not Unlock - Diagnostic Table (Steps 1 - 3)
G02085542Courtesy of GENERAL MOTORS CORP.

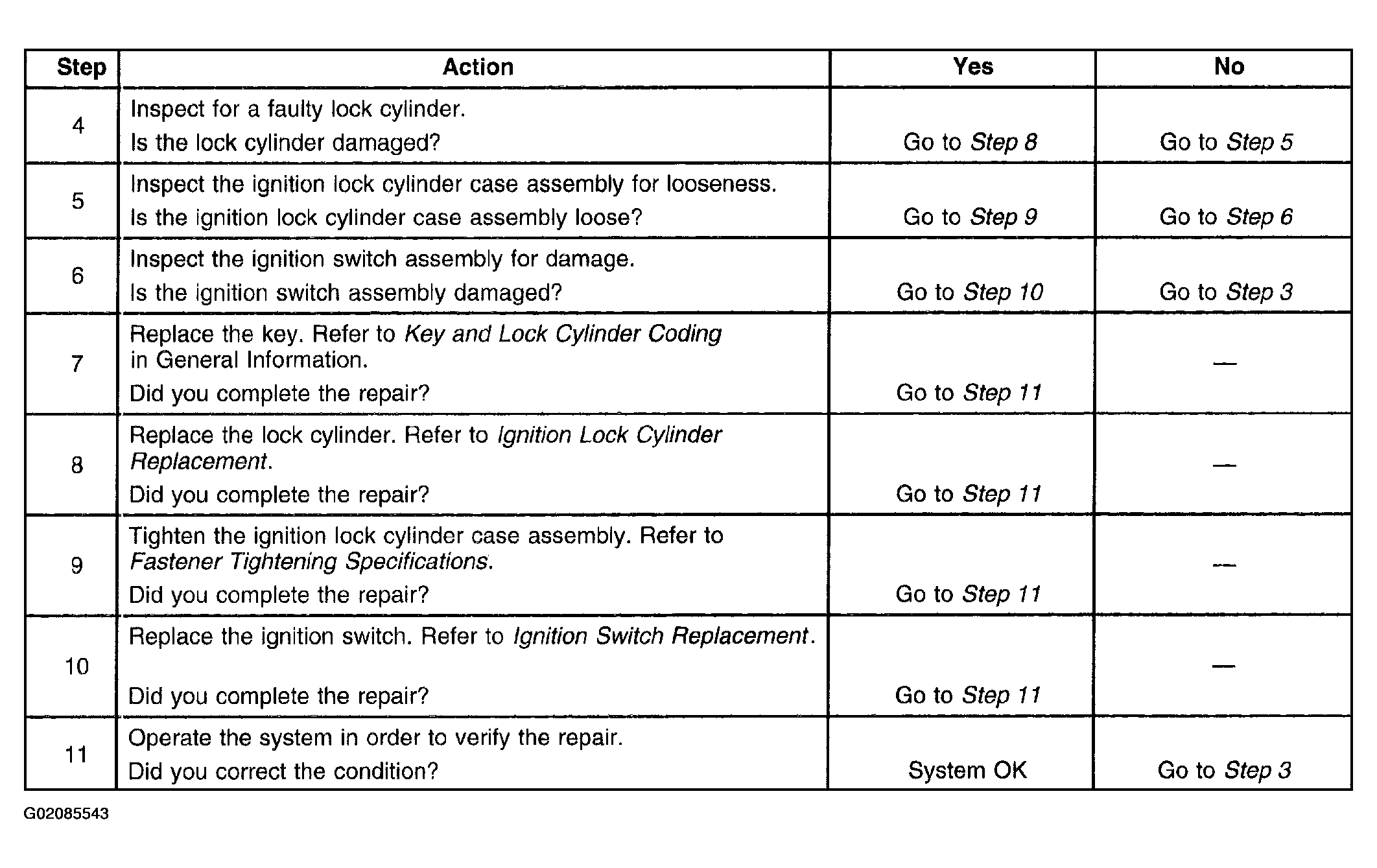

Fig 2: Lock System Does Not Unlock - Diagnostic Table (Steps 4 - 11)
G02085543Courtesy of GENERAL MOTORS CORP.
